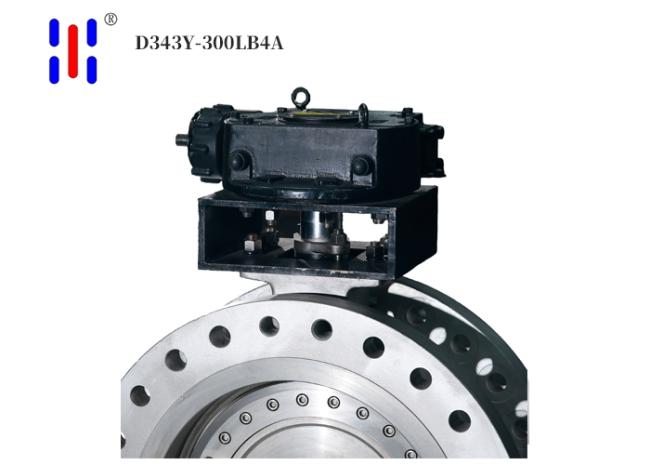

Duplex 2205 Triple Offset Butterfly Valve with Flanged Class 300 for Chemical
Duplex 2205 Triple Offset Butterfly Valve with Flanged Class 300 for Chemical
Product Features
4A Duplex Stainless Steel—Its ferritic-austenitic duplex structure delivers nearly twice the strength of 304 and vastly superior resistance to chloride ion pitting corrosion. This isn’t just an upgrade—it’s a game-changer. The valve body and disc are crafted entirely from 4A duplex steel, making them inherently resistant to chlorine. Offshore platform decks, desalination concentrate pipelines, ballast water systems, and coastal power plant cooling water—operating conditions with chloride ion concentrations as high as tens of thousands of ppm are just business as usual for this material. Carbon steel rusts through in a matter of days, and ordinary austenitic stainless steel is riddled with pitting corrosion, yet this material remains unscathed.
Product Advantages
● The hard sealing surface boasts high hardness; when exposed to sand-laden seawater, pulverized coal, or catalyst particles, it not only withstands the impact but actually becomes a tighter seal through wear.
● The flange installation offers high tolerance for misalignment, eliminating the need for luck during large-diameter pipeline construction—even with slight on-site misalignment, installation is still possible.
● The triple-offset design ensures that the sealing pressure is determined by the actuator torque, not by the spring force of elastic components. Fluctuations in medium pressure? Simply adjust the torque to maintain zero leakage.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
