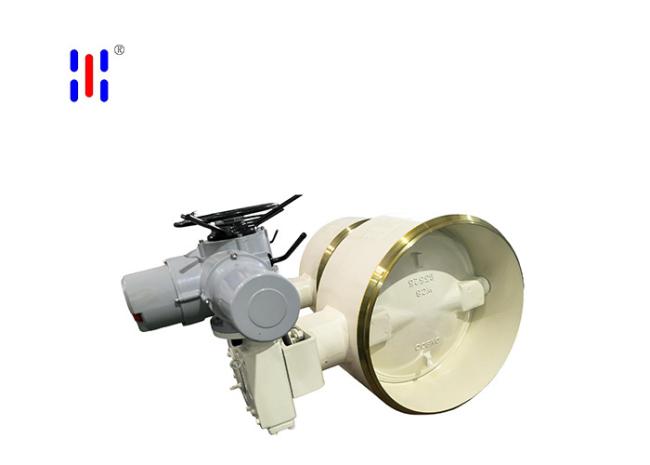

DN800 Electric Triple Eccentric Butterfly Valves PN25 Carbon Steel
DN800 Electric Wafer PN25 Carbon Steel Triple Offset Butterfly Valve Water
Product Features
WCB monoblock construction withstands high pressure; DN800 accommodates massive flow; PN25 medium-to-high pressure ensures no leakage—designed for large-diameter, non-corrosive water, steam, oil, and process gases. Leveraging carbon steel’s exceptional mechanical strength and the permanent connection of butt welding, it serves as the central hub for long-distance, zero-leakage shutoff in medium-to-high-pressure, high-flow pipelines.
Product Advantages
● The valve ends are directly butt-welded to the pipeline, eliminating flanges and gaskets to form a permanent all-metal welded seal. With no leakage points other than the stuffing box, the valve is intrinsically safe. It eliminates the need for flange gasket replacement due to aging, significantly reducing maintenance costs and meeting the standards for long-distance pipelines and high-safety-level transportation.
Equipped with an electric actuator, it supports digital, analog, and bus control, seamlessly integrating with DCS/PLC systems to enable rapid remote shutoff and precise flow regulation.
● Based on a three-dimensional eccentric geometric design, the disc immediately disengages from the seat upon opening and precisely wedges into place upon closing. Throughout the 90° rotation, the sealing surfaces experience zero friction and zero scraping. For DN800 ultra-large diameters, the operating torque is significantly lower than that of gate valves and ball valves of the same specification, substantially reducing the power requirements of the electric actuator and power distribution costs.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
