Customizable Dimension HVAC Air Filter with Low Resistance and Reusable AHU Bag Filter for Commercial Systems
| Type | HVAC Replacement Filter |
| Application | End filtration of commercial and industrial ventilation systems, air conditioning systems |
| Function | Large filtration area ,low resistance |
| Structure | GI frame +non-woven fiber cotton |
| Size | 592x592x381mm or customized |
| Filtration class | 75-80% |
| Color | White/Pink/Yellow/Green |
| Sealing Strip options | EVA |
| tual dimensions W * H * D (mm) | Number of bags (pieces) | Filter material area (m ²) | Rated air volume (m ³/h) |
|---|---|---|---|
| 592*592*635 | 8 | 6.60 | 3400 |
| 490*592*635 | 6 | 4.94 | 2850 |
| 490*490*635 | 5 | 3.50 | 2300 |
| 287*592*635 | 4 | 3.30 | 1700 |
| 592*592*550 | 8 | 5.68 | 3400 |
| 490*592*550 | 6 | 4.26 | 2850 |
| 490*490*550 | 5 | 3.02 | 2300 |
| 287*592*550 | 4 | 2.84 | 1700 |
| 592*592*381 | 8 | 3.86 | 3400 |
| 490*592*381 | 6 | 2.90 | 2850 |
| 490*490*381 | 5 | 2.06 | 2300 |
| 287*592*381 | 4 | 1.94 | 1700 |

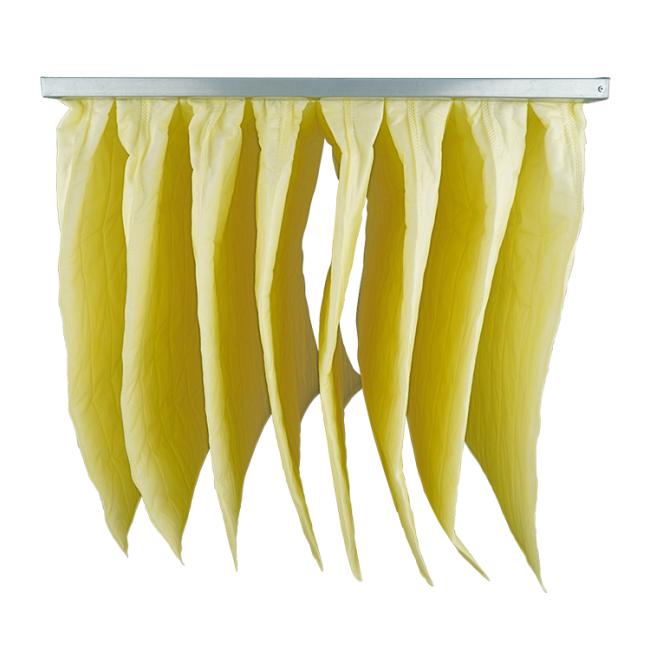

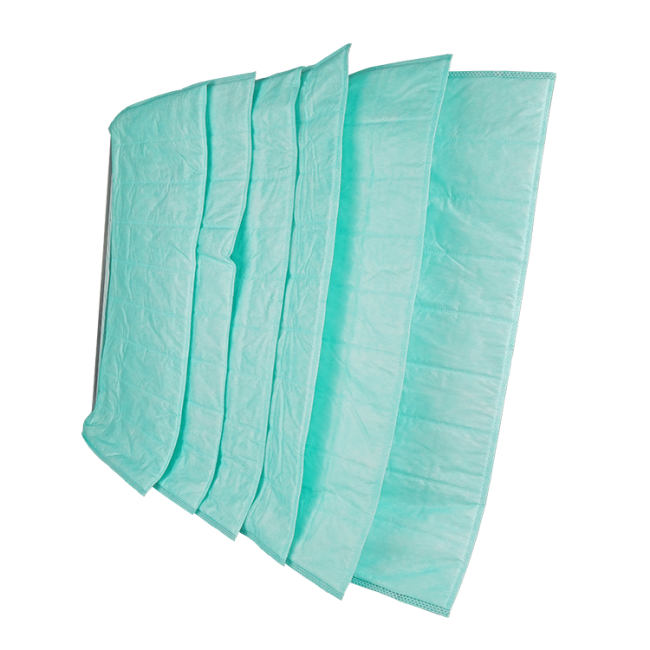

Pocket Filter/Bag Filter
The primary bag filters effectively capture large airborne particles such as dust, pollen, and hair. Utilizing synthetic fiber bags, they increase filtration area, enhancing both efficiency and airflow, making them ideal for commercial and industrial HVAC systems.The Medium Efficiency Bag Filter excels in HVAC applications, efficiently trapping dust and particulate matter. Its design maximizes air flow while maintaining effective filtration, suitable for commercial and industrial settings.
Customizable Frame
The outer frame can be customized with Aluminum alloy or Galvanized with high strength and corrosion resistance.
High Quality Filter Media
High trapping power, high dust loading and high air permeability.
-
Q:Are you a manufacturer?
A:Yes. Our company was founded in 2005
-
Q: How long is the delivery time?
A: Normally 7-25 days after receiving your payment. lt depends on the order quantity
-
Q: Can the product be customized?
A: Yes, We can produce as your requirements.
-
Q: May I have samples?
A: Yes. Sample costs can be refunded if you place formal orders in the future
-
Q: What certifications do you have?
A: Our company has passed ISO 9001,ISO 14001,ISO 45001 certification and our products have passed ROHS/REACH environmental protection testing certification.
IF you have any other questions, pls. feel free to CONTACT US. Welcome your enquiry.
