| Categories | Sensor Module for Arduino |
|---|---|
| Brand Name: | OEM |
| Model Number: | OKY3259-2 |
| Certification: | RoHS |
| Place of Origin: | Guangdong China (Mainland) |
| MOQ: | 10Piece/Pieces |
| Price: | USD3.72-4.23/piece |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100000Piece/Pieces per Day |
| Delivery Time: | 1-3 workdays after payment |
| Packaging Details: | Different package at optional: 1. Retailing Package: Crystal box 2. Bulking Packing:plastic case 3. Retailing Box package design according to your requirement( Order > 1000PCS) |
| Color: | As Picture |
| Voltage range: | 1.71 V to 3.6 V |
| N.W: | 5g |
| Delivery time: | 1-3 days |
| Condition: | Brand New and Original |
| User: | Students,Engineers etc. |
| Warranty: | 2 years |
| Factory: | Yes |
| Company Info. |
| Oky Newstar Technology Co., Ltd |
| View Contact Details |
| Product List |

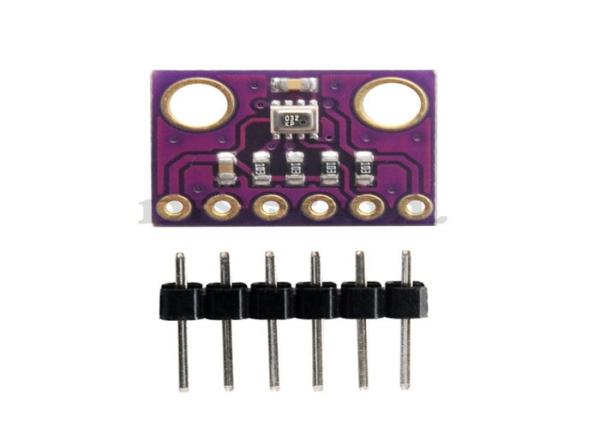

High Precision Atmospheric Pressure Sensor Module GY-BME280-3.3
Description:
*ME-BME280 is a Breakout Board with a Bosch Sensortec ME280
temperature, humidity & pressure sensor.
*Default setting of the board; single power rail Vdd=Vdd_IO (solder
link GS1), pull-ups resistors (R2, R3) 10k, protocol selector
resistor 0ohm (R1), decoupling capacitors 0.1uF on both power
supply pins Vdd & Vdd_IO.
*The board has selectable I2C address jumper (solder link GS2), I2C
pull-up resistors, 7 pin header 2.54mm, and two mounting holes
3.5mm.
Digital interface I2C (up to 3.4 MHz) and SPI (3 and 4 wire, up to
10 MHz)
Specification:
| Supply voltage VDD main supply voltage range | 1.71 V to 3.6 V |
| VDDIO interface voltage range | 1.2 V to 3.6 V |
| Operating temperature range | -40~+85 °C |
| Current consumption | 1.8 uA @ 1 Hz humidity and temperature; 2.8 uA @ 1 Hz pressure and temperature; 3.6 uA @ 1 Hz humidity, pressure and temperature; 0.1 uA in sleep mode. |
Different package at optional:
1. Retailing Package:Anti-static bag
2. Bulking Packing:Plastic Bag Package
3. Retailing Box package design according to your requirement(
Order > 3000PCS)
Circuit Diagram:
|
