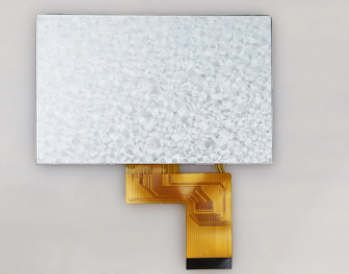

4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC

Categories IPS TFT LCD Display
Driving Ic: NV3041A-01
Luminance: 400cd/m2
View Direction: ALL o’clock
Size: 4.3 Inch
Outline Dimension: 105.46x67.10x3.00mm
Operating Temperatures: -20 to 70 degree
Contrast Ratio: 1000:1
Resolution: 480*272 pixels
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
MOQ: 1000
Price: 0.7-7USD
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4.3 Inch IPS TFT LCD Display with 400cd/m2 Luminance MCU 8/16bit SPI Interface and NV3041A-01 Driver IC

4.3 inch Custom ips tft LCD Display 480x272 Industrial Transmissive


Product Details

Resolution:4.3" IPS 480x272
Interface:MCU 8/16bit SPI 3w/4w
Driver IC:NV3041A-01
Brightness (cd/m2):400 Nit
Viewing Angle:6 O'clock
Display Area:95.04(H)x53.86(V) Mm
Contrast Ratio:1000:1


Parameter:

Screen Size4.3 inch
Number of Pixel480RGB(H)x272(V)
Display area95.04(H)x53.86(V)mm
Pixel pitch66(H)x3x198(V)mm
Pins20 pins
Outline Dimension105.46x67.10x3.00mm
Pixel arrangementRGB Vertical Stripe
Display modeNormally Black
Viewing Direction(eye)ALL
Display Color16.7M
Luminance(cd/m2)400 nit
Contrast Ratio1000:1
InterfaceMCU 8/16bit SPI 3w/4w
Back-lightLED Side-light type
Drive ICNV3041A-01
Operation Temperature-20~70
Storage Temperature-30~80



4.3-inch custom IPS TFT LCD display with a resolution of 480x272, suitable for industrial transmission scenarios, featuring the following characteristics:


Basic parameters


Size and Resolution: The diagonal size is 4.3 inches, the resolution is 480x272 pixels, the pixel arrangement is usually RGB vertical stripes, and the active area size is generally 95.04mm x 53.86mm.
Display Mode: Normal Black mode, which means the screen is black when there is no backlight and displays images when there is backlight.
Form Size: Different manufacturers' products vary. For example, some have a form size of 105.46mm x 67.10mm x 3.00mm.


Display Technology


It adopts IPS technology, featuring full viewing angle characteristics. Usually, the viewing angle can reach 80/80/80/80 degrees. When viewed from any angle, the color and image distortion is very small, ensuring good visual effects in different viewing angles. Interface type
Common interfaces include RS232, 24-bit RGB, MCU 8/16-bit SPI 3W/4W, etc. The RS232 interface can achieve stable data transmission and is suitable for industrial control scenarios; the RGB interface can provide good image display quality; the SPI interface has the advantages of fewer pins and simple connections, making it convenient for connection with microcontrollers.


Performance features


Brightness and contrast: The brightness range is wide, varying among different models, such as 350cd/m², 500cd/m², 1000cd/m², etc. Higher brightness can ensure that the screen content remains clearly visible in bright environments such as industrial settings; the contrast is usually 800:1 or 1000:1, which can make the image colors more vivid and the layers more distinct.
Operating temperature: The general operating temperature range is -20℃ to 70℃, and the storage temperature range is -30℃ to 80℃, which can adapt to certain temperature changes in industrial environments.


Touch function


Some products can be customized with touch function, with options for capacitive touch screens or resistive touch screens.


Driver chip


The driver chips used by different manufacturers are different, such as NV3041A-01, etc. The driver chip is responsible for controlling the pixel points of the display to light up, color display, image refreshing and other functions. Application scenario
Due to its high reliability, wide temperature operating range and various interface types, it is suitable for a variety of industrial transmission-related applications such as industrial automation control, medical equipment, automotive displays, and military equipment.
