PET Glass Bottle CO2 Carbonated Soft Drinks Water Filling Machine Carbonated Soft Drinks Bottling Line Price

Machine introduction :

Sunswell carbonated drink filling machine, integrating with washing, filling and capping part, it realizes full-automation in the whole process, suitable for polyester bottle and plastic bottle filling of carbonate beverage,like: soda, cola and so on.
The bottle types applicable for various parts are easily,conveniently and rapidly adjustable.It adopts new isobaric pressure filling. Compared with the machines of the same specification, the capacity of this machine is larger.Machine adopts advanced Mitsubishi programmable logic controller (PLC) to control.
The input bottle adopts air conveying device, the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.


Conveyor

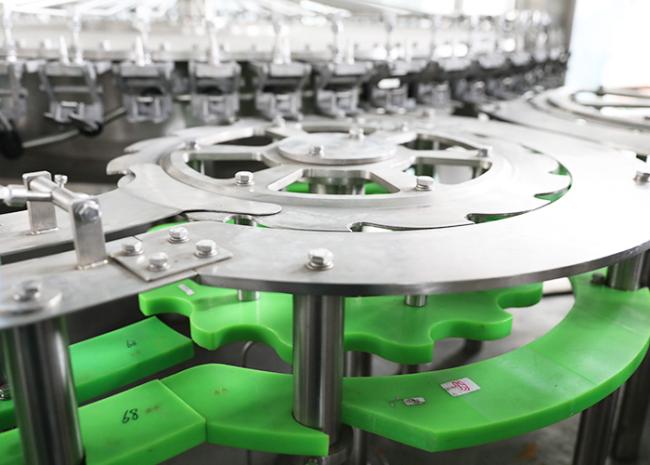

Driving plate style feeding star-wheel, it is suitable for different bottle size and no needto change the height of machine

304 stainless steel washing pumps
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

Filler
High precision filling nozzle, PLC variable signal control, ensure high filling precision Gravity filling, & filling smoothly & steadily All 304 stainless steel contact parts & liquid tank, fine polish, easy to clean No bottle no filling

capper station
Place & capping system,electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304 stainless steel construction No bottle no capping and Automatic stop when lack of bottle
