High Tensile PU Smooth Rubber Conveyor Belts Drive transmission
High Tensile PU Smooth Rubber Conveyor Belts Drive transmission
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | ||
|
DIA (mm) |
In | mm | Stretching rate | Kg | Lbs |
Hardness (A) |
Roll (m) |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 | 30 |

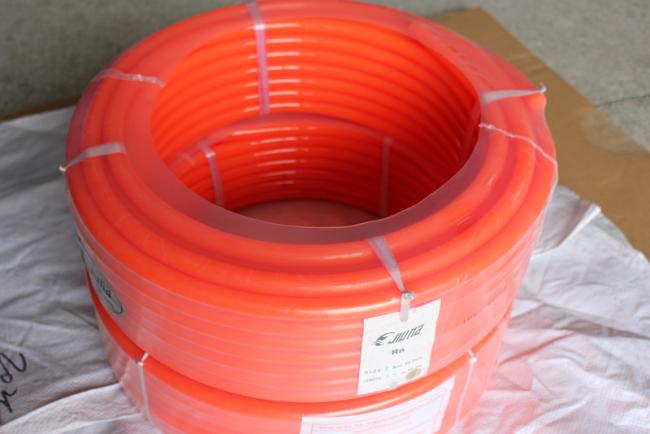

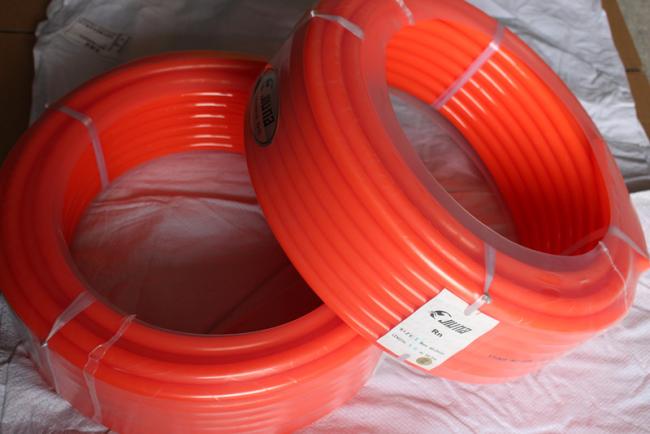

polyurethane round belt of introduction:
We offer a complete line of Polyester and Polyurethane Round belts for use in industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .
Our company specializing in the production of PU round belt,V belt,non-slip belt,wire clip,clip wire core,PU guide, stop,package edge,skirt,scraping gum,rubber roller,wheel and all kinds of non-standard special polyurethane products.TPU proudcts characteristic and main performance are: easy adhesion,good abrasion resistance,tear resistance,bending strength,tensile strength and breaking elongation,heat-resistant moderate (-30 ℃~80℃ ) ,hardness shaw (70a~98a). Smooth round belt, V belt surface finish is good, bright color with rough surface. Uniform praticles,comfortable feel.cpu pouring product characteristics and main performance are: wear-resisting.oil,acid and alkali resistance,solvent resistance,ozone resistance,aging resistance,environmental protection,non-toxic,the main products are rubber roller plastic bags,plastic core package iron roller,printing and dyeing,etc.,and can undertake various non-standard parts processing,customized non-standard products can be according to the drawing,plastic,iron core production in a body.
Service commitment:
“Quality for keeping going ,Credit to win the world”
