Smooth Rough Polyurethane Round Belt Diameter 2mm -20mm Used In Glass
Smooth Rough Polyurethane Round Belt Diameter 2mm -20mm Used In GlassProduct Description:
Details:
(1) Thermoplastic polyurethane material, easy to be melted jointed
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35c- 80c
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6) Round Belt:
Round Belt Dia. Is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.

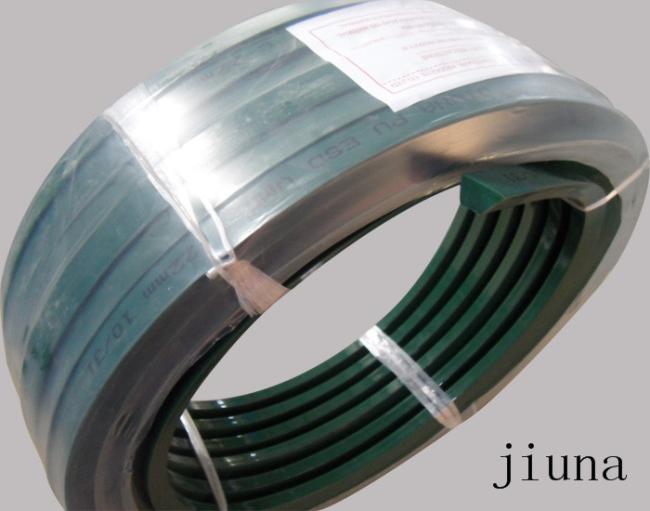

(7) V-belt
Specifications include the A, B, C, D, M, Z type
Widely used in ceramic industry, excellent wear resistance
(8) Pentagon Belt, Septangular Belt, Suppergrip belt
Specifications include A, B, C three type
(9) Hexagonal Belt
Specifications include C
(10) Parallel Belt
Including A, B two specifications
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.
(1) Thermoplastic polyurethane material, easy to be melted jointed
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35°C - +75°C
(4) Shore A hardness range 45A - 90A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
Products introduction:

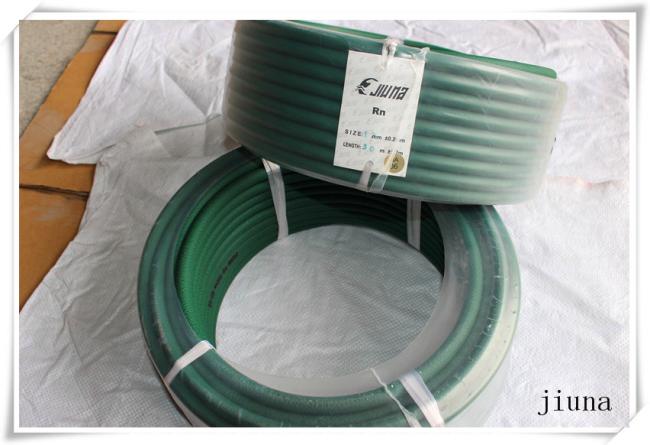

Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.
|
Items NO.Φ |
Least radius of gyration |
Stretching rate |
Maximum tensile rate |
Hardness |
Length of rolled |
||
|
DIA(mm) |
In |
mm |
% |
Kg |
Lbs |
Shore( A) |
Length of rolled |
|
2mm |
0.79 |
20 |
1.5-3% |
0.3 |
0.7 |
95 |
400 |
|
2.5mm |
0.87 |
22 |
1.5-3% |
0.4 |
0.9 |
95 |
400 |
|
3mm |
0.98 |
25 |
1.5-3% |
0.7 |
1.6 |
90 |
400 |
|
3.5mm |
1.18 |
30 |
1.5-3% |
0.95 |
2.1 |
90 |
400 |
|
4mm |
1.38 |
35 |
1.5-3% |
1.2 |
2.7 |
90 |
200 |
|
5mm |
1.57 |
40 |
1.5-3% |
2.0 |
4.3 |
90 |
100 |
|
6mm |
1.97 |
50 |
1.5-3% |
3.2 |
7.0 |
90 |
100 |
|
7mm |
2.17 |
55 |
1.5-3% |
4.1 |
9.0 |
90 |
100 |
|
8mm |
2.56 |
65 |
1.5-3% |
5.0 |
11.0 |
90 |
100 |
|
9mm |
2.95 |
75 |
1.5-3% |
6.8 |
15.0 |
90 |
50 |
|
10mm |
2.95 |
75 |
1.5-3% |
7.7 |
17.0 |
90 |
50 |
|
12mm |
3.94 |
100 |
1.5-3% |
12.2 |
27.0 |
90 |
30 |
|
15mm |
4.72 |
120 |
1.5-3% |
17.7 |
39.0 |
90 |
30 |
|
18mm |
5.71 |
145 |
1.5-3% |
25.4 |
56.0 |
90 |
30 |
|
20mm |
6.30 |
160 |
1.5-3% |
31.3 |
69.0 |
90 |
30 |
