UL797 Gi EMT Electrical Flexible Conduit Pipe Tube
Basic Info.
Product Description
UL Standard EMT Conduit Pre-Galvanized EMT Tuberia OEM
Description:
Hot Dipped Galvanized Electrical Steel EMT conduit pipe
EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration
- The main markets of EMT are Latin America, South America, America, dubai and other middle eastern countries
- Corrosion resistance
- long-lasting protection
- Interior surface free from defects so that easy to wire pulling
- 10' lenghts, with special lenght available
- steel coupling and connector produced in -house
- uniform wall thicknes
Specifications:
- Standard: 1/2"-4" EMT CONDUIT X 10' / UL 797 and ANSI C80.3
- Brand Name: TOPELE
- Color Family : Metallics
- Conduit type : Metallic
- Type : Conduit
- Flexible : No
- Length : 10 ft.
- Material : Galvanized steel / Hot-dipped Galvanized
- Size: from 1/2" to 4 "
| Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) | |
| 1. EMT Tube(Electrical metallic tubing) standard pipe | ||||||
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 | |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 | |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 | |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 | |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 | |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 | |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 | |
| 3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 | |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 | |
| 4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 | |

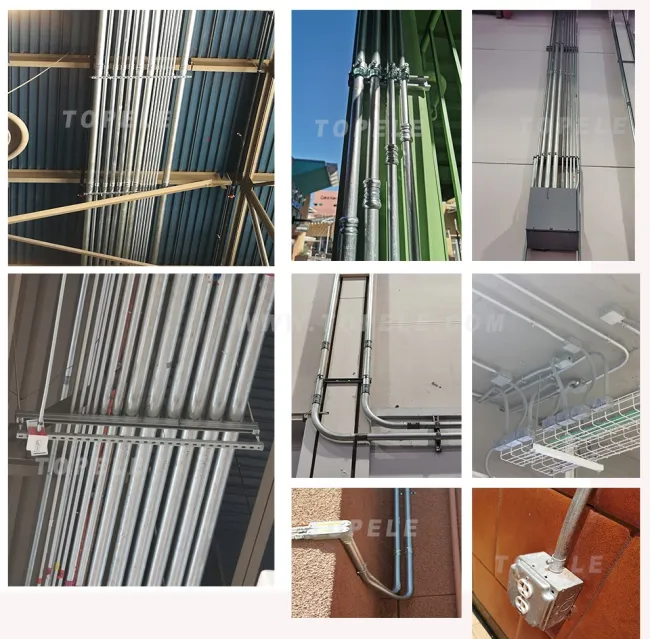

Applications:
TOPELE EMT CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
From thickness, TOPELE have standard and thiner for customer choose,the thickness can also be customized according to the customer's requirements.
From the surface treatment, TOPELE have hot dipped Galvanized (HDG) and the Pre- galvanized.
