Strut slotted galvanized support system u shaped channel 41X 41MM


Descrition:

TOPELE  STRUT CHANNEL
Type: plain / slotted strut channel
Size  specification : 41X41MM, 41X21MM
Finish : Black, Pre-galvanized and Hot Dipped Galvanized
Thickness : 1.5mm-3.0mm
Length: 3 meters, other length could be available.
Field names: Strut, Galvanized strut, strut channel. c channel

Applications:
TOPELE SLOTTED STRUT CHANNEL
1. used to support the steel structure system which can save great manpower cost and install easily without any weldments.
2.Connected Unistrut channels in different lengths and sizes with all kinds of steel sheet bending acceossries an fasteners
3.Unistrut  Channel with Bracket The support and restraint brackets are adjustable in 3 directions with Unistrut Channel
4.is used to support conduits, fixture, and ventilation systems from
structural beams and other support members.

Specifications:

TOPELE slotted STRUT CHANNEL

kind : plain or slotted strut channel
Finish: Black, Pre-galvanized and Hot Dipped Galvanized
Thickness: 1.5mm-3.0mm
Length: 3 meters, other length could be available.

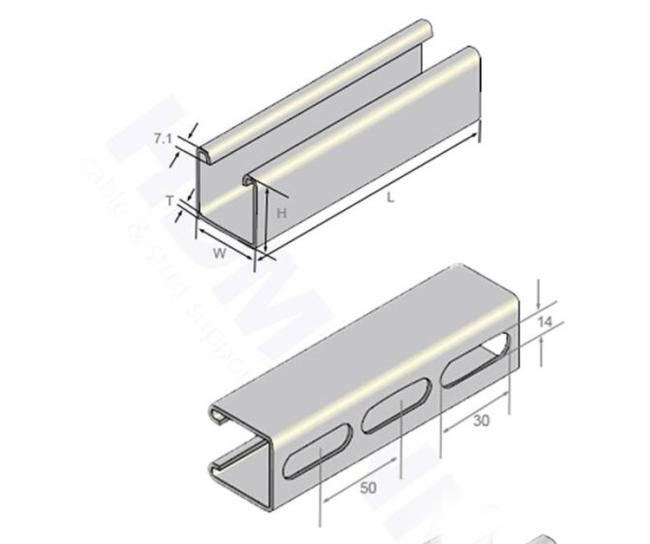

Available Size:
41X41mm, 41X21mm      41x25mm, 41x35mm     41x62mm, 41x82mm
41x41mmx2, 41x25mmx2  41x35mmx2, 41x41mmx2   41x62mmx2, 41x82mmx2



Competitive Advantage:

TOPELE  SLOTTED STRUT CHANNEL

1. provides an economical solution for electrical,mechanical and industrial supports
2. is designed with many timesaving features.
3..Strut channels and fitting can be taken apart for reuse as quick as they were assembled,producing substantial savings in time and labor,yet they provide the strength of welded construction.
4.They are fully adjustable and reusable,with a complete line of channels ,fittings and accessories for multi-purpose applications.


Topele’s strut channel comes in a variety of depths, widths and finishes allowing the installer to hang of support
many different conduits and fixtures from walls and overhead structural members.
