120-135W LED Power Supply with Adjustable DC Output Voltage and DIN Rail Mountable
Price:
Negotiate
MOQ:
10
Delivery Time:
7-10 working days
Brand:
MEAN WELL
Product Description
120-135W LED Power Supply with Adjustable DC Output Voltage and DIN Rail Mountable
Key Features
- Ultra slim design with 105mm (6SU) width
- Universal input 85-264VAC (277VAC operational)
- No load power consumption <0.3W
- Isolation class II
- DC output voltage adjustable
- Protections: Short circuit / overload / over voltage
- Cooling by free air convection
- DIN rail TS-35/7.5 or 15 mountable
- Over voltage category III
- LED indicator for power on
Product Description
The HDR-150-12 is an economical ultra slim 150W DIN rail power supply, designed for installation on TS-35/7.5 or TS-35/15 mounting rails. Featuring a plastic housing that effectively prevents electrical hazards, this power supply achieves up to 89% working efficiency and operates in ambient temperatures from -30℃ to 70℃ with air convection. Complete protection functions and relevant certifications (IEC62368-1, UL62368-1, UL61010, BS EN/EN61558-2-16) make the HDR-150 a competitive power solution for household and industrial applications.
Technical Specifications
| Model No. | HDR-150-12 |
|---|---|
| Power | 120-135W |
| Input Voltage | 85-264VAC/120-370VAC |
| Input Efficiency | 89% |
| Output Voltage | 12V |
| Output Current | 10.2A/11.3A |
| Warranty | 3 years |

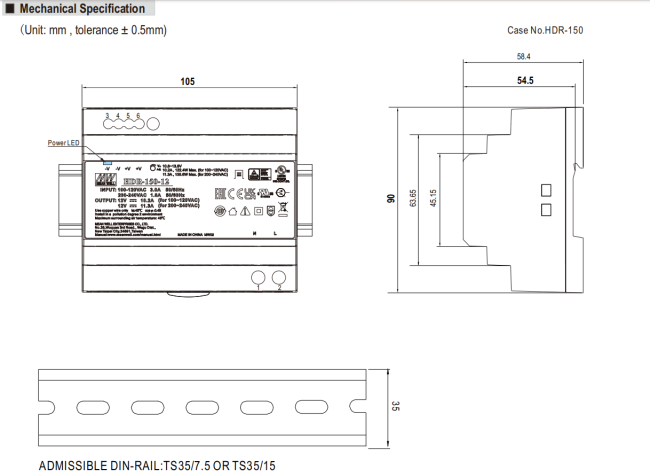

| Dimensions | 105x90x54.5mm |
| Packing | 0.31kg, 32pcs/11kg/1.0CUFT |
| MODEL | HDR-150-12 | HDR-150-15 | HDR-150-24 | HDR-150-48 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V |
| RATED CURRENT | 115VAC: 10.2A 230VAC: 11.3A | 115VAC: 8.55A 230VAC: 9.5A | 115VAC: 5.31A 230VAC: 6.25A | 115VAC: 2.72A 230VAC: 3.2A | |
| RATED POWER | 115VAC: 122.4W 230VAC: 135.6W | 115VAC: 128.3W 230VAC: 142.5W | 115VAC: 127.4W 230VAC: 150W | 115VAC: 130.6W 230VAC: 153.6W | |
| RIPPLE & NOISE (max.) | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 12ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC (277VAC operational) 120 ~ 370VDC (390VDC operational) | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 89% | 89.50% | 90.50% | 90.50% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.6A/230VAC | ||||
| INRUSH CURRENT | COLD START 35A/115VAC 70A/230VAC | ||||
Product Details
Shipping & Delivery Informations
| DHL/UPS/TNT/FEDEX | 4-5 working days |
|---|---|
| EMS | 10-15 working days |
| HK Post Air Mail Register | 15-18 working days |
| Trade Terms | FOB|EXW|CIF|CNF |
| Sample Availability | YES |
| Standard Delivery Time | 3-4 working days |
Applications
- Street lighting systems
- Highway LED lamps
- Tunnel lighting
- Square and area lighting
- Road and parking spot lamps
- Track lighting fixtures
- Landscape and scenery area lighting
- Retail and commercial lighting
- High luminous flux applications
For any requests or questions, please feel free to contact us.
