Outdoor Single mode / Multimode optical fiber patch cord with GYTA Fiber Cable
Price:
Negotiable
MOQ:
1000
Delivery Time:
in 2-4 days
Brand:
TTI Fiber
Product Description

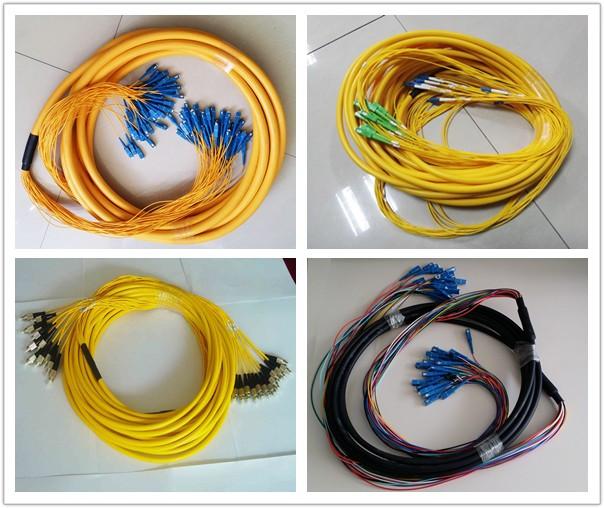

Outdoor Single mode / Multimode optical fiber patch cord with GYTA Fiber Cable
Quick Details:
- Type: GYTA Fiber Optic Patch Cord
- Mode: Single mode and Multimode
- Ferrule End-face: PC, UPC, APC
- Cable core: 2core, 4core, 6core...customized
- Cable Fan-out: 0.5M, 1M
- Cable Fan-out diameter: 0.9mm, 2.0mm, 3.0mm
Description:
Outdoor cable includes 2~144core bare fiber inside. The fan-out could be 0.9mm, 2.0mm and 3.0mm. And the fan-out cable length is 0.5M or 1M.
Features:
- High tensile coefficient and stress coefficient
- Convenient for application, highly security
- Application without damage to cable
- Manufacture without damage to cable
- Cost cutting for maintenance
Applications:
- Telecommunication networks
- Fiber optic communication networks
- CATV, LAN, MAN, WAN, Test &Measurement
- Optical access network
Specification:
| Item | Single mode | ||
| Ferrule End-face | PC | UPC | APC |
| Insert attenuation | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return loss | ≥45dB | ≥50dB | ≥55dB |
| repeatability | ≤0.1dB | ≤0.1dB | ≤0.1dB |
| Operation temperature | -20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU) | ||
| Outer diameter | 1.6mm | ||
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
Shipping:
- Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
- Airport to Airport: by air
- Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
