Outdoor LAN Communication Fibre Optic Lead , Fiber Optic Network Cable GYFTY
Price:
Negotiable
MOQ:
1000
Delivery Time:
5-8 working days
Brand:
TTI Fiber
Product Description

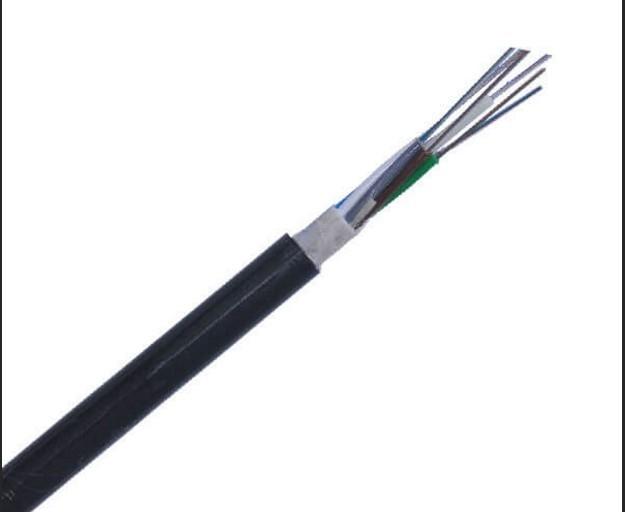

Outdoor LAN Communication Fiber Optical Cable Non Armoured Non Self-Supporting Aerial GYFTY Cable
Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
UV and waterproof design.
Applications:
Inter building voice or data communication backbones.
Inter building voice or data communication backbones.
Installed as aerial/lashed, ducts, underground conduits.
Specification
| No. of fiber | 6F | 12F | 24F | 36F | 48F | 72F | 96F | 144F |
| No. of tube | 1 | 2 | 4 | 3 | 4 | 6 | 8 | 12 |
| Fiber per tube | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| No. of filler rod | 4 | 3 | 1 | 2 | 1 | 0 | 0 | 0 |
| Tube diameter (±0.1mm) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Thickness of loose tube (±0.05mm) |
0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Nom. out diameter (±0.2mm) | 8.6 | 8.6 | 8.6 | 8.6 | 8.6 | 9.2 | 10.8 | 13.4 |
| Nom. jacket thickness (±0.1mm) |
1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.7 | 1.7 |
| Loose tube | Material | PBT | Color | Standard spectrum | ||||
| Filler rod | Material | PP | Color | Black | ||||
| Tube filling | Material | Filling compound | ||||||
| Central strength member | Material | FRP | Diameter | 1.4mm (6-48F) | ||||
| 2mm (72-144F) | ||||||||
| Layer | PE (for 96F -144F only) | |||||||
| Water blcoking system | Material | water blocking tape | ||||||
| Rip cord | Type | 1110*2 | ||||||
| Out sheath | Material | MDPE | Color | Black | ||||
