FTTX 12 24 Core GYTY53 Single Mode Fiber Optic Cable
12 24 Core Optical Fiber Cable GYTY53 Single Mode Fiber Optic Cable
1. Specification:
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and
fillers) are stranded around the strength member into a compact and circular core. After the cable core is filled with the filling
compound to protect it from water ingress, the cable is completed with a PE sheath.
2. Feature:
* Metallic(non-metallic) strength member;
* Loose tube stranded;
* Gel silling;
* Polyethylene sheath outdoor cable for communication pirpose;
* Transportation Temp: -40℃~+70℃;
* Installation Temp: -5℃~+50℃;
* Operation Temp: -40℃~+70℃
* Permisson bent radius:
* Static: 10D; Dynamic: 20D
3. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| (+20℃) | @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelengthλcc | ≤1260nm |

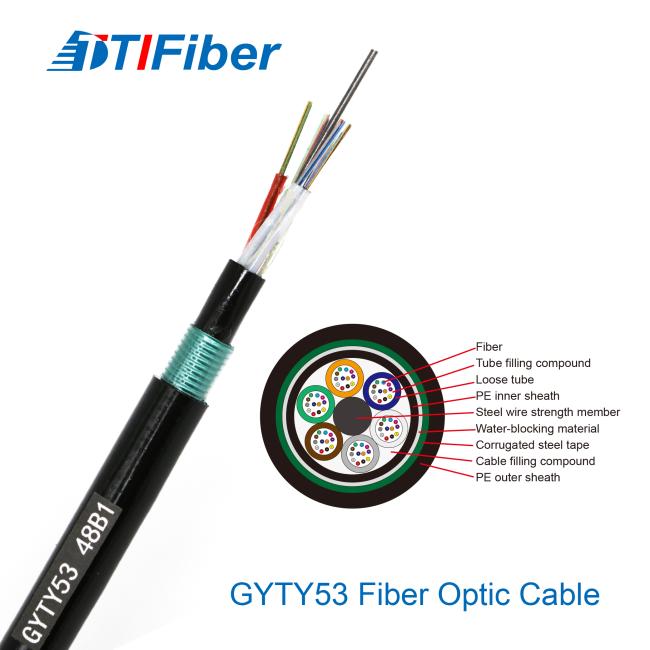

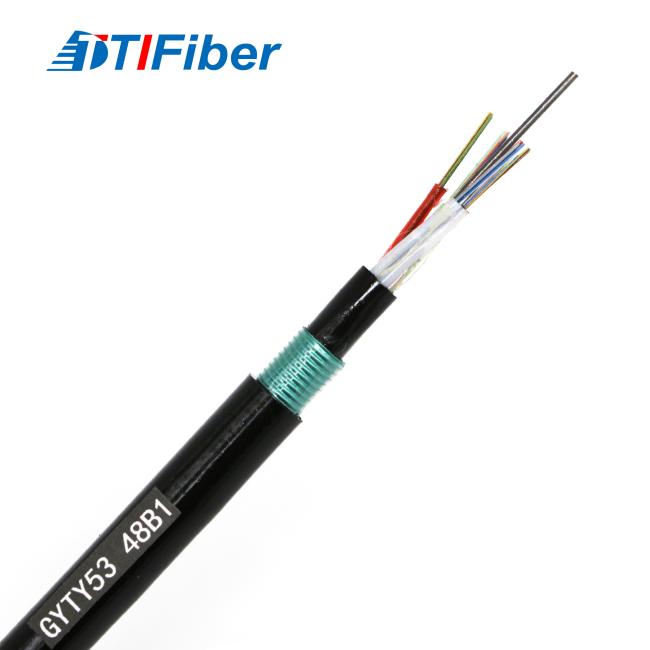

4. Product Picture:
5. FAQ:
1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.
2. Do you accept OEM,ODM?
Yes, we accept them .
3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.
4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.
5. What's the Payment?
We accept all online payments .
