COld Rolled Stainless Steel Angle Bar 420
Cold rolled stainless steel angle bar 420 with 2B surface
| Commodity | stainless steel angle bars |
| Standard | AISI ASTM JIS GB BS |
| Grade | 201 202 301 302 303 304 304L 310 316 316L 321 410 430 2520 etc |
| Tolerance | length≤+4mm,straightness≤4mm/m,angle≤90°±2° |
| Thickness | 3-24 mm |
| Equal Angle | Size: 20-200mm, Thickness: 3.0-24mm, Weight: 0.597-71.168kg/m |
| Unequal Angle | Size:25*16-200*125mm, Long Side: 25-200mm, Short Side: 16-125mm,Thickness: 3.0-18mm, Weight: 1.687-43.588kg/m |
| Surface | Hot-rolled,or according your request |
| Technics | hot-rolled, hot-forged peeled,grinding |
| Length | 6m,4m or as your requirement |
| Delivery Detail | Normally according to the order quantity or upon negotiation |
| Payment | L/C at sight or 30% T/T in advance. |
| Application |
Stainless steel bar applies to petroleum, chemical industry, electric power, boiler, high temperature resistant, low temperature resistant, corrosion resistant seamless steel bar is widely used. |
| Packing | Standard export packing or according to your request. |
| Delivery Time | Within 10 days after receive 30% advance or within 10 days after L/C issuing date. |
Tolerance of Different Grades of 420 Stainless Steel Angle Bar
| Grade | Specification |
Side Allowble
Deviation |
Thickness | |||||||||
| 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | |||
| Tickness Allowble Deviation | ||||||||||||
| 2.5# | 25×25 | ±1.5 | ±0.5 | ±0.5 | ±0.5 | / | / | / | / | / | / | / |
| 3# | 30×30 | ±2.0 | ±0.5 | ±0.5 | ±0.5 | ±0.5 | / | / | / | / | / | / |
| 4# | 40×40 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / | / |
| 5# | 50×50 | ±2.0 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / | / |
| 6# | 60×60 | ±3.0 | / | ±0.6 | ±0.6 | ±0.6 | ±0.6 | ±0.6 | / | / | / | / |
| 6.5# | 65×65 | ±3.0 | / | / | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 | / | / | / |
| 7# | 70×70 | ±3.0 | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 7.5# | 75×75 | ±3.0 | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 8# | 80×80 | ±3.0 | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.7 | ±0.7 | / | / |
| 9# | 90×90 | ±3.0 | / | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.8 | ±0.8 | ±0.8 |
| 10# | 100×100 | ±4.0 | / | / | / | / | ±0.7 | ±0.7 | ±0.7 | ±0.8 | ±0.8 | ±0.8 |

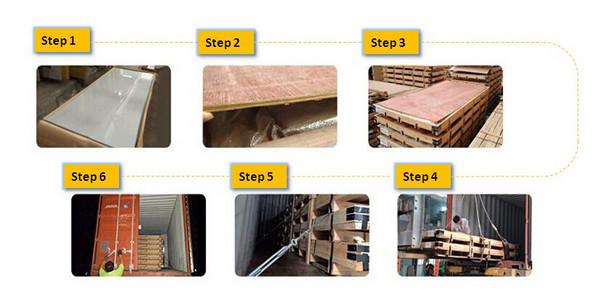

Packaging
| Packing details | 800 Ton/Tons per Day Export standard package :bundled wooden box or be required Port:shanghai |
| Delivery Time | 15 working days |
| Payment Terms | L/C ,T/T , western union , paypal , alipay |
| Shipping | DHL , UPS , FEDEX , TNT , EMS , by air , by sea , China post , any way you think is suitable |
Chemical Composition
| GRADE | C | Si | Mn | P | S | Ni | Cr | Mo | YP(Mpa) | TS(Mpa) | EL(%) |
| MAX | MAX | MAX | MAX | MAX | MAX | MIN | MIN | MIN | |||
| 310S | 0.08 | 1.50 | 2.00 | 0.045 | 0.03 | 24.00-26.00 | 19.00-22.00 | - | 205 | 515 | 40 |
Features
Terms:
1) Loading Port: Shanghai or Nantong
2) Delivery term: FOB,CFR, CIF
3) Delivery lead time: 15 working days after received deposit.
4) Payment term:30% by T/T as deposit., balance will be paid by T/T ,
5) Quality assurance: Mill Test Certificate is supplied with shipment, third Party Inspection is acceptable
