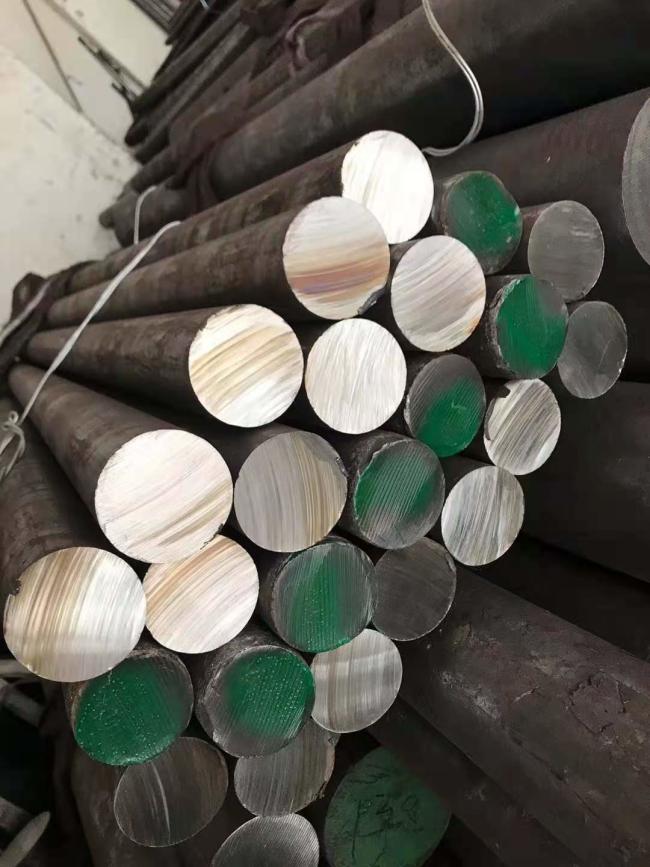

AISI 329 Size 4,5" Length Stainless Steel Solid Round Bar
Stainless Round Bar AISI 329 Size 4,5" Length 329 Stainless Steel Round Bar | AISI 329 Bar
329 Stainless Steel Round Bar Specification
| Standards | Designation |
|---|---|
| ASTM | A 276 |
| Length | Diameter |
|---|---|
| 3 – 500mm | 2-12m |
| Type | Certification |
|---|---|
| 329 Stainless Steel Round Bar | ISO 9001:2008 |
Below you will find a brief overview of a number of stainless steel bar specifications. If you do not see a specification listed, please contact us.
| BS | JIS | IS | DIN | ASTM | |
|---|---|---|---|---|---|
| Semi Free Cutting Steel | 15AM/8M | SMn433H,SUM 41 |
13S25/ 40C10S 18/40Mn15S12 |
— | 1137,1140 |
| Free Cutting Steel | EN-1A EN-1A L |
SUM-23 SUM-24 L |
11C10S25 —— |
9SMn30 11SMnPb30 |
1212/ 1213 12L15 |
Stainless Steel Bar Specifications |
|||
|---|---|---|---|
ASTM A276 |
This specification encompasses cold-finished or hot-finished bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes, such as angles, tees, and channels in the more commonly used types of stainless steels. | ||
ASTM A479 |
This specification includes cold and hot finished stainless steel bars, including rounds, squares, and hexagons, and hot-rolled or extruded shapes such as angles, tees, and channels. | ||
ASTM A484 |
This specification includes wrought stainless steel bars, shapes, forgings, and billets or other semi-finished materials, except wire, for forging. The materials are available in four types of conditions. | ||
ASTM A582 |
This specification includes cold or hot finished bars, which are suitable for machining processes. This specification includes rounds, squares, and hexagons, from common types of stainless free-machining steels. | ||
ASTM B473 |
This specification includes nickel alloy bar & wire, which can be produced in a solution-annealed condition, stabilized-annealed condition, or annealed condition. | ||
Our Grades :
AISI:
201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51
DIN:
WNR1.4301, WNR1.4305, WNR1.4306, WNR1.4307, WNR1.4401, WNR1.4404, WNR1.4571, WNR1.4541, WNR1.4828, WNR1.4841, WNR1.4845, WNR1.4449, WNR1.4438, WNR1.4310, WNR1.4550, WNR1.4541, WNR1.4878, WNR1.4006, WNR1.4005, WNR1.4021, WNR1.4028, WNR1.4016, WNR1.4104, WNR1.4105, WNR1.4057, WNR1.4542, WNR1.4462
Useful information of 329 Stainless Steel Round Bar
329 Stainless Steel Round Bar Chemical Composition
|
AISI ASTM
|
EN DIN
|
C % Max
|
Mn % Max
|
Si % Max
|
S % Max
|
P % Max
|
Cr % Max
|
Ni % Max
|
Mo % Max
|
Others %
|
|
329
|
1.4401
|
0.08
|
2.00
|
1.00
|
0.030
|
0.045
|
16.00-18.00
|
10.00-14.00
|
2.00-3.00
|
-
|
329 Stainless Steel Round Bar Physical Properties
| DENSITY (G/CM 3) |
8.0
|
| DENSITY (LB/IN 3) |
0.289
|
| MELTING POINT (°C) |
1400 – 1455
|
| MELTING POINT (°F) |
2550 – 2650
|
329 Stainless Steel Round Bar Mechanical Properties
Tensile Strength : Unit – ksi (MPa) , Minimum
Yeild Strength : 0.2 % Offset , Unit – ksi (MPa) , Minimum
Elongation : in 2″, Unit : % , Minimum
Hardness : Rockwell , Maximum
| CONDITION & SIZE | TENSILE STRENGTH | YEILD STRENGTH | ELOGNATION | HARDNESS |
|---|---|---|---|---|
|
SS 329
|
75 (515)
|
30 (205)
|
35
|
90
|
