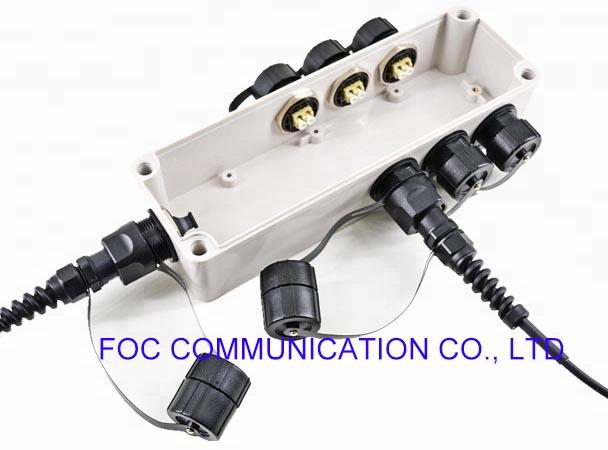

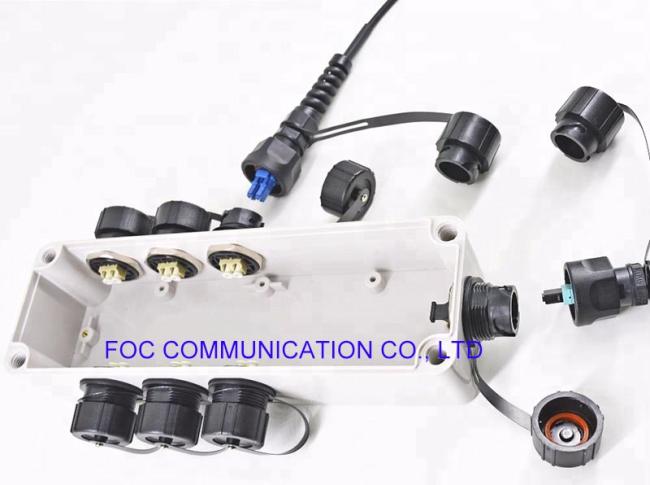

Mini LC ODVA MPO Optitap Fiber Optic Termination Box
Outdoor IP67 Waterproof Mini LC/ODVA MPO/Optitap Connector Box
IP67 Waterproof box, multiport fiber terminal, acess fiber terminals. Multiport terminal solutions for remote radio optical connectivity inn fiber-to-the-antenna (FTTA) applications. The fiber optic cable assemblies create the fiber optic link between the remote radio unit and a tower-top consolidation terminal.
IP67 waterproof box is designed to exceed the requirements of ODVA, the enclosure meet IP67 environmental sealing ratings and are the ideal choice for a low cost/easy to use solution in Industrial, Fiber to the Antenna (FTTA), or any other harsh environmental applications.
Features
- Insertion loss: SC/LC≤0.3dB, MPT/MPO≤0.5dB, Return loss: ≥50dB.
- Tensile strength: > 50 N
- Job stress: 70 kpa to 106 kpa;
- Using the temperature: - 40 ~ + 75 ℃
- Relative humidity: ≤85% (+ 30 ℃).
- Protection grade: IP67
- Internal inventory redundant optical fiber, convenient in operation and maintenance.
- Especially suitable for the use of multi-storey and high-rise tenants, easy to install, easy to install.
- Material: ABS new resistance fuel, quality assurance, the flame retardant performance accord with
standard of communication industry, flame retardant grade UL94V - level 0 - Suitable adapter : MIni-SC, H connector-SC, ODVA-LC,ODVA-MPO,ODVA-MPT.
- Structure: open type
- Color: grey (color can be customized)
- Sealing way: TPE seals
- Installation method: overhead, hanging.
- Size (H*W*D)mm: 250* 80*70mm
Specifications
| Item | Unit | Parameter | ||||
| MPO/MTP Connector | — | Standard SM MT Ferrule | Low Loss(Elite) SM MT Ferrule | Standard MM MT Ferrule | Low Loss MM MT Ferrule | |
| Insertion Loss | Typical | (dB) | 0.35 | 0.20 | 0.35 | 0.20 |
| Maximun | (dB) | 0.75 | 0.35 | 0.60 | 0.35 | |
| Return Loss | (dB) | ≥60 for APC (8 Angle Polish) | ≥20 for PC | |||
| (dB) | ≥50 for PC | — | ||||
| Male/Female | (dB) | Male: With Pins, Female: Without Pins | ||||
| Tensile Strength | (dB) | ≤0.3 (Max 66N) | ||||
| Vibration | (dB) | ≤0.3 (10 ~ 55Hz) | ||||
| Thermal Cycle | (dB) | ≤0.3 (-40 ~ 75℃, 21Cycles) | ||||
