0.1mm - 0.5mm H63 / H65 Flat Brass Wire Customized Length For Wire Ring / Loop

Price Negotiable

Price: Negotiated price

MOQ: 50kg

Delivery Time: 25-30 DAYS

Brand: Tankii

Product Description

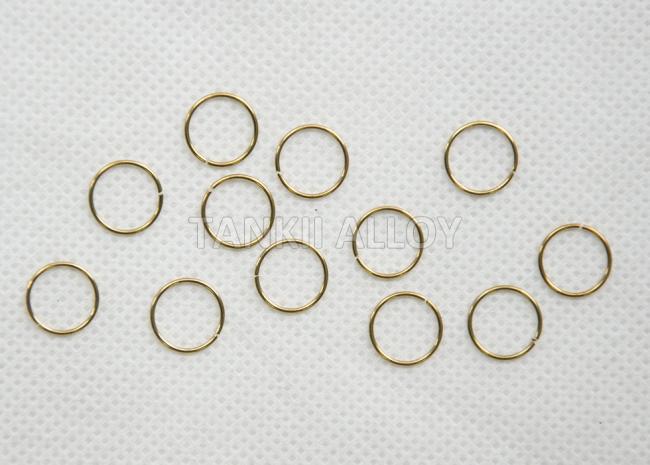

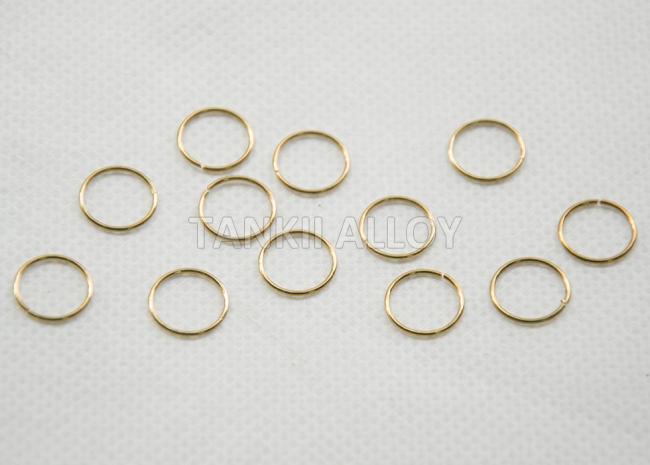

0.1mm-0.5mm H63/ H65 Brass Wire/ Flat Wire for Wire Ring/ Loop

USAGE
Used in a lot of deep-drawability parts, such as springs, and machine parts, zipper, etc.

THE MAIN CHARACTERISTICS
With excellent machinability, cold plasticity, hot plasticity, free cutting and resistance to corrosion, it is easy to joint and braze.

Temper
M, Y1, Y2, Y

Production Range
Thickness: 0.6mm - 2.0mm
Width: 3mm - 10mm

Specification

Material:
- 65% copper and 35% zinc.
- 70% copper and 30% zinc.
- 80% copper and 20% zinc.
- 85% copper and 15% zinc.
- 90% copper and 10% zinc.
Wire shape: round, half-round, flat.
Package type: spool brass wire, coil brass wire, cut brass wire (straight or corrugate).
Color: golden.
Length can be customized.

Chemical Composition

Alloy Grade	Cu	Pb	Fe (max)	Zn	Impurity Total
H70	68.5 - 71.5%	0.03%	0.1%	Remain	0.3%
H68	67.0 - 70.0%	0.03%	0.1%	Remain	0.3%
H65	63.0 - 68.5%	0.09%	0.07%	Remain	0.45%
H63	62.0 - 65.0%	0.08%	0.15%	Remain	0.5%
H62	60.5 - 63.5%	0.08%	0.15%	Remain	0.5%

	SWG		BWG		BG		AWG

8	0.16	4.046	0.165	4.191	0.157	3.988	0.1285	3.264
9	0.144	3.658	0.148	3.759	0.1398	3.551	0.1144	2.906
10	0.128	3.215	0.134	3.404	0.125	3.175	0.1019	2.588
11	0.116	2.946	0.12	3.048	0.1113	2.827	0.0907	2.305
12	0.104	2.642	0.109	2.769	0.0991	2.517	0.0808	2.053
13	0.092	2.337	0.095	2.413	0.0882	2.24	0.072	1.828
14	0.08	2.032	0.083	2.108	0.0785	1.994	0.0641	1.628
15	0.072	1.829	0.072	1.829	0.0699	1.775	0.0571	1.45
16	0.064	1.626	0.065	1.651	0.0625	1.588	0.0508	1.291
17	0.056	1.422	0.058	1.473	0.0556	1.412	0.0453	1.15
18	0.048	1.219	0.049	1.245	0.0495	1.257	0.0403	1.024
19	0.04	1.016	0.042	1.067	0.044	1.118	0.0359	0.912
20	0.036	0.914	0.035	0.839	0.0392	0.996	0.032	0.812
21	0.032	0.813	0.032	0.831	0.349	0.887	0.0285	0.723
22	0.028	0.711	0.028	0.711	0.03125	0.749	0.02535	0.644
23	0.024	0.61	0.025	0.635	0.02782	0.707	0.02256	0.573
24	0.022	0.559	0.022	0.559	0.02476	0.629	0.02011	0.511
25	0.02	0.508	0.02	0.508	0.02204	0.56	0.01791	0.455
26	0.018	0.457	0.018	0.457	0.01961	0.498	0.01594	0.405
27	0.0164	0.417	0.016	0.406	0.01745	0.443	0.0142	0.361
28	0.0148	0.376	0.014	0.356	0.01562	0.397	0.01264	0.321
29	0.0136	0.345	0.013	0.33	0.0139	0.353	0.01126	0.286
30	0.0124	0.315	0.012	0.305	0.0123	0.312	0.01003	0.255
31	0.0116	0.295	0.01	0.254	0.011	0.27	0.00893	0.227
32	0.0108	0.274	0.009	0.229	0.0098	0.249	0.00795	0.202
33	0.01	0.254	0.008	0.203	0.0087	0.221	0.00708	0.18
34	0.0092	0.234	0.007	0.178	0.0077	0.196	0.0063	0.16
35	0.0084	0.213	0.005	0.127	0.0069	0.175	0.00561	0.143
36	0.0076	0.193	0.004	0.102	0.0061	0.155	0.005	0.127
