UL10064 32AWG Thermocouple Extension Cable Rubber Twisted
UL10064 32AWG Thermocouple Extension Cable Rubber Twisted

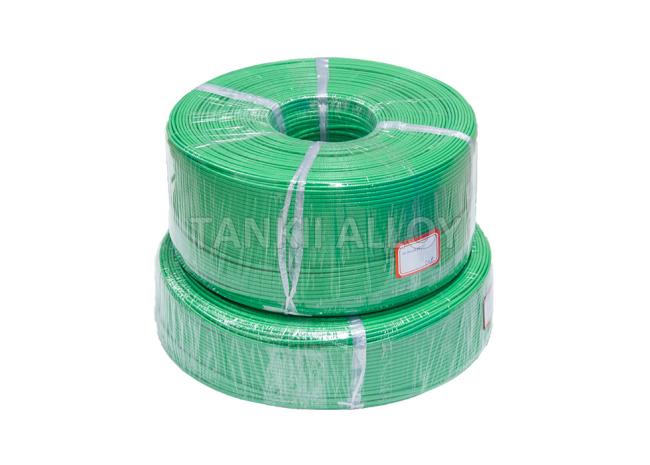

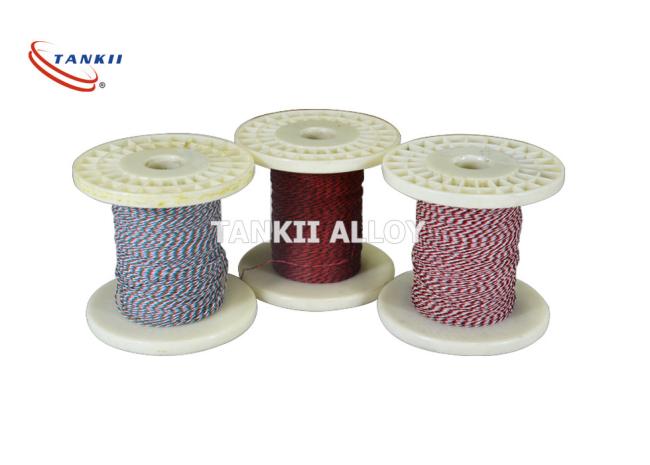

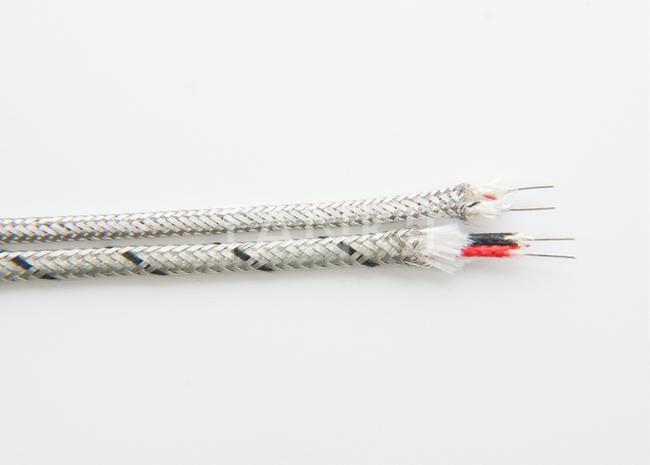

Thermocouple Extension Cable
Thermocouple Extension wire and wire which are used in temperature measuring method by thermocouple, that consists of two dissimilar metals that are joined together at the sensing end. Extension wire uses same materials with thermocouple to extend from thermocouple to measuring equipment.
Features: Excellent thermoelectric stability, mechanical and electric properties, long working life;
Simple structure, excellent flexibility,easy for assembly;
High chemical stability, heat-resisting, and frost-resisting of clad.
| Part NO. | Insulation grades | Conductor | Certificates | Standard | Insulation System | |
| OLTIW | Class-B 130℃ |
0.16 ·--1.00 |
single wire | UL E466302 VDE 40040893 |
UL2353 IEC60950 IEC60601 IEC61558 IEC60065 |
E497858 OULY-130 |
| Conductor name | Type | Applicable thermocouple type |
| Cu-Constantan 0.6 | SC or RC | S or R |
|
Iron-constantan 22 Copper-Constantan40 Chromel 10-NiSi3 |
KCA KCB KX |
K |
|
Iron-constantan 18 NiCr14Si-NiSi4Mg |
NC NX |
N |
| NiCr10-Constantan45 | EX | E |
| Iron-Constantan 45 | JX | J |
| Copper-Constantan 45 | TX | T |
