Superfine 0.1mm Type K Thermocouple Wire Oxidized
Product Description

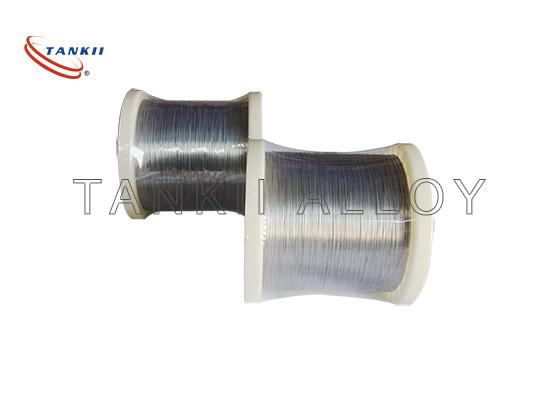

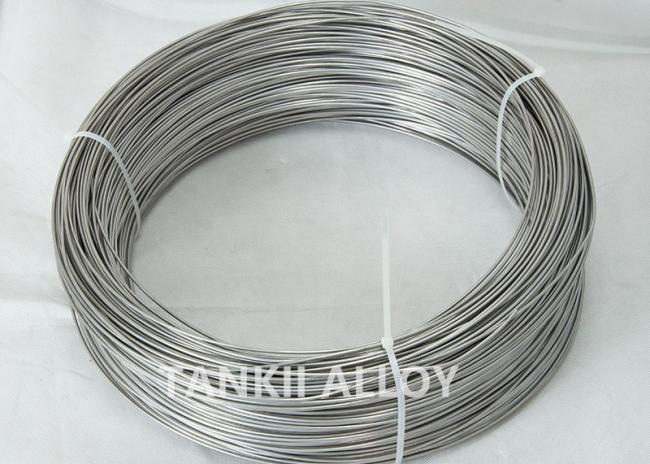

Type K Thermocouple wire superfine wire 0.05mm 0.1mm
NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
Detailed Parameter
|
Chemical Composition
|
|||||
Conductor Name |
Polarity |
Code |
Nominal Chemical Composition /% |
||
Ni |
Cr |
Si |
|||
Ni-Cr |
Positive |
KP |
90 |
10 |
-- |
Ni- Si |
Negative |
KN |
97 |
-- |
3 |
|
Working Temperature
|
||
Diameter/mm |
Long time Working temperature /ºC |
Short period Working temperature /ºC |
0.3 |
700 |
800 |
0.5 |
800 |
900 |
0.8,1.0 |
900 |
1000 |
1.2,1.6 |
1000 |
1100 |
2.0,2.5 |
1100 |
1200 |
3.2 |
1200 |
1300 |
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting
