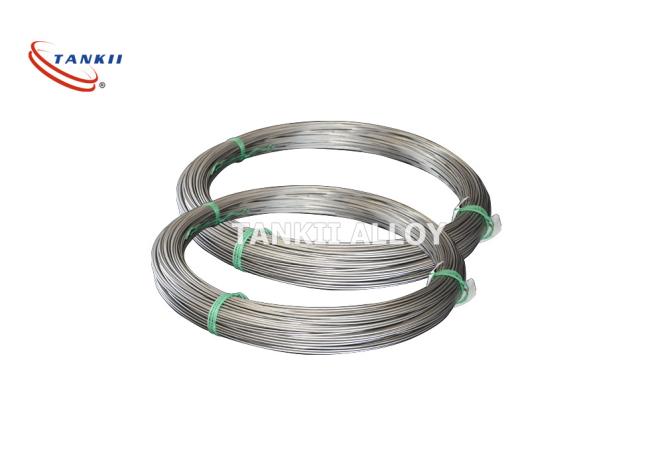

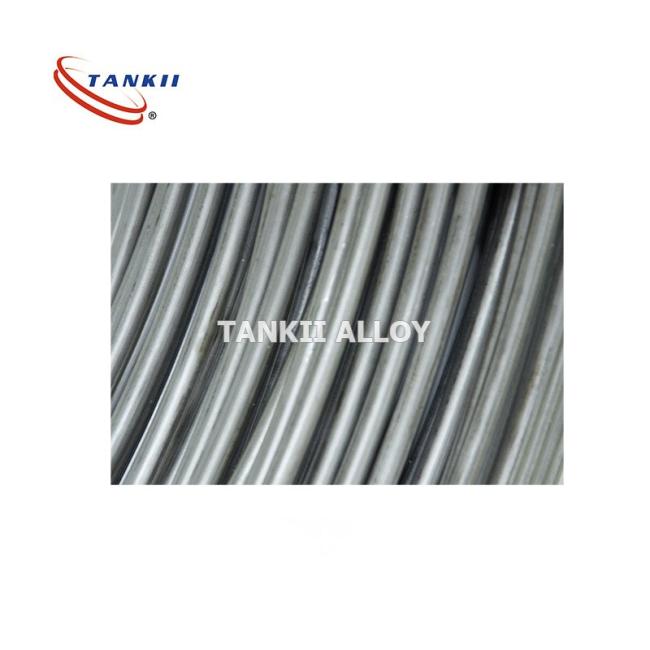

Simplex SS321 Metal Sheathed Electrical Wire Magnesium Oxide Insulated
| Sheath material | OD | Core number: |
| SS304, SS321, SS316, SS310, INCL600 | 0.5~12.7mm |
Simplex, Duplex, Triplex |

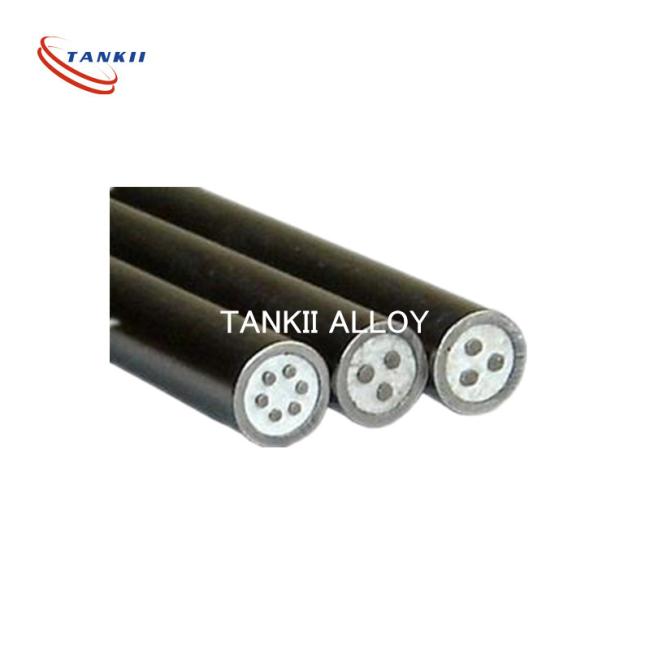

Tankii Mineral Insulated Cable (MI cable), comprising a metal sheath in which the conductors are embedded in highly compressed magnesium oxide insulation.
Usually, the conductors (copper or thermocouple wires) are embedded in MgO and pressed into a metal tube made of oxidation and corrosion resistant material.
The entire combination is then rolled under pressure to achieve the desired diameter.
Magnesium oxide makes an excellent electrical insulation material because it resists oxidation and ionizing radiation, and it is both chemically and physically stable at high temperatures.
The outer sheath protects the internal conductor from heat, chemical or other environmental damage.
Tankii MI cables are designed for high-temperature applications and used wherever in a particularly strict requirements with regard to mechanical, chemical and electrical stability.
K Type MI Cable Simplex Magnesium Oxide Insulated SS 321 Metal Sheathed Cable
Structure
Conductor: Positive Ni-Cr, Negative Ni-Si
Insulation: Mineral
Jacket: Stainless steel, inconel
K Type MI Cable Simplex Magnesium Oxide Insulated SS 321 Metal Sheathed Cable
|
Type |
Class of Accuracy | |||||
| I | II | III | ||||
| Tolerance | Temp-℃ | Tolerance | Temp-℃ | Tolerance | Temp-℃ | |
| K | ±1.5℃ or ±0.4% t | -40~1000 | ±2.5℃ or ±0.75% t | -40~1000 | ±2.5℃ or ±1.5% t | -200~40 |
| E | -40~1000 | -40~1000 | -200~40 | |||
| N | -40~800 | -40~800 | -200~40 | |||
| J | -40~750 | -40~750 | -200~40 | |||
| T | ±0.5℃ or ±0.4% t | -40~350 | ±1.0℃ or ±0.75% t | -40~400 | ±1.0℃ or ±1.5% t | -200~40 |

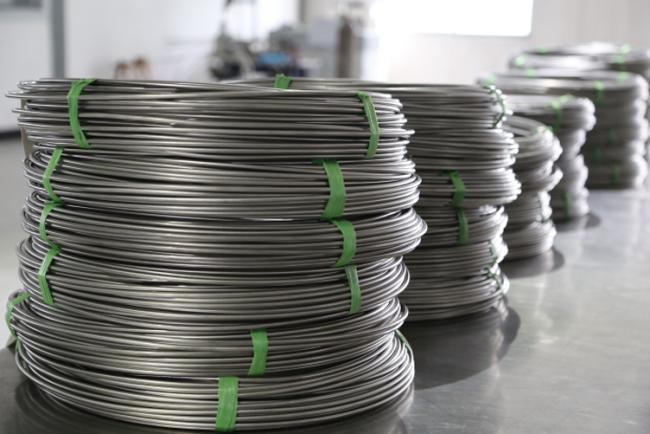

| Packaging Details | Roll with plastic film wrapped and carton package |
|---|---|
| Delivery Detail | Shipped in 7 days after payment |
Application: thermocouple sensors
1. Payment ways?
T/T, PAYPAL, WESTUNION.
In 12 hours since we get your payment.
MTC , ISO9001, ROHS , SGS as customers' request
Company name, Recipients, Correct Address, telephone, zip code.
For most of our products, the warranty will be 12 months.
Within 48 hours (on working days )
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
For General Orders, the shipping time will be 5 workdays.
