RGB 3 In 1 Stage Background Led Display Big Screen High Definition Pixel Density 160000
Indoor full color RGB 3in1 LED display, high definition display pixel density 160000, refresh rate up to 3000hz
Product Description
| SPECIFICATION | |
| Parameters | P2.5 |
| Pixel Pitch(mm) | 2.5 mm |
| Pixel Conguration | SMD 2020 |
| Pixel Matrix per Panel(dots) | 192 x 192 dots |
| Pixel Density(dots/m²) | 160,000 dots/m² |
| Cabinet Size(mm) | 480 x 480 x 63mm |
| Panel Dimension(W×H×D) | ( 18.9”×18.9”×2.5”) |
| Panel Material | Die-casting Aluminum |
| Panel Weight(kg/panel) | 5.6 kg/panel (12.3 lb/panel ) |
| Color Depth(Bit) | 14 bit |
| Refresh Rate(Hz) | ≥2880Hz |
| Driver Method/scan | Scan 1/32 |
| Brightness(nits) | 900nits, adjustable |
| Horizontal Viewing Angle(°) | 160 ° |
| Vertical Viewing Angle(°) | 160 ° |
| AC Power Input(V) | AC110V~ 220V ±10% |
| AC Power Frequency(Hz) | 50 ~ 60 Hz |
| Max. Power(W/m²) | 520 W/m² |
| Avg. Power(W/m²) | 170 W/m² |
| Storage/Operating Humidity(RH ) | 10% ~ 90%RH |
| IP Rating(IP ) | IP30 / IP30 |
| Lifetime Typical Value(Hrs) | 100,000 Hrs |
| Installation Type | Fix , Front installation |
| Maintenance Method | Front & Rear serviceable |
| Certications | TUV-CE,ETL |

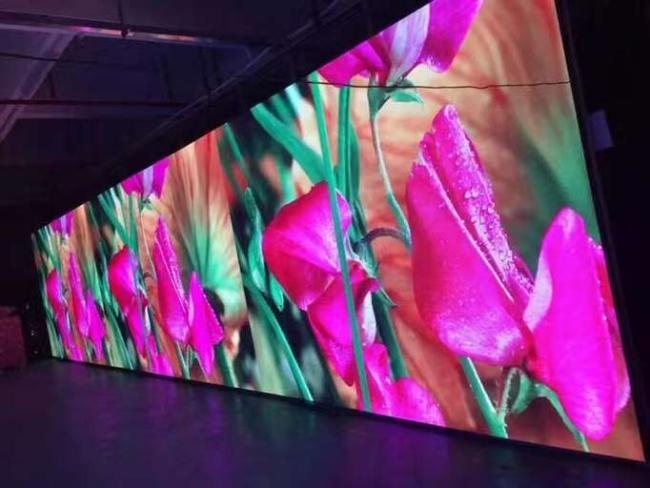

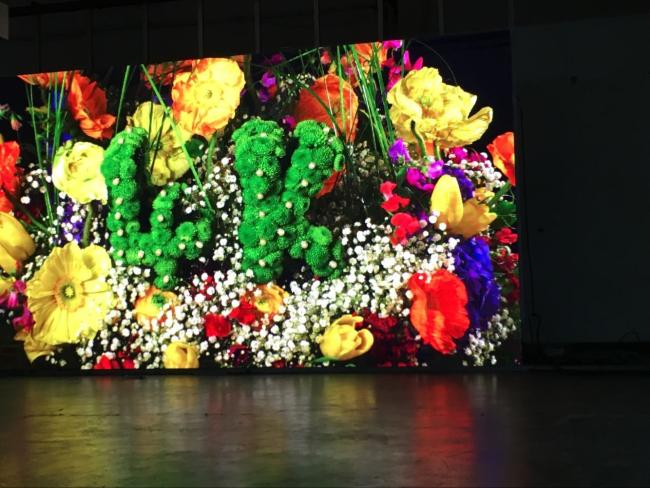

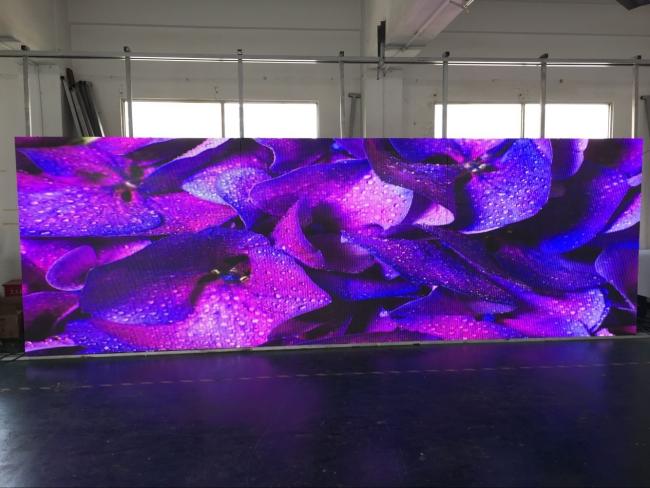

Our case

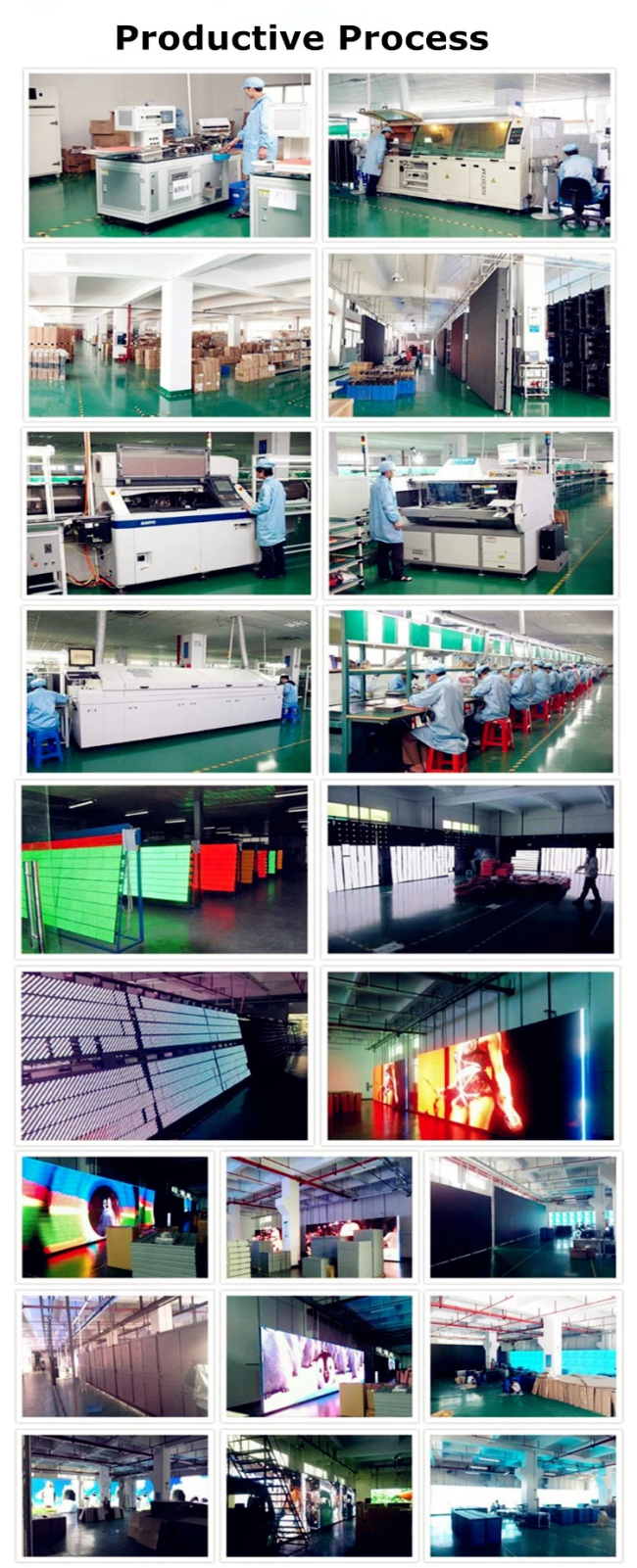

Workshop

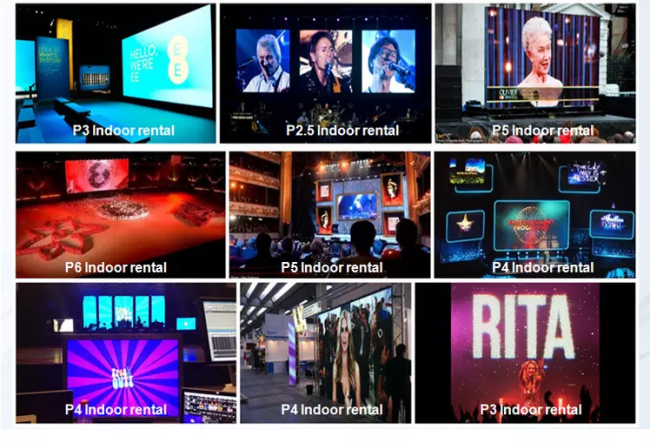

Our Project
Our Service
FAQ
Q1. Can I have a sample order for led display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are aceptable.
Q2. What about the delivery lead time?
A: About 22 days after receiving payment.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 1pc led panel for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7. Do you offer guarantee for the products?
A: Yes, we offer 2 years warranty to our products.
Q8. How to deal with the faulty?
First, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Second, we offer complete set of accessories for fixing up cabinets and 1 % extra spare parts of the total quantity for maintenance overhaul
Third, during the warranty time, we will take responsibility to change or repair defective parts. The buyer pay the shipping of returning of defectives, and we pay the shipping of sending back.
Q9. Do you offer installation services?
We provide on the spot installation instruction service for the buyer, including:
A, To check whether the bracket and frame are in conformity with the technical requirements of the structure scheme the seller providedB, To instruct the buyer's technicians to install the LED module cases and connection among those cases
C, To experiment and adjust the whole panel, examine and repair the defective devices, guarantee panel in secure operation.
D, To train the buyer's technicians.
For spot installation, the service is 100 usd/day, and the buyer must pay our technician's living and traffic fee during the installation period.
