P10 P8 SMD3535 6500cd/Sqm Stadium Perimeter Led Screen
waterproof ip65 960*960mm rgb advertising P10 led display board for sports stadium
1, P10 1R1G1B led display, with 10000dots/sqm, which guarantee vivid and clear image effection.
2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.
3, Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.
4, Backside maintenance. Exterior exposed module screws, easy dismantling.
5, Waterproof connectors, safe and steady.
More Specs available upon request Outdoor ,Welcome to contact us!
Parameter specification
Module:
| Pixel pitch | 10mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD3535 |
| Module size | 320x160mm |
| Module resolution | 32*16dots |
Cabinet Parameter:
| Cabinet size | 960x960mm |
| Cabinet material | ironed steel cabinet |
| Cabinet weight | 27.5kg |
| Cabinet resolution | 96*96dots |
| Ingress protection | Front/Rear IP65/IP54 |
| Pixel density | 10000dots/m² |
| Brightness | ≥5000cd/m² |
| Viewing angle | H≥120° V≥60° |
| Min.viewing distance | 10m |
| Max.power consumption | 850W/m² |
| Avg.power consumption | 280W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Refresh rate | ≥960Hz |
| MTBF | ≥100,000 hours |
| Lifespan | ≥100,000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way |
Computer, video-synchronous, real-time, off-line, wireless, internet etc. |

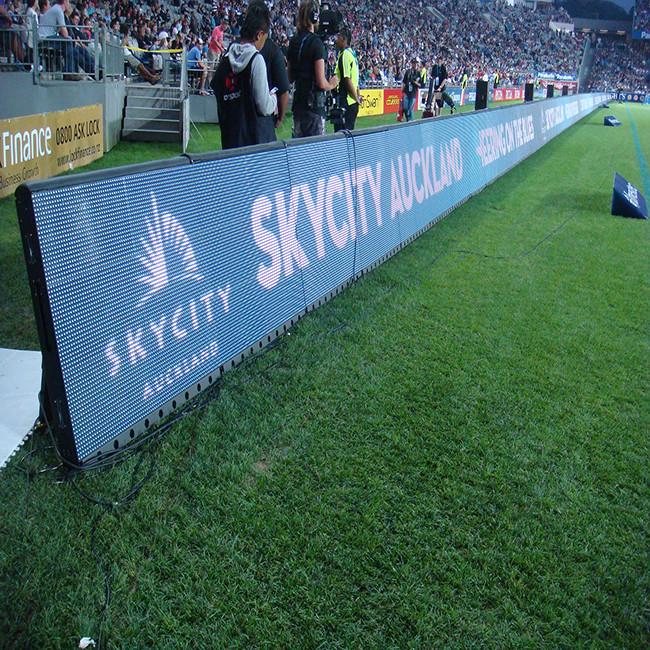

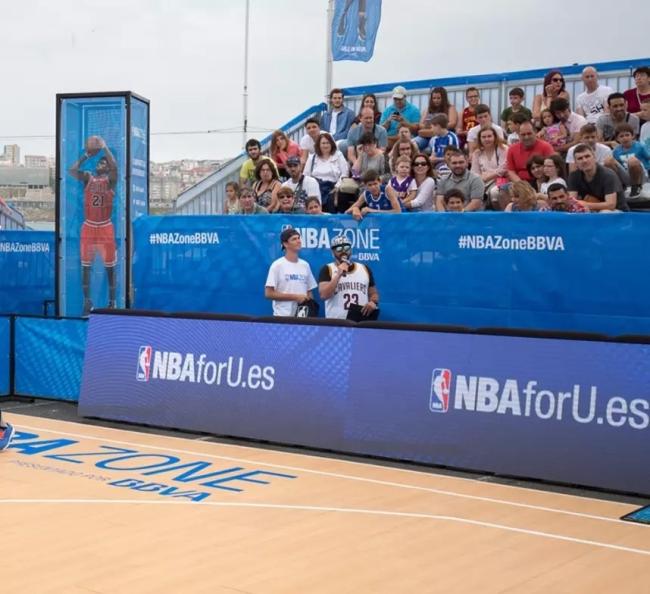

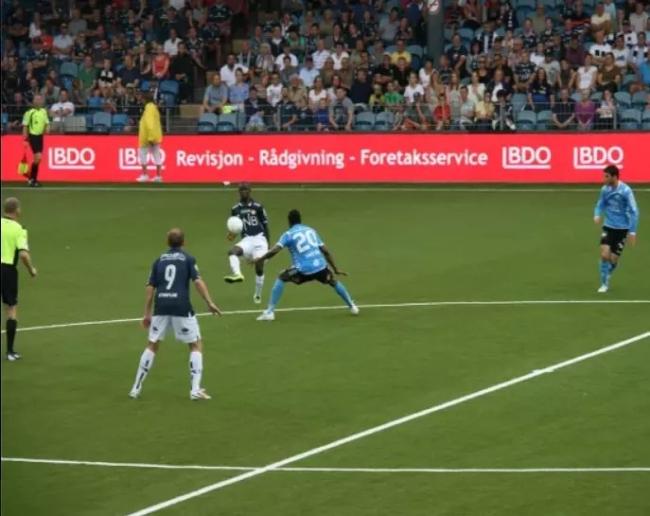

Our case
Certificate
Packaging and shipping
Packing:1.wooden case packing for ironed steel cabinet.
2.flight case packing for die casting aluminum cabinet.
Delivery:Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1.Are you a manufacturer or a trading company?
A: We are manufacturers
Q2. What kind of plug do you have?
A:According to which country you located,we will provide suitable plugs.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1sqm .
Q4.What is your production time?
A: The production time depend on the quantity.
Q5. How to proceed an order for led screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: yes, we offer 2years warranty
Our service
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
