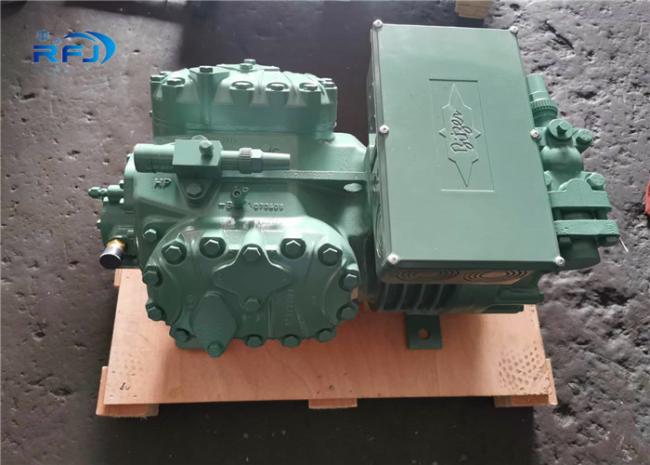

R410A 4H-15.2Y 4HE-18Y 15HP Cold Room Compressor
Price:
US$712-1000/PC
MOQ:
1 piece
Delivery Time:
5-7 Days
Product Description
1. Product parameter(Specification)
| Model | Displ. @1450r/min | Cylinders | Oil charge | Weight | Discharge line | Suction line | ||
| m³/h | dm³ | Kg | mm | in | mm | in | ||
| 2KES-05Y | 4.06 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2JES-07Y | 5.21 | 2 | 1 | 43 | 12 | 1/2" | 16 | 5/8" |
| 2HES-1Y | 6.51 | 2 | 1 | 44 | 12 | 1/2" | 16 | 5/8" |
| 2HES-2Y | 6.51 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2GES-2Y | 7.58 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-2Y | 9.54 | 2 | 1 | 45 | 12 | 1/2" | 16 | 5/8" |
| 2FES-3Y | 9.54 | 2 | 1 | 47 | 12 | 1/2" | 16 | 5/8" |
| 4FES-3Y | 18.1 | 4 | 2 | 82 | 16 | 5/8” | 22 | 7/8” |
| 4FES-5Y | 18.1 | 4 | 2 | 86 | 16 | 5/8” | 22 | 7/8” |
| 4EES-4Y | 22.7 | 4 | 2 | 84 | 16 | 5/8” | 28 | 1 1/8” |
| 4EES-6Y | 22.7 | 4 | 2 | 86 | 16 | 5/8” | 28 | 1 1/8” |
| 4DES-5Y | 26.8 | 4 | 2 | 86 | 22 | 7/8” | 28 | 1 1/8” |
| 4DES-7Y | 26.8 | 4 | 2 | 89 | 22 | 7/8” | 28 | 1 1/8” |
| 4CES-6Y | 32.5 | 4 | 2 | 91 | 22 | 7/8” | 28 | 1 1/8” |
| 4CES-9Y | 32.5 | 4 | 2 | 91 | 22 | 7/8” | 28 | 1 1/8” |
| 4VES-6Y | 34.7 | 4 | 2.6 | 129 | 22 | 7/8” | 28 | 1 1/8” |
| 4VES-7Y | 34.7 | 4 | 2.6 | 129 | 22 | 7/8” | 28 | 1 1/8” |
| 4VES-10Y | 34.7 | 4 | 2.6 | 139 | 22 | 7/8” | 28 | 1 1/8” |
| 4TES-8Y | 41.3 | 4 | 2.6 | 134 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4TES-9Y | 41.3 | 4 | 2.6 | 134 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4TES-12Y | 41.3 | 4 | 2.6 | 414 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4PES-10Y | 48.5 | 4 | 2.6 | 139 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4PES-12Y | 48.5 | 4 | 2.6 | 139 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4PES-15Y | 48.5 | 4 | 2.6 | 147 | 28 | 1 1/8” | 42 | 1 5/8” |
| 4NES-12Y | 56.2 | 4 | 2.6 | 141 | 28 | 1 1/8” | 35 | 1 3/8” |
| 4NES-14Y | 56.2 | 4 | 2.6 | 141 | 28 | 1 1/8” | 35 | |
3.Production details
| SI | IP | |
| Displacement(1450 RPM 50 HZ) | 73.7 m³/h | 2599.2 CFH |
| Displacement(1750 RPM 60 HZ) | 88.83 m³/h | 3137.0 CFH |
| No.of cylinder * bore * stroke | 4*70mm*55mm | 4*2.76inch*2.17inch |
| Weight | 183 kg | 404 lb |
| Max,pressure(LP/HP) | 19/32 bar | 275/464 psi |
| Connection suction line | 42mm-1 5/8” | 42mm-1 5/8” |
| Connection discharge line | 28mm-1 1/8” | 28mm-1 1/8” |
| Motor version | 2 | 2 |
| Starting current(Rotor locked) | 97.0 A Y/158.0 A YY | 176.0 A |
| Motor voltage(more on request) | 380-420V Y-3-50 HZ | 440-480V Y-3-60 HZ UL |
| Max operating current | 36.7 A | 36.7 A |
Product Description:
|
Low price piston refrigeration compressor 4H-15.2Y / 4HE-18Y 4H-15.2Y / 4HE-18Y |
|
| Brand | |
| Model no. | 4H-15.2Y / 4HE-18Y |
| Motor Size( HP) | 15 |
| Motor version | 1 |
| Displacement Type(m 3/h) | 84.6 |
| oil charge (dm3) | 4.5 |
| Voltage | 380-420V/3PH/50Hz or 440-480V/3PH/60Hz |
| No of cylinders | 4 |
| Refregrant | R134, R410A |
| Certification | VDE, TUV and CE |
| weight(kg) | 183 |
| Place Of Original | Germany |
| packing | wooden case |
