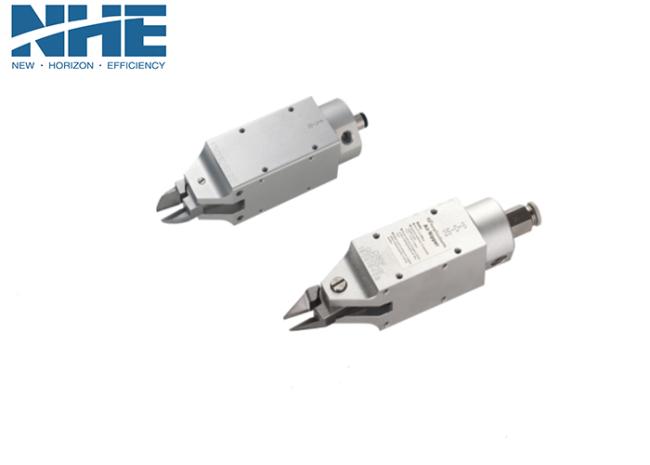

Customized Tungsten Steel Air Nipper With Square Cylinder Multi Function
Multi-Function Customized Tungsten Steel Air Nipper With Square Cylinder C20+WIS-F
AIR NIPPERS
Qianhe's air nippers are available in various versions with different body and
blade options.The body can be vertical or horizontal, while the blade can be straight, angular, perpendicular, square or round.
Description
The product is used in Automatic coil winding machine and some other Automatic Machine
It is a general set of blades used for cutting copper wire ,steel wire,soft plastic and hard plastic .
Improved durability with brazed high-speed steel.
We provides a generous selection of blades for all wire cutting needs, including resin product
gate cuts.and automatic welding equipment.
Products features:
- All the blades are inlay imported tungsten steel and the using life can be sure with 100,0000 times .
- The Air Nipper cylinders are made of high quality alloy forged →heat treatment→finish machining →riveting technology etc;
- The Cylinder surface deal with hardened ,not easy to scratch ,the piston and the O-Ring are all high quality materials imported from overseas;
- Working Pressure :5kg/C㎡
- The opening is 3.8-4.2 mm ,and for special requirements it can be customized.

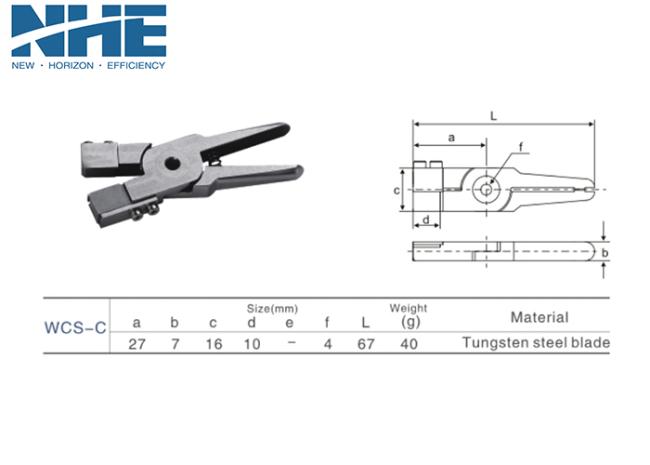

- All the Air Nipper Blades need to match with the cylinder for cutting
Features
- Inlaid tungsten steel, long service life
- Superior wear resistance
- Appearance of cylinder, hard surface treatment
Specification :
| Cylinder Model | Blades Model | Applied cutting wire (Фmm) | ||
| Copper wire | Steel Wire | Soft plastic wire | ||
| CS10,C20,C40,Handheld | WIS-A,WIS-B,WIS-D,WIS-F ,WIS-G,WLS/WCS/WIL | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| C30 | WIS-A.WIS-B,WIS-C,WIS-D,WIS-F,WIS-G,WLS/WCS/WIL | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| C25 | WIS-E | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| C50 | WIS-E2 | 0.02-1.00 | 0.02-0.50 | 0.02-2.00 |
| CS-5 | ** | 0.02-0.50 | ** | ** |
| C45 | WIB-A/B/C | 0.10-2.50 | 0.10-1.50 | 0.10-3.00 |
For special requirements it can be customized
Picture Show :
Winding Machine Spare Parts
All kind of winding machine accessories for example: Ceramic pully, wire pully, ceramic eyes,wire guide and nipper blade for different machines, Marsilli machines, Nittoku machine and Tanac machines
