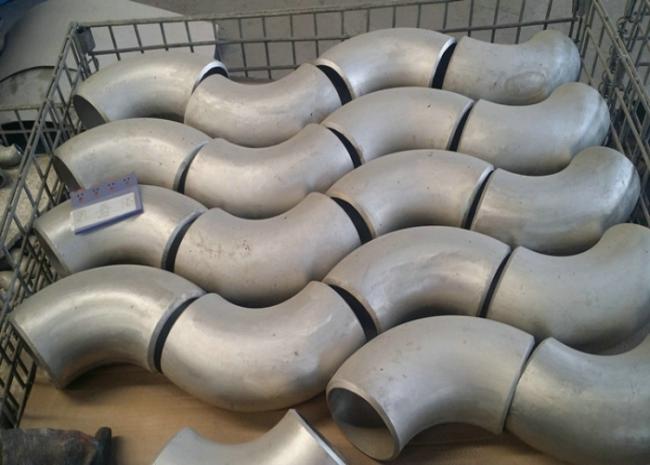

Seamless Stainless Steel Elbow Butt Weld Elbows A403 WP321 WP317L, WP321
Long Radius Elbow Seamless Stainless Steel Elbow A403 WP321 WP317L, WP321, WP347 / WPS31254
1) seamless, single-slit tube wall thickness: 1 / 2 "NPS Sch5S to 24" OD x 30mm
2) double-slit tube wall thickness: from 10 "to 58" OD x 30mm
Manufacturing standards:
1) ASTM ASME A/SA 403 MSS SP43 & SP75 ANSI B16.9 ANSI B16.28 ASTM A815 ASTM B363 B366
2) DIN2605 DIN2615 DIN2616 DIN2617
3) GB12459 GB13401
4) JIS2313
Process: stainless steel, nickel copper used cold, Mandrel molding (elbow can minimize thickness thinning) Using carbon steel, and other thermal processing, forming within Mandrel
Dimensions: seamless 1 / 2 "-20" (DN15 - DN500), a slit 1 / 2 "-48" (DN15 - DN1200)
Standards:GB/T12459, GB/T13401,SH3408,SH3409,HG/T21635,
HG/T21631,ASME B16.9,MSS SP-43,DIN 2605,JIS B2313
Thickness:SCH5S-SCH160
material: stainless steel, nickel copper, carbon steel and low alloy steel, alloy steel
ASME B16.9
|
size |
Outer Diameter |
Wall thickness (T) |
90o L / R Elbow center to tail A |
45o L / R center to bend the tail end B |
90o S / R to the end of A Center Elbow |
Three links to the Center for the tail end C.M |
The length of the cap |
|||
|
Sch.5S |
Sch.10S |
Sch.40S |
Sch.80S |
|||||||
|
1/2 |
0.840 |
0.065 |
0.083 |
0.109 |
0.147 |
1.50 |
0.625 |
- |
1.00 |
1.00 |
|
3/4 |
1.050 |
0.065 |
0.083 |
0.113 |
0.154 |
1.12 |
0.438 |
- |
1.13 |
1.00 |
|
1 |
1.315 |
0.065 |
0.109 |
0.133 |
0.179 |
1.50 |
0.875 |
1.00 |
1.50 |
1.50 |
|
1-1/4 |
1.660 |
0.065 |
0.109 |
0.140 |
0.191 |
1.88 |
1.00 |
1.25 |
1.88 |
1.50 |
|
1-1/2 |
1.900 |
0.065 |
0.109 |
0.145 |
0.200 |
2.25 |
1.12 |
1.50 |
2.25 |
1.50 |
|
2 |
2.375 |
0.065 |
0.109 |
0.154 |
0.218 |
3.00 |
1.38 |
2.00 |
2.50 |
1.50 |
|
2-1/2 |
2.875 |
0.083 |
0.120 |
0.203 |
0.276 |
3.75 |
1.75 |
2.50 |
3.00 |
2.00 |
|
3 |
3.500 |
0.083 |
0.120 |
0.216 |
0.300 |
4.50 |
2.00 |
3.00 |
3.38 |
2.50 |
|
4 |
4.500 |
0.083 |
0.120 |
0.237 |
0.337 |
6.00 |
2.50 |
4.00 |
4.13 |
3.00 |
|
5 |
5.563 |
0.109 |
0.134 |
0.258 |
0.375 |
7.50 |
3.12 |
5.00 |
4.88 |
3.50 |
|
6 |
6.625 |
0.109 |
0.134 |
0.280 |
0.432 |
9.00 |
3.75 |
6.00 |
5.63 |
4.00 |
|
8 |
8.625 |
0.109 |
0.148 |
0.322 |
0.500 |
12.00 |
5.00 |
8.00 |
7.00 |
5.00 |
|
10 |
10.750 |
0.134 |
0.165 |
0.375 |
0.500 |
15.00 |
6.25 |
10.00 |
8.50 |
6.00 |
|
12 |
12.750 |
0.156 |
0.180 |
0.375 |
0.500 |
18.00 |
7.50 |
12.00 |
10.00 |
7.00 |
|
14 |
14.000 |
0.156 |
0.250 |
0.375 |
0.500 |
21.00 |
8.75 |
14.00 |
11.00 |
7.50 |
|
16 |
16.000 |
0.165 |
0.250 |
0.375 |
0.500 |
24.00 |
10.00 |
16.00 |
12.00 |
8.00 |
|
18 |
18.000 |
0.165 |
0.250 |
0.375 |
0.500 |
27.00 |
11.25 |
18.00 |
13.50 |
9.00 |
|
20 |
20.000 |
0.188 |
0.250 |
0.375 |
0.500 |
30.00 |
12.50 |
20.00 |
15.00 |
10.00 |
|
24 |
24.000 |
0.218 |
0.250 |
0.375 |
0.500 |
36.00 |
13.50 |
24.00 |
17.00 |
12.00 |
Applications range: For use in the petroleum, smelting, foodstuff, power, papermaking, chemical, medical equipment, aviation, boiler heat exchanger, and other fields.
Note:Providing customers with customerized composition,size,package.
