Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry
Butt Welding Stainless Steel Lap Joint Stub Ends Cold Formed For Industry
Quick Details
| Technics: |
cold formed
|
Place of Origin: |
Shanghai, China (Mainland)
|
Model Number: |
1/2"-72"
|
| Brand Name: |
TOBO
|
Connection: |
Welding
|
Shape: |
Equal
|
| Material: |
Stainless Steel, Stainless Steel 304,316L,310,321
|
Type: |
stub end
|
Surface treatment: |
polishing
|
| Head Code: |
round
|
Application: |
Industry ,Oil, exhaust
|
End treatment: |
PE/BE
|
Packaging & Delivery
| Packaging Details: | wooden packing |
| Delivery Detail: | 5-20days |
| Type | stainless steel ,alloy steel,Carbon steel (seam & seamless) ASTM A234and A105 WPB |
| Size | Seamless 1/2" To 24" Welded To 72" |
| Wall thickness | Sch5S-Sch160, XS,XXS(1.2mm~34mm) |
| Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
| Material | Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Alloy Steel:s31803.s32750.S32760. Temperature: ASTM A420 WPL 1, WPL 3, WPL 6 |
| Surface treatment | Sand Rolling, Sand Blasting ,Acid Cleaning. |
| Packing | wooden case, pallet or as customers’ requirement |
| Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
| Min order | 10 pieces |
| Delivery time | According to client’s requirement |
| Productivity | 120000 ton per year |
| 1.Name: | Stainless steel lap joint stub end |
| 2. Material: | AISI 304, AISI 316L |
| 3. Standard: | DIN/SMS/ISO/IDF/3A/RJT/DS/BS/BPE |
| 4. Connection: | Welding |
| 5.Size: | 1/2"-24" |
| 6. Finish: | Mirror polish, semi bright etc |

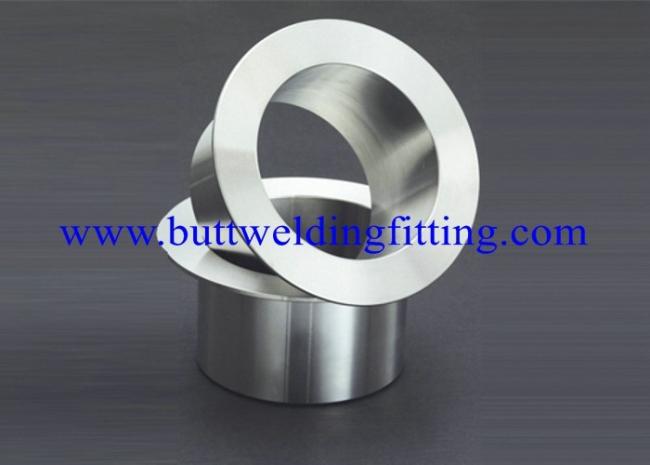

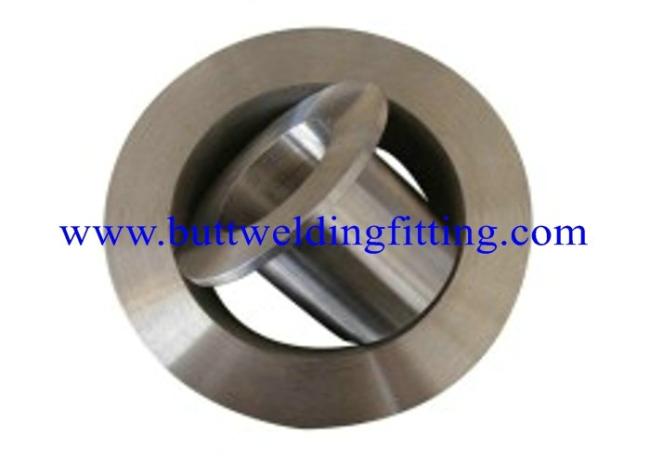

Lap joint (stub Ends)
|
Lap Joints also named stub Ends and vanstone flared laps,it is used in place of welded flanges where rotating back up flanges are desired.it makesquick disconnection of the particular section easy.
|
|
Lap joint( stub ends)
|
||
|
Pattern
|
lagre OD lap joint,alloy lap joint,long Lap joint
|
|
|
size |
1/8”-48” |
|
|
Pressure class |
100#-2500# |
|
| Lap joint (stub Ends) | |||
|---|---|---|---|
 |
 |
 |
 |
| long lap joint | Lap joint | stainless lap joint | grooved lap joint |
| Material | |||
| Carbon | SA234 WPB, SA234 WPC,SA42 WPL6, SA42 WPL3, WP1. MSS-SP75 WPHY,WPHY 46,WPHY 52,WPHY 56,WPHY 60,WPHY 65, WPHY 70 DIN 1629 St37, RST37.2 St52 |
||
| Stainless | ASTM/ASME SA403 304,304L ,316, 316L, WP304L, 3 WP316 WP347 (H) ,WP317 (L),WP321. DIN 1.4301, 1.4306, 1.4401, 1.4571 JIS SUS304,SUS304, SUS304L, SUS316, SUS316 |
||
| Alloy |
ASTM/ASME SA234 WP12, WP11,WP22, WP5, WP9, WP91. |
||
| Others | Copper, Aluminium,Brass,Titanium, Nickel,Nichrome, Al.Bronze Phosphorous Bronze | ||
 |
|||
