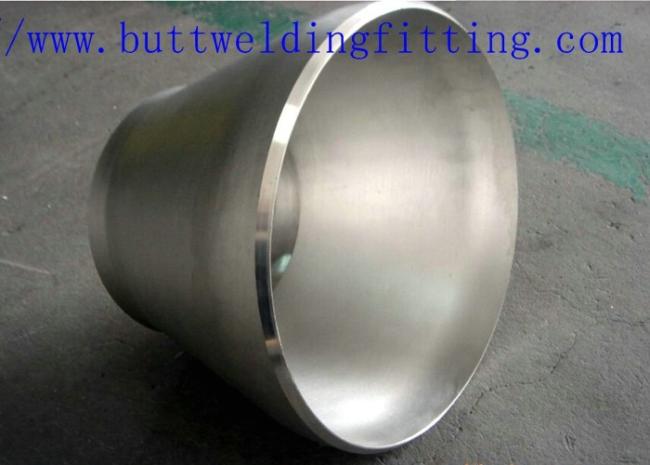

Concentric Pipe Reducer Stainless Steel Pipe WPB SS Fittings
Concentric Pipe Reducer Stainless Steel Pipe WPB SS Fittings
Description:
1. Product Item No.: 007fittings-Cosco Steel
2. Size:13.7mm-1219.2mm (1/4''-48''),DN8-DN1200
3. WT:SCH5S-XXS
4. Standard:ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419,DIN EN10253,JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387
5. Raw material
Carbon Steel:
10# 20# Q235B ASTM A234 ASTM A105 ASTM A403
Stainless Steel:1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti 00Cr17Ni14Mo2 304 304L 316 316L
Alloy Steel:
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1 A335P22 St45.8
ASTM A860 WPHY X42 X52 X60 X70
Aluminum Steel:
1060,2024,2017,3003,5052,5083,6061,6083,6060,7075,8011
6. Packing:Wooden case, Wooden pallet, or according to customer's requirement
7. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
8. Packing: Wooden box or wooden pallet.
9. H.S Code: 73072300
10. Pressure:PN40, 64, 100, 160, 250, 320, 1500, 2000, 2500, 3000, 6000,9000LBS
11. Inspection
a) Factory in-house
b) Third party inspection available upon request
c)Different accessories are available
12. Treatment:
a) Lightly oiled
b) Galvanized
d) as per customer's requirement
13. Certificate:ISO9001: 2000, CE
14. Term of payment L/C T/T(in advance)
15. Packing Plywood case, wooden cases, pallet, or as per customers requirement
| Nominal Diameter | Outside Diameter | End to End | ||
| D1*D2 | ||||
| DN | NPS | Series A | Series B | H |
| 20×15 | 3/4×1/2 | 26.9×21.3 | 25×18 | 38 |
| 20×10 | 3/4×3/8 | 26.9×17.3 | 25×14 | 38 |
| 25×20 | 1×3/4 | 33.7×26.9 | 32×25 | 51 |
| 25×15 | 1×1/2 | 33.7×21.3 | 32×18 | 51 |
| 32×25 | 1.1/4×1 | 42.4×33.7 | 38×32 | 51 |
| 32×20 | 1.1/4×3/4 | 42.4×26.9 | 38×25 | 51 |
| 32×15 | 1.1/4×1/2 | 42.4×21.3 | 38×18 | 51 |
| 40×32 | 1.1/2×1.1/4 | 48.3×42.4 | 45×38 | 64 |
| 40×25 | 1.1/2×1 | 48.3×33.7 | 45×32 | 64 |
| 40×20 | 1.1/2×3/4 | 48.3×26.9 | 45×25 | 64 |
| 40×15 | 1.1/2×1/2 | 48.3×21.3 | 45×18 | 64 |
| 50×40 | 2×1.1/2 | 60.3×48.3 | 57×45 | 76 |
| 50×32 | 2×1.1/4 | 60.3×42.4 | 57×38 | 76 |
| 50×25 | 2×1 | 60.3×33.7 | 57×32 | 76 |
| 50×20 | 2×3/4 | 60.3×26.9 | 57×25 | 76 |
| 65×50 | 2.1/2×2 | 73.0×60.3 | 76×57 | 89 |
| 65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 76×45 | 89 |
| 65×32 | 2.1/2×1.1/4 | 73.0×42.4 | 76×38 | 89 |
| 65×25 | 2.1/2×1 | 73.0×33.7 | 76×32 | 89 |
| 80×65 | 3×2.1/2 | 88.9×73.0 | 89×76 | 89 |
| 80×50 | 3×2 | 88.9×60.3 | 89×57 | 89 |
| 80×40 | 3×1.1/2 | 88.9×48.3 | 89×45 | 89 |
| 80×32 | 3×1.1/4 | 88.9×42.4 | 89×38 | 89 |
| 90×80 | 3.1/2×3 | 101.6×88.9 | - | 102 |
| 90×65 | 3.1/2×2.1/2 | 101.6×73.0 | - | 102 |
| 90×50 | 3.1/2×2 | 101.6×60.3 | - | 102 |
| 90×40 | 3.1/2×1.1/2 | 101.6×48.3 | - | 102 |
| 90×32 | 3.1/2×1.1/4 | 101.6×42.4 | - | 102 |
| 100×90 | 4×3.1/2 | 114.3×101.6 | - | 102 |
| 100×80 | 4×3 | 114.3×88.9 | 108×89 | 102 |
| 100×65 | 4×2.1/2 | 114.3×73.0 | 108×76 | 102 |
| 100×50 | 4×2 | 114.3×60.3 | 108×57 | 102 |
| 100×40 | 4×1.1/2 | 114.3×48.3 | 108×45 | 102 |
| 125×100 | 5×4 | 141.3×114.3 | 133×108 | 127 |
| 125×90 | 5×3.1/2 | 141.3×101.6 | - | 127 |
| 125×80 | 5×3 | 141.3×88.9 | 133×89 | 127 |
| 125×65 | 5×2.1/2 | 141.3×73.0 | 133×76 | 127 |
| 125×50 | 5×2 | 141.3×60.3 | 133×57 | 127 |
| 150×125 | 6×5 | 168.3×141.3 | 159×133 | 140 |
| 150×100 | 6×5 | 168.3×114.3 | 159×108 | 140 |
| 150×90 | 6×3.1/2 | 168.3×101.6 | - | 140 |
| 150×80 | 6×3 | 168.3×88.9 | 159×89 | 140 |
| 150×65 | 6×2.1/2 | 168.3×73.0 | 159×76 | 140 |
| 200×150 | 8×6 | 219.1×168.3 | 219×159 | 152 |
| 200×125 | 8×5 | 219.1×141.3 | 219×133 | 152 |
| 200×100 | 8×4 | 219.1×114.3 | 219×108 | 152 |
| 200×90 | 8×3.1/2 | 219.1×101.6 | - | 152 |
| 250×200 | 10×8 | 273.0×219.1 | 273×219 | 178 |
| 250×150 | 10×6 | 273.0×168.3 | 273×159 | 178 |
| 250×125 | 10×5 | 273.0×141.3 | 273×133 | 178 |
| 250×100 | 10×4 | 273.0×114.3 | 273×108 | 178 |
| 300×250 | 12×10 | 323.9×273.1 | 325×273 | 203 |
| 300×200 | 12×8 | 323.9×219.1 | 325×219 | 203 |
| 300×150 | 12×6 | 323.9×168.3 | 325×159 | 203 |
| 300×125 | 12×5 | 323.9×141.3 | 325×133 | 203 |
| 350×300 | 14×12 | 355.6×323.9 | 377×325 | 330 |
| 350×250 | 14×10 | 355.6×273.0 | 377×273 | 330 |
| 350×200 | 14×8 | 355.6×219.1 | 377×219 | 330 |
| 350×150 | 14×6 | 355.6×168.3 | 377×159 | 330 |
| 400×350 | 16×14 | 406.4×355.6 | 426×377 | 356 |
| 400×300 | 16×12 | 406.4×323.9 | 426×325 | 356 |
| 400×250 | 16×10 | 406.4×273.0 | 426×273 | 356 |
| 400×200 | 16×8 | 406.4×219.1 | 426×219 | 356 |
| 450×400 | 18×16 | 457×406.4 | 478×426 | 381 |
| 450×350 | 18×14 | 457×355.6 | 478×377 | 381 |
| 450×300 | 18×12 | 457×323.9 | 478×325 | 381 |
| 450×250 | 18×10 | 457×273.0 | 478×273 | 381 |
| 500×450 | 20×18 | 508×457 | 529×478 | 508 |
| 500×400 | 20×16 | 508×406.4 | 529×426 | 508 |
| 500×350 | 20×14 | 508×355.6 | 529×377 | 508 |
| 500×300 | 20×12 | 508×323.9 | 529×325 | 508 |
| 550×500 | 22×20 | 559×508 | - | 508 |
| 550×450 | 22×18 | 559×457 | - | 508 |
| 550×400 | 22×16 | 559×406.4 | - | 508 |
| 550×350 | 22×14 | 559×355.6 | - | 508 |
| 600×550 | 24×22 | 610×559 | - | 508 |
| 600×500 | 24×20 | 610×508 | 630×529 | 508 |
| 600×450 | 24×18 | 610×457 | 630×478 | 508 |
| 600×400 | 24×22 | 610×406.4 | 630×426 | 508 |
| 650×600 | 26×24 | 660×610 | - | 610 |
| 650×550 | 26×22 | 660×559 | - | 610 |
| 650×500 | 26×20 | 660×508 | - | 610 |
| 650×450 | 26×18 | 660×457 | - | 610 |
| 700×650 | 28×26 | 711×660 | - | 610 |
| 700×600 | 28×24 | 711×610 | 720×630 | 610 |
| 700×550 | 28×22 | 711×559 | - | 610 |
| 700×500 | 28×20 | 711×508 | 720×530 | 610 |
| 750×700 | 30×28 | 762×711 | - | 610 |
| 750×650 | 30×26 | 762×660 | - | 610 |
| 750×600 | 30×24 | 762×610 | - | 610 |
| 750×550 | 30×22 | 762×559 | - | 610 |
| 800×750 | 32×30 | 813×762 | - | 610 |
| 800×700 | 32×28 | 813×711 | 820×720 | 610 |
| 800×650 | 32×26 | 813×660 | - | 610 |
| 800×600 | 32×24 | 813×610 | 820×630 | 610 |
| 850×800 | 34×32 | 864×813 | - | 610 |
| 850×750 | 34×30 | 864×762 | - | 610 |
| 850×700 | 34×28 | 864×711 | - | 610 |
| 850×650 | 34×26 | 864×660 | - | 610 |
| 900×850 | 36×34 | 914×864 | - | 610 |
| 900×800 | 36×32 | 914×813 | 920×820 | 610 |
| 900×750 | 36×30 | 914×762 | - | 610 |
| 900×700 | 36×28 | 914×711 | 920×720 | 610 |
| 950×900 | 38×36 | 965×914 | - | 610 |
| 950×850 | 38×34 | 965×864 | - | 610 |
| 950×800 | 38×32 | 965×813 | - | 610 |
| 950×750 | 38×30 | 965×762 | - | 610 |
| 1000×950 | 40×38 | 1016×965 | - | 610 |
| 1000×900 | 40×36 | 1016×914 | 1020×920 | 610 |
| 1000×850 | 40×34 | 1016×864 | - | 610 |
| 1000×800 | 40×32 | 1016×813 | 1020×820 | 610 |
| 1050×1000 | 42×40 | 1067×1016 | - | 610 |
| 1050×950 | 42×38 | 1067×965 | - | 610 |
| 1050×900 | 42×36 | 1067×914 | - | 610 |
| 1050×850 | 42×34 | 1067×864 | - | 610 |
| 1100×1050 | 44×42 | 1118×1067 | - | 610 |
| 1100×1000 | 44×40 | 1118×1016 | 1120×1020 | 610 |
| 1100×950 | 44×38 | 1118×965 | - | 610 |
| 1100×900 | 44×36 | 1118×914 | 1220×920 | 610 |
| 1150×1100 | 46×44 | 1168×1118 | - | 711 |
| 1150×1050 | 46×42 | 1168×1067 | - | 711 |
| 1150×1000 | 46×40 | 1168×1016 | - | 711 |
| 1150×950 | 46×38 | 1168×965 | - | 711 |
| 1200×1150 | 48×46 | 1220×1168 | - | 711 |
| 1200×1100 | 48×44 | 1220×1118 | 1220×1120 | 711 |
| 1200×1050 | 48×42 | 1220×1067 | - | 711 |
| 1200×1000 | 48×40 | 1220×1016 | 1220×1020 | 711 |
| Note: The dimensions conform to GB/T12459, GB/T13401, ASME B16.9, SH3408, SH3409, HG/T21635, HG/T21631, SY/T05010 standard. |
||||
Our advantage
i. Ultrasonic equipment for thickness inspection
ii. Ultrasonic flaw detecting equipment
iii. Universal material testing equipment
iv. Carbon and sulfur analyzer
