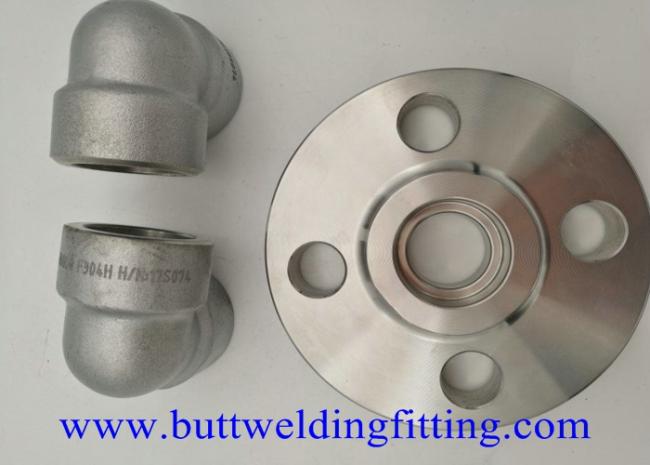

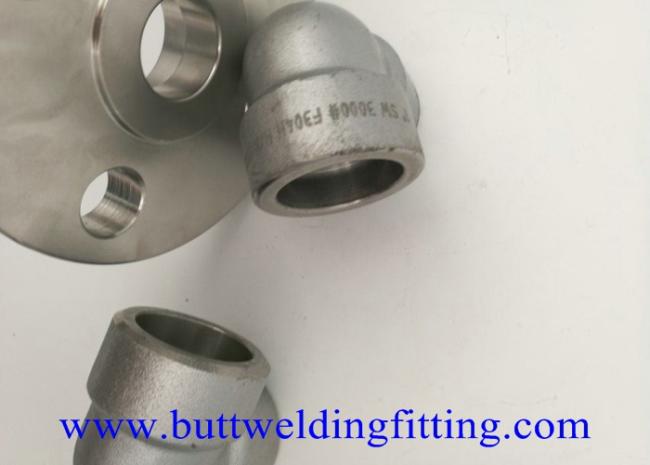

Stainless Steel 90 Degree Socket Welding Elbow 1'' 3000# 304H
Forged Fittings Stainless Steel 90 Degree Socket Welding Elbow 1'' 3000# 304H
Quick Details
| Material: |
Stainless Steel
|
Technics: |
Forged
|
Type: |
Forged Elbow
|
| Place of Origin: |
Hebei, China (Mainland)
|
Model Number: |
forged ASTM A105pipe fitting
|
Brand Name: |
TOBO
|
| Connection: |
Welding
|
Shape: |
Equal
|
Head Code: |
round
|
| color: |
silver
|
material: |
Stainless steel
|
type: |
elbow
|
| size: |
3/4 Inch
|
category: |
pipe fitting
|
qualification: |
ISO , API , CE
|
| standard: |
ASME , ANSI , JIS , DIN
|
Packaging & Delivery
| Packaging Details: | wooden cases or as requested |
| Delivery Detail: | 7-10 days |
Specifications
Forged Steel Pipe Fittings ASTM A105 Galvanized 90 degree 3/4 Inch Elbow
connection type: threaded
color: silver
size: 1/8"-4"-30"
Forged Steel Pipe Fittings ASTM A105 Galvanized 90 degree 3/4 Inch Elbow
Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings
| TYPE |
A:ELBOW,TEE,COUPLING,HALCOUPLING,CAP,PLUG,BUSHING,UNION, OUTLET,SWAGE NIPPLE,BULL PLUG,REDUCER INSERT AND HEX NIPPLE,STREET ELBOWS,BOSS...ETC. |
| B:SOCKET-WELD,THREADED(NPT or PT TYPE),BUTT-WELDING, | |
| SIZE | NPS 1/8"-4"; DN6-100 |
| RATING | PRESSURE:THREADED END -2000/3000/6000LBS. |
| SOCKET-WELD END -3000/6000/9000/LBS. | |
| BUTT WELD END -SCH40/SCH80/SCH160/XXS. | |
|
SPECIFICATIONS STANDARD |
A.DIM.SPEC.:ASME B16.11-2009(REVISION OF ASME B16.11-2005); MSS SP- 79,83,95,97and BS3799. |
|
B.ASTM A105,A350 LF2,A106,A312,A234,A403,ASTM A182(F304, F304L,F316,F316L,F304H,F316H,F317L,F321,F11,F22,91). |
|
| C.SIZE of RAW MATERIAL:DIA.19-85MM ROUND BAR. | |
| MARKING | A.CARBON and ALLOY STEEL:MARKED BY STAMPING. |
|
B.STAINLESS STEEL:MARKED BY ELECTRO-ETCHED,JET PRINTED or STAMPING. |
|
| C.3/8"UNDER:BRAND ONLY. | |
|
D.1/2"to 4":MARKED WITH BRAND,MATERIAL,HEAD CODE, B16(FOR ASME B16.11PRODUCT),RATING AND SIZE. |
|
| E:AS THE REQUIREMENT of CUSTOMER. | |
| PACING | IN WOODEN CASES or PALLETS,or AS PER CLIENTS’ REQUIREMENTS. |
| APPLICATION |
PETROLEUM,CHEMICAL,MACHINERY,ELECTRIC POWER,SHIPBULING, CONSTRUCTION,ECT. |
| Special design available as the requirement of customer | |
1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet,
Sage nipple, bull plug, reducer insert, pipe nipple etc.
2. Connection: Socket Welded, Threaded
3. Size Range: 1/8" - 4"(6mm - 100mm)
4. Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS
5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79 83 9597
2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).
3) Size of raw material: Dia. 19-85mm round bar.
6. Technology: Forged
7. Packing: Wooden cases or wooden pallet or as per customers requirement
8. Delivery Time: 15 days after order conformed
9. Payment: By T/T
10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding,
Papermaking, construction etc
ASTM A182 F316H forged steel sockolet pipe fitting
