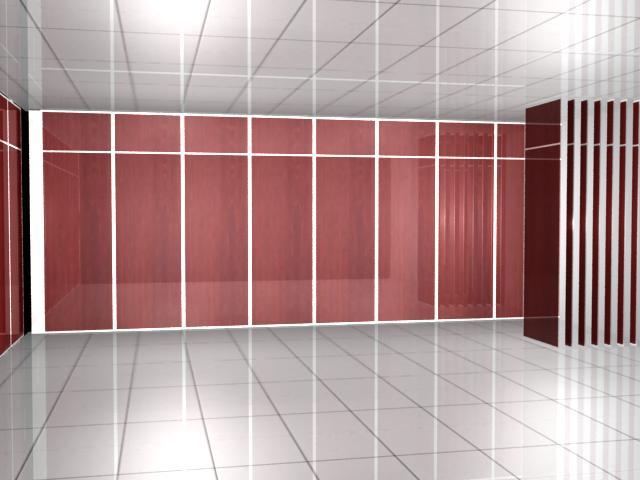

Office Decorative MDF Acoustic Partition Walls / Movable Partition Wall Systems
Office Decorative MDF Acoustic Partition Walls / Movable Partition Wall Systems
Specification:
1) Easy element adjustment after installation.
2) Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.
3) Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminium track.
Features:
- Top hung system without the need for a floor track
- Retractable top and bottom seals ensure effortless movement of panels
- Combines elegance with robust construction
- Concealed or exposed panel edge profiles
- Numerous panel stacking options for complete flexibility
- Sealed for life roller assemblies provide smooth and silent movement
- The system offers various levels of sound reduction
- Extensive range of surface finishes available
| Series | BG65 | BG80 / BG85 | BG100 & BG125 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Application:
1 studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2 theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3 meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4 air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
