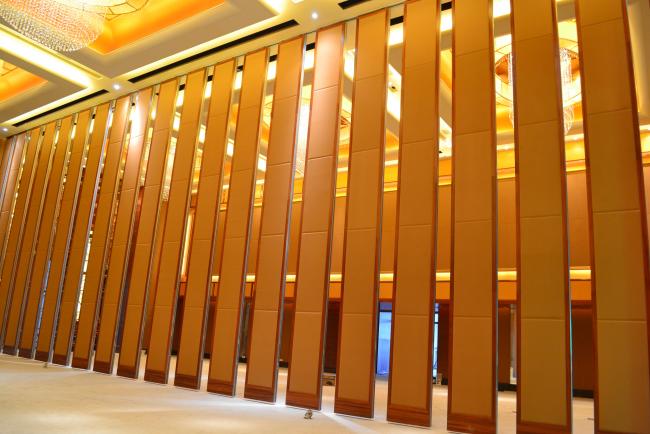

Movable Wood Folding Partition Walls For Conference Room Decoration
Office Decoration Movable Partition Wood Folding Partition Walls for Conference Room
Folding Partition Walls Usage
Each folding partition wall movable piece can be rotated 360 degrees which makes it flexible.
Furniture type folding partition walls increases the internal space of residential changes.
Folding partition walls not only can save office space, but also make a simple modern environment.
Traditional building partitions closer to functional requirements and tastes.
Modern building zone creates a rich and personalized interior space.
Bunge Folding Partition Walls Systems-Technical Information
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | ||
| Track system | Single or twin point | ||
| Panel thickness | 65mm | 80mm | 100mm |
| Panel height | Up to 3500mm | Up to 5200mm | Up to 17000mm |
| Max height | 3500mm | 5200mm | 17000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | ||
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire retardant | as request | ||
| Retractable seals | have | ||
| Adjustable panels | Manual, with supplied operating handle | ||
| Pass doors | Single door or double door as request | ||
| Sound insulation | 32dB | 40dB | 50dB |
| Weight | Approx 22-35kg/sqm | Approx 25-40kg/sqm | Approx30-48kg/sqm |
| Finish Material |
Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
||
Folding Partition Walls Advantages
1) Good performance of sound insulation, thermal insulation and Fire prevention.
2) Save much space for your building.
3) No tracks on the floor, it’s easy to install and remove.
4) Beautiful appearance, it is widely used in many spaces, such as meeting room, dining hall, exhibition
hall, Function room and office.
5) Aluminum or steel top hung system.
6) Retractable top and bottom seals ensure effortless movement of panels and sound-proof.
7) Concealed or exposed panel edge profiles.
8) Sealed for life roller assemblies provide smooth and silent movement.
9) Several levels of sound reduction.
10) Extensive range of surface finishes available.
Folding Partition Walls FAQ
What you should do on site?
A beam(truss) should built on site for track installation.The min distance leaving for track installation from false ceiling to top ceiling is 200mm.
How to install?
We will provide the installation manual and video guiding the installation job. We can also dispatch the installation engineer supervising the installation as request.
What is lead time?
The lead time is 7 days to 10 days.
How to transport?
Sea transport is a common mode of transportation. In an emergency, can be air freight.
How do the goods packing?
corrugating paper packaging, MDF batten cover all around corner.
The folding partition wall panels and track, fittings will be packed separately.
What is Procurement procedure?
Firstly, send us the shop drawings(if the shop drawings is not available, you can tell us the height from false ceiling to finished floor and width from wall to wall).
Secondly, we offer you the movable wall layout drawings for your confirmation.
Thirdly, we quote the movable wall in accordance with confirmed drawings.
What is finishing face?
The bottom panel is MDF or plywood, which is unfinished face. You can do decoration on site, such as wallpaper, paint, etc.
We can also provide the product with finished face, such as faux wood, Woven fabric and Leather.
