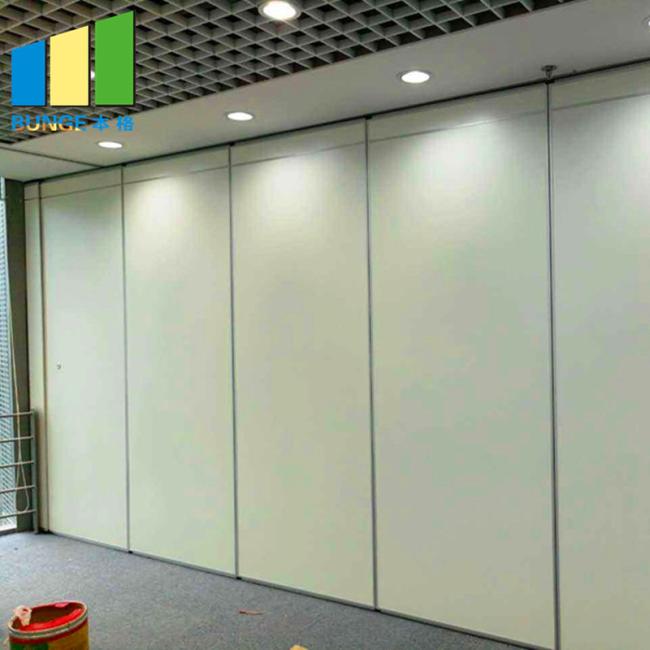

Sliding wall dividers description
The BUNGE sliding wall divider is aluminum-framed operable partition is the most versatile operable wall constructed today. Sliding wall dividers are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.
Sliding wall dividers system are 2-1/4”tongue-and-groove unitized panel system. Panels are 24” wide, precision laminated, and pre-finished with vinyl, fabric or other specified finish. Panels are manufactured at various heights up to 59’. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.
The BUNGE sliding wall divider is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.
Technical Information
| Model | 65 sliding wall dividers |
85 sliding wall dividers |
100 sliding wall dividers |
Ultra-high system sliding wall dividers |
| Panel Thickness | 65 MM | 85 MM | 100mm | 100mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm | 680mm-1230mm | 680mm-1230mm |
| Panel Height | 2000mm-4500mm | 3000mm-6500mm | 5000mm-8500mm | 7000mm-17000mm |
| Frame | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium | 6063 T6 Aluminium |
|
Acoustic alreduction coefficient(db) |
32db | 45db | 60db | 60db |
|
Hermetic flex distance(mm) |
45mm | 45mm | 45mm | 60mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 | 40,45,48,55 | 60,60,60,60 |
| Faceplate Material |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board ,Gypsum board, Color steel plate, Fiberboard, Tempered glass |
Class-fibr board, Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard, Tempered glass |
| Panel Surface Finish |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or surface treatment |
Anodizing, electrophoresis, Powder coating; Wooden grain or customize surface treatment |
Sliding wall dividers features
1) Thickness panel:65 mm,85 mm,100 mm, height from 2 meters to 17 meters.
2) Top supported without floor track or guide.
3) Clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4) Rock wool infill,with top and bottom retractable mechanism in the middle and mdf,plywood or plaster base board on both side.
5) Sound insulation coefficien :STC 32db to 53 db, ASTM standard of acoustic tested in HongKong.
6) Available in wide range of finishes.
7) Fast delivery and Rich experiences in oversea project installation guide & supervision.
