500 Width Sound Proof Partitions Folding MDF Partition Moving Wall With Aluminum Frame
Sound proof partitions folding MDF partition moving wall with aluminum frame
Specification:

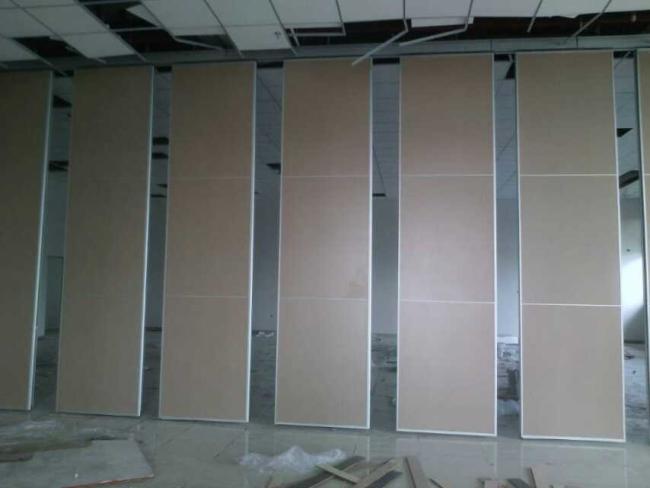

The acoustic room dividers are a new way to divide spaces with elegance, while respecting the architectural environment in which they are inserted.
They are composed of multiple individual elements, which flow along a horizontal guide attached to the ceiling, assembled one after another completing the entire wall. It is not necessary any guidance on the floor, handling the elements is simple, fast and safe.
The advantage of an acoustic room divider is essentially to occupy reduced space when it is stored, and when the wall is composed of all its elements.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with double rubber seals |
Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or double open in two panel |
Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) | ||
Feature:
Operable top and bottom seals for effortless operation.
Isolated aluminium frame construction for enhanced acoustics.
High performance multiple in fill's for maximum sound attenuation.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
No floor track ensuring obstruction free threshold.
Three panel sizes to accommodate a wide range of acoustic requirements .
Acoustic room divider operation:
All operations should be gentle and should pay attention to safety. Facing the screen station, use both hands to grab the screen and pull the screen in the direction of the rails; turn the screen in the direction of the rails.
After pushing the screen to its place, fix the screen. Tip: When pushing the screen to the intersection, you should pay attention to the direction of the rail, and then gently push the screen along the rail to the position where it should be placed.
