2.0-3.5mm Galvanized Steel 100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker For Building Structure
2.0-3.0mm Galvanized Steel CZ100-500mm Width Adjustable CZ Purlin Roll Forming Machine With Auto Stacker
1.CZ100-500mm width adjustable CZ Purlin Roll Forming Machine Technical Parameter
| 1 | Suitable to process | Galvanized steel,Carbon steel |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 2.0-3.5 mm |
| 4 | De-coiler | 5 tons hydraulic decoiler |
| 5 | Rollers for forming | About 24 rollers |
| 6 | Diameter of the roller | Φ75mm |
| 7 | Rolling material | High Grade Steel 45# |
| 8 | Main motor power | 22KW |
| 9 | Productivity | About 0-12m/min |
| 10 | Cutting method | Stop to cutting |
| 11 | Material of the cutting blade | Cr12Mov |
| 12 | Hydraulic cutting power | 7.5kw |
| 13 | Processing precision | +/-1.50mm |
| 14 | Control system | PLC control |
| 15 | Main structure of the machine | 350 H steel |
| 16 | Weight | About 20 T |
| 17 | Voltage | 220V 60Hz 3phases,or according to your request |
2. CZ100-500mm Purlin Machine’s Components
| Item | Components Name | Quantity |
| 1 | 5 tons hydraulic decoiler | 1 set |
| 2 | Pre-punching dies | About 3 sets |
| 3 | Pre-cutting device | 1 set |
| 4 | Main roll forming machine | 1 set |
| 5 | Hydraulic station | 1 set |
| 6 | PLC control box | 1 set |

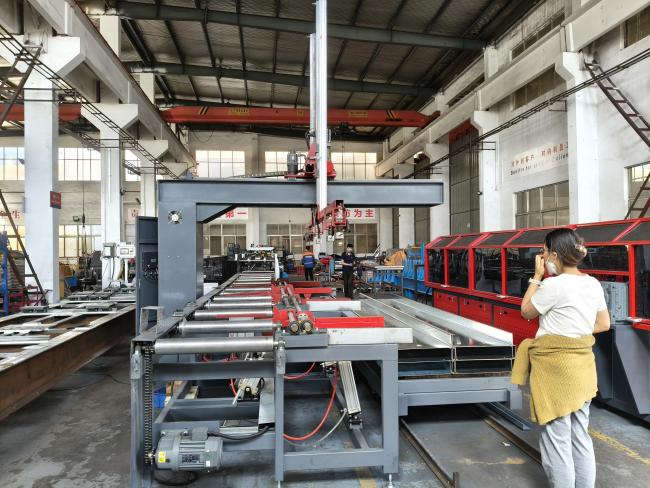

| 7 | Auto stacker | 1 set |
3. CZ100-500mm Purlin Profile Samples
4.Appliction:
Commercial & Industrial Buildings: Used to bear the weight of roof sheeting (like metal deck) and connect seamlessly to the structural steel frame (rafters and columns).
Lightweight Efficiency: The cold-rolled design gives it a high strength-to-weight ratio, reducing the dead weight on the primary structural frame.
Customizability: The "100-300" range indicates the machine's ability to easily produce varying profiles, allowing structural engineers to specify the exact dimensions needed for specific wind, snow, and dead load limits.
Welcome to consult more details about it !
