4 Ports Gigabit EPON ONU 1 Power Switch ZTE Chipset Compatible For Huawei
4 Ports Gigabit EPON ONU WIFI 1 Power Switch ZTE Chipset Compatible For Huawei
Product Description
Technical Specifications
| Technical items | Descriptions | ||
|---|---|---|---|
| Upstream PON interface | 1 GPON interface, SC single-mode/single-fiber, uplink 1.25Gbps, downlink 2.5Gbps | ||
| Wavelength | Tx 1310nm, Rx 1490nm | ||
| Data TX output | -1dBm to 4dBm @ 1310nm | ||
| Optical RX sensitivity | < -24dBm @ 1490nm | ||
| Optical interface | SC/PC | ||
| LAN4/3/2/1 port | RJ45Port connects to local internet,1 GE port and 3 FE port automatically | ||
| WLAN | Compliant with IEEE802.11b/g/n, 2T2R, internal antenna | ||
| Indicators | 13 indicators. For status of power supply, PON, LAN and POTS. | ||
| DC power supply | +12V, external AC-DC power adapter | ||
| Operating temp | -5 - +45℃ | ||
| Operating humidity | 10-90% (non-condensed) | ||
| Dimension (L*W*H) | 191mm*133mm*34mm | ||
| Net weight |
0.35Kg |
||
Most popular & high quality FTTH 1GE Ethernet ports GPON ONU for office use
customer's advantages
| Customer Interest Point | Product Advantages | Product Characteristics | |
|---|---|---|---|
| Wide range of applications | Well compatibility | ZTE chip, Interoperability software | |
| Satisfy most customer needs | Multifunctional integrated application | Integrated network with voice, Wifi function | |
| Popular& Suitable for family setting | Beauty | Compact & beautiful design | |
| Good thermal performance ,stable operation&lower repair rate | Good thermal performance | Ingenious heat dissipation hole design | |
| Satisfy customer and reduce their purchasing cost | Lower purchasing cost relative to 4 Gigabit interfaces | 4GE interface | |
Feature:
1.Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
2.Support rich QinQ VLAN function and IGMP snooping multicast featur
3.Integrated line testing compliant with GR-909 on POTS
4.Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
5.Support IEEE802.11n 2T2R WiFi function
Ethernet Service Functions:
1.Full speed non-blocking switching
2.Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc
3.Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
4.Support auto polarity detection of Ethernet ports (AUTO MDIX)
5.Integrated IEEE802.1p QoS with four level priority queues
6.Support IPv4 IGMP snooping and IPv6 MLD snooping
7.Support NAT and Firewall

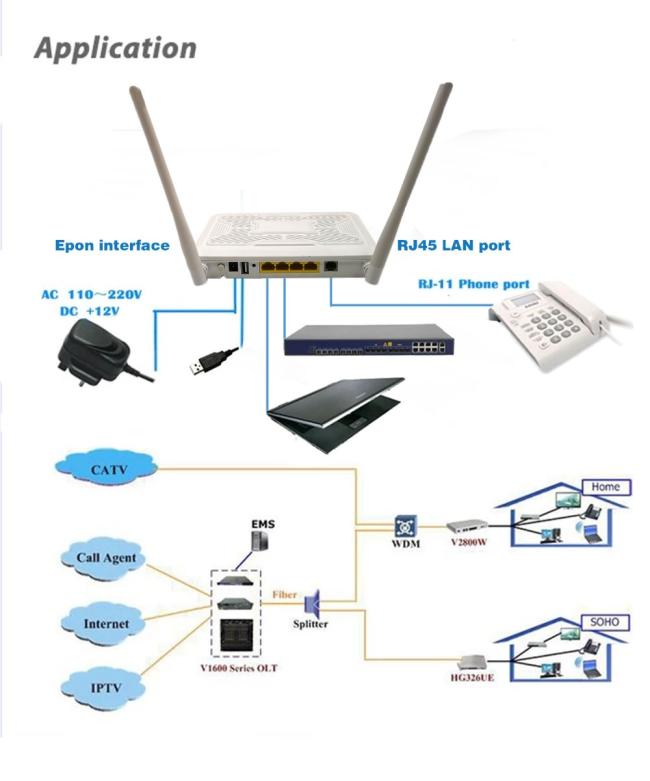

Application
