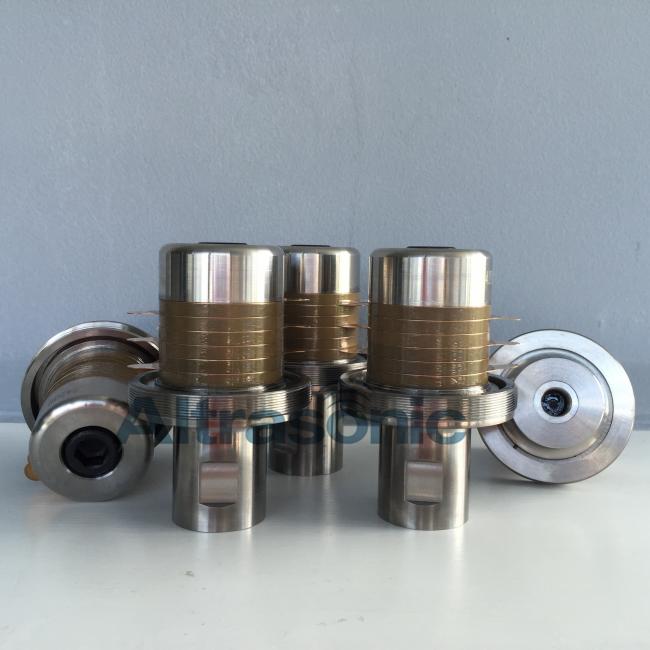

High Power 3000w Ultrasonic Welding or Sonochemistry Application Converter

Description:

The 20khz 3000watt Titanium Ultrasonic transducer for sonochemistry system , water treatment , homogenizing is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.

Specifications:

Competitive Advantage:

1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
