20kHz Ultrasonic Welding Transducer Replacement Dukane 41S30
Factory Direct Sale 20kHz Dukane 41S30 Ultrasonic Welding Transducer Replacement

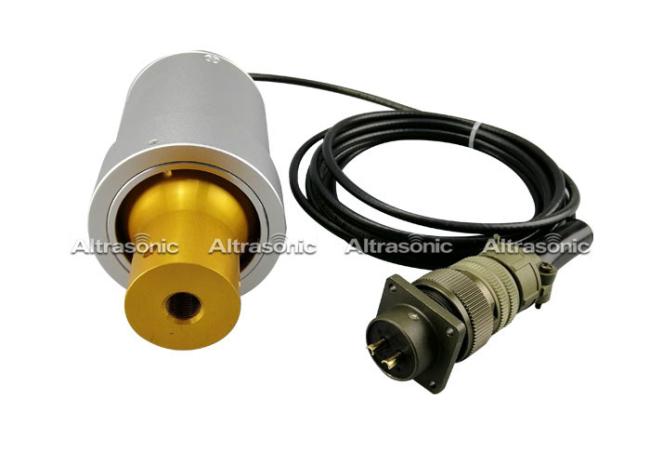

20kHz Dukane 41S30 Ultrasonic Welding Transducer Replacement
Specifications:
| Model | HSD41S30 |
| Frequency | 20Khz |
| Output power | 1000-3000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11nf |
| Amplitude | 20 um |
| Application | Plastic welding machine |
The 20kHz Dukane 41S30 Ultrasonic Welding Transducer Replacement is applied to Dukane type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Range:
Applied Industries :automobile industry, electric industry, medical industry, household appliance industry, non woven fabric
1. Low calorific value.
2. Good thermal stability.
3. The frequency is consistent with the static capacitance.
4. The resonance impedance is low.
5. Long average life.
6. Can be used in a variety of ultrasonic welding equipment and cleaning equipment
