Security Door Metal Detector Gate Foldable Walk Through Detectors For Electronic Factory


Features and Functions

• Multi-alarm sounds to choose
• Detection speed: more than 60 people pass and detect in 1 minute
• Adjustable sensitivity of each detection zone
• Query function: The system has real-time information query function

• Touch screen: 7-inch HDMI LCD touch screen,iPad interface style,easy to operate and understand

• Self diagnostic, it will inform the user when exit the system

• Start-stop technology:infrared devices with automatic

• Operating frequency can be adjusted manually or automatically
• Move after folded or installation(two move methods to choose)
• Detection technology: Even detection technology,no blind spot
• Internet technology:Remote upgrade system and remote control system
• Sensitivity of each detection zone:255level
• Statistics: Record the pass and alarm numbers

Specification

Detection objects: knives,guns,coins

External Dimension:2250x850x500mm

Passage Dimension: 2051x710x500mm

Fold Dimension:889x606x484mm

Packing Dimension: 1000x720x590mm

Humidity: 99%, non-condensing

Working environment: -20 ℃~85 ℃

Weight: NW 48KG, GW 53KG

Input : AC 110V~240V/50Hz~60Hz

Output : DC 12V/5A 12W

 Application

Airports and Seaports,,Electronic Factory,Government Buildings,Embassy,Police office,Court,Prisons and jails,Military Bases,Hospitals,Banks,Financial Institutions,Colleges and Schools

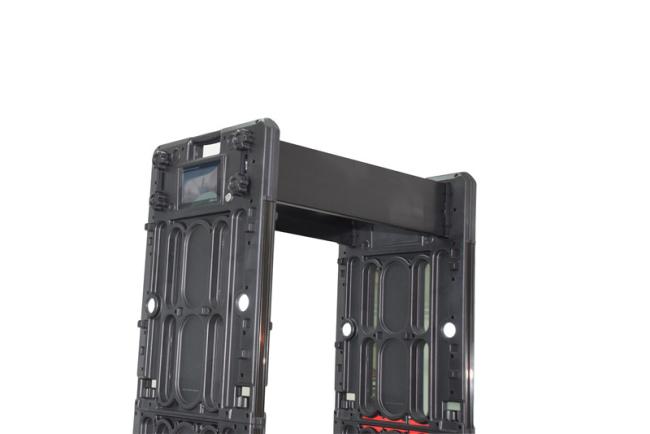

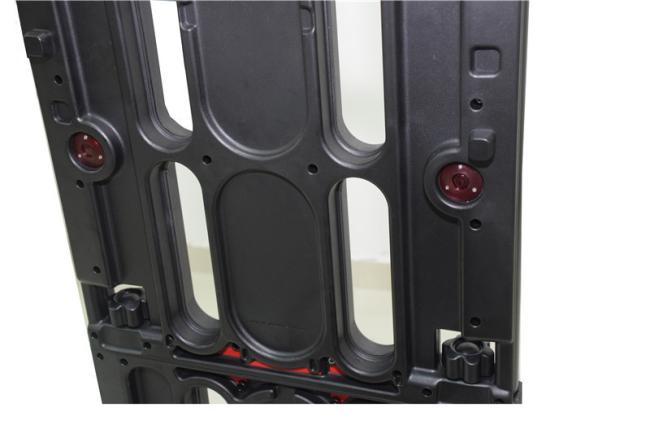

Product detail

Product packing

Fold Dimension :889x606x484mm

Packing Dimension:1000x720x590mm

Volume:0.42m3

NW:48KG

GW:53KG

Our advantages

• Brands cooperation,ODM,OEM
• Sales of a complete set of technical solutions
• Technical guidance and training for customers
• Product design, technology development, parts processing and sales integration services
• Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
• One of the world's top four brands, leading technology, quality first, service first-class
