Self Diagnostic APP Control IP65 Waterproof Portable Folding Metal Detector Gate

Arsenal-600T.Plus

600T.PLUS Portable walk trough metal detector adopt advanced techniques ,with a number of patents and certificates on material, the appearance, technology and structure .

It is a lightweight ,high-performance walk through scanner with high sensitivity ,portable,waterproof ect features,One operator can transport it easily to any locations and finish installation within 5mins , Ideal for security checks at stadiums, conferences, schools and other events. The unit is easy to operate and settings are self explaining. .

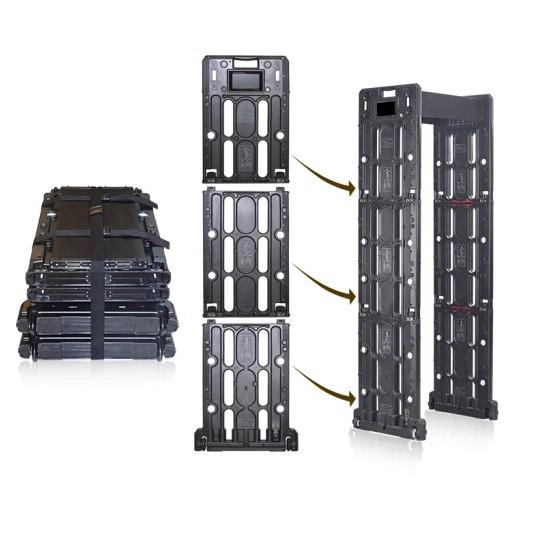

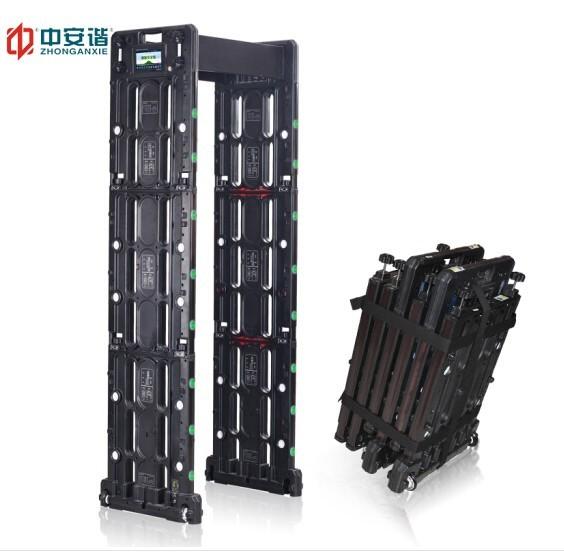

The gate adopt an electromagnetic field to detect metal objects through sound & light alarm, consisting of the host , the high-frequency signal generator, signal receiver , infrared sensors and other components , with super metal detection function, the unique internet remote control management system, and can be taken apart to 8 components, It is easy for you to carry and transport .

Advanced Technology

1.Multi-zone technology: 24,33 detection zones,can change detection zones intelligently (upgrade technology of each zone can be provided).

2.Touch screen: 7-inch HDMI LCD touch screen,iPad interface style,easy to operate and understand.

3.Mobile connection technology: realize mobile APP remote control

4. IP Grade: IP65 superior waterproof performance(optional)

5．Self calibration once power on

6．Self diagnostic, it will inform the user when exit the system

7．Start-stop technology:infrared devices with automatic

Technical Parameters

● Detection objects: knives,guns,coins

● External Dimension:2250x850x500mm

● Passage Dimension: 2051x710x500mm

● Fold Dimension:889x606x484mm

● Packing Dimension: 1000x720x590mm

● Humidity: 99%, non-condensing

● Working environment: -20 ℃~65 ℃

● Weight: NW 48KG, GW 53KG

● Input : AC 110V~240V/50Hz~60Hz

● Output : DC 12V/5A 12W

● Power supply: the whole system is equipped with polymer battery,life time 8,16,24,48,72 hours (optional).

Company Information

Zhonganxie Technology Co., Ltd. , the only technical cooperation company in the mainland is a Hong Kong Group operates United States ARSENAL, located in China 's reform and opening special economic zone city - Shenzhen, Zhonganxie is committed to the introduction of ARSENAL security brand and its technology , the secondary development, production , sales and service of high-tech enterprises.

Zhonganxie Technology Co., Ltd mainly in the research, production : metal detectors , X-ray baggage security screening equipment , drugs and explosives detectors , fireworks detectors, vehicle visual search and other security equipments.Security products includ doors, hazardous liquid detector, underground metal detectors, hand-held metal detectors, needle machine, food and drug detection instrument, baggage screening machines, vehicle bottom inspection mirrors and so on. There is one of the four American security brands in the world, USA Arsenal Security Group ,to be technical support ,Zhonganxie Technology has always stood in the forefront of Chinese security manufacturing industry and become the market leader !

Our service:

Professional reply for your question in time before-sales during Monday to Friday in 24 hours

All of our product already get passing the aging test to ensure reliability quality

Quality inspection department will check the machine again before packing.

Remote control the machine for diagnosing

Technic support by video and telephone

Our advantages

1.Brands cooperation,ODM,OEM

2.Sales of a complete set of technical solutions

3.Technical guidance and training for customers

4.Product design, technology development, parts processing and sales integration services

5.One of the world's top four brands, leading technology, quality first, service first-class

6.Our security eqipments have Advanced functions, beautiful appearance,adapt to market's need
