12VDC IP65 5W Door Frame Thermal Detector 32" Screen

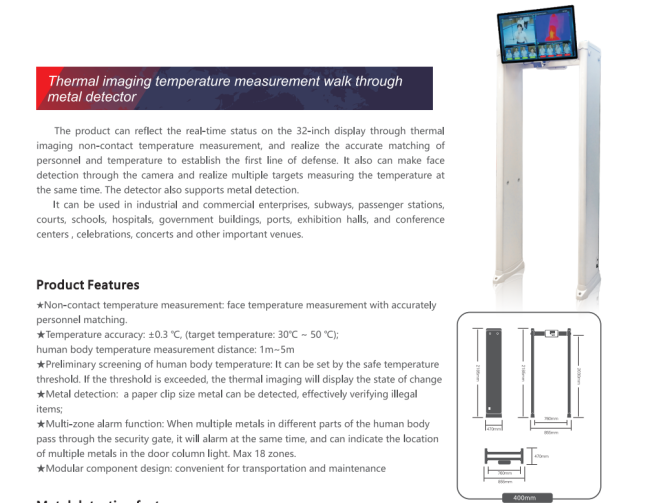

Thermal temperature measuring walk through metal detector with 32 inch screen
Selling Points:
1. 32 In big display
2. 12 zones detection
3. Support thermal imaging temperatrue measurement
4. Support walk through metal detector
5. Dual Camera.
6. Measurement Distance:1-5M
7. 2 million pixels
|
Model Spec |
||
| Dual Thermal& Optical Image Cameras | ||
| Thermal module spec | Thermal sensor | VOx Uncooled Focal Plane Arrays |
| resolution | 256x192,Pixel size 12μm | |
| lens | Focal length: 6mm, field of view: 35° (horizontal) | |
| accuracy | ±0.3℃, temperature range 35℃~38℃ | |
| distance | 1m-5m | |
| Black body | Support | |
| Optical module spec | Image sensor | 1/2.8” 2.0M Pixel Progressive Scan CMOS |
| Min illumination | 0.005Lux@F1.2(color), 0.001Lux@F1.2(B/W) | |
| WDR | ≥80dB | |
| ≥46dB(AGC OFF) | ||
| Focal length | 4mm | |
| Field of view | 84°*45°(H x V) | |
| AI | Face snapshot | Build-in deep learning AI algorithm, support simultaneous detection of 20-30 faces,Face detection, exposure, scoring, filter, snapshot upload |
| Abnormal alarm | Abnormal temperature alarm (The default threshold is 37.3℃) | |
| Network protocol | Support RTSP,RTP,TCP,UDP,UPNP,DHCP,PPPoE,ONVIF,GB/T 28181 | |
| Interface | HDMI output | 1ch |
| SD card slot | Support | |
| RS485 | Support | |
| Power | DC power interface | |
| Network | 1ch 10/100BaseT Ethernet, RJ45 interface | |
| General | Temperature | -20℃～55℃ |
| Humidity | 0%-90% RH(No condensation) | |
| Waterproof | IP65 | |
| Power | 12V DC | |
| consumption | ≤5W(excluding heating) | |
| Dimension | 80mm*42mm*49mm | |
| Weight | ＜1kg | |

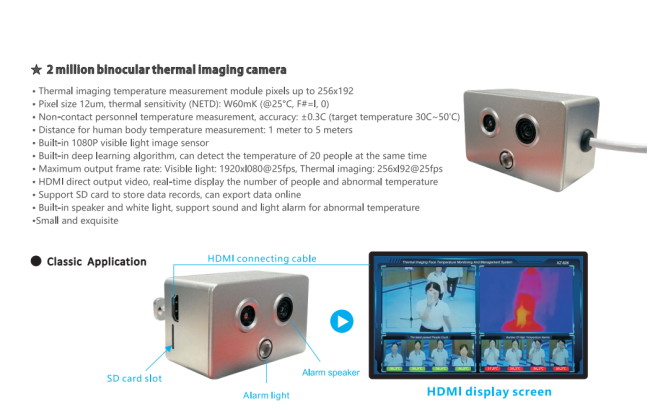

Features:
- High sensitivity thermal module with 256x192 resolution.
- Pixel size 12μm, NETD≤60mK(@25℃,F#=1.0)
- Non-contact temperature measure, accuracy is ±0.3℃(temperature range from 30℃~50℃)
- Multi-person measurements up to 1m-5m
- Embedded 2MP HD Optical module
- Embedded AI algorithm for 20 people temperature measurements simultaneous
- Max output frame rate:
Optical image: 1920x1080@25fps
Thermal image: 256x192@25fps
- HDMI direct output preview video, real-time display of the number and temperature of passers-by
- Support SD card storage, Data can be exported
- Small and smart, can be used in security door and advertising machines
Application scenarios:
It can be widely installed in security doors or advertising machines and other machines for body temperature measurement.
Packaging Size:
Walk through metal detector :
Carton box: 2270*700*230cm
G.W:48KG
Volume:0.37m³
Thermal Camera With 32 Inch Screen
Carton box : 82CM*19CM*57cm
G.W: 8.5KG
Volume:0.09m³
Delivery Time:
5-8 Days
