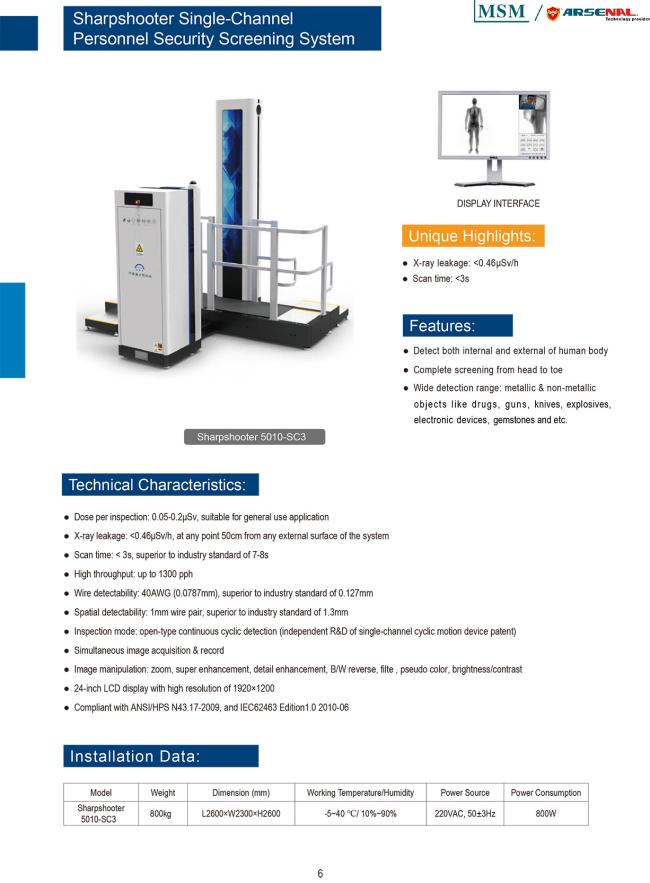

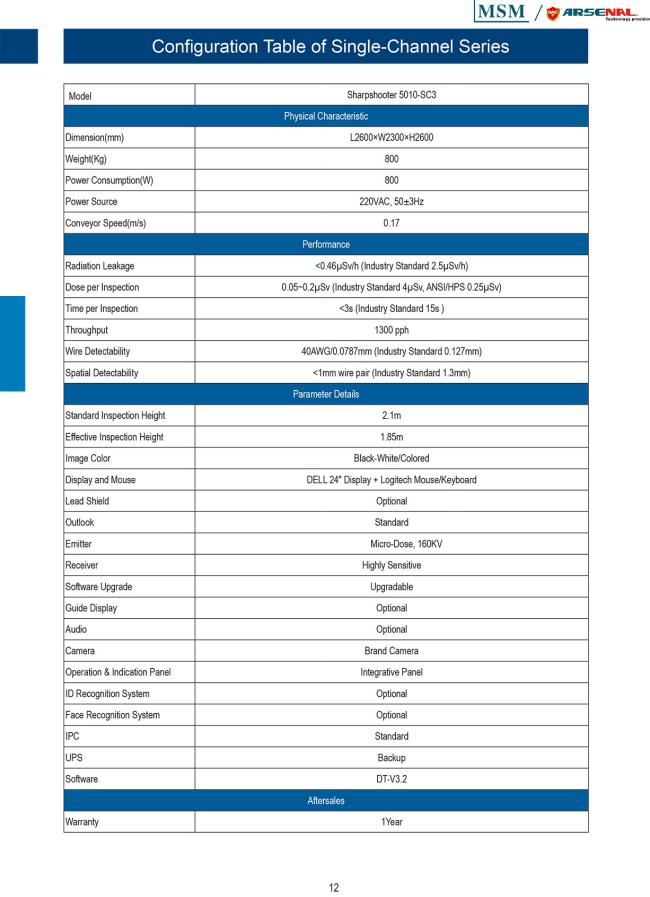

● Dose per inspection: 0.05-0.2μSv, suitable for general use application

● X-ray leakage: <0.46μSv/h, at any point 50cm from any external surface of the system

● Scan time: < 3s, superior to industry standard of 7-8s

● High throughput: up to 1300 pph

● Wire detectability: 40AWG (0.0787mm), superior to industry standard of 0.127mm

● Spatial detectability: 1mm wire pair, superior to industry standard of 1.3mm

● Inspection mode: open-type continuous cyclic detection (independent R&D of single-channel cyclic motion device patent)

● Simultaneous image acquisition & record

● Image manipulation: zoom, super enhancement, detail enhancement, B/W reverse, filte , pseudo color, brightness/contrast

● 24-inch LCD display with high resolution of 1920×1200

● Compliant with ANSI/HPS N43.17-2009, and IEC62463 Edition1.0 2010-06
