Ordinary Type Hydraulic Cable Reel Stand
Cable reel stand is used to lift, support and stabilise low and high voltage cable drums to enable efficient cable laying and pulling for low and high voltage cables.
It is applicable to the placement of the cable tray,hydraulic lifting,carrying the weight of a large.
The bottom with small wheels,easy to move,can be equipped with a braking device,using the foot brake.

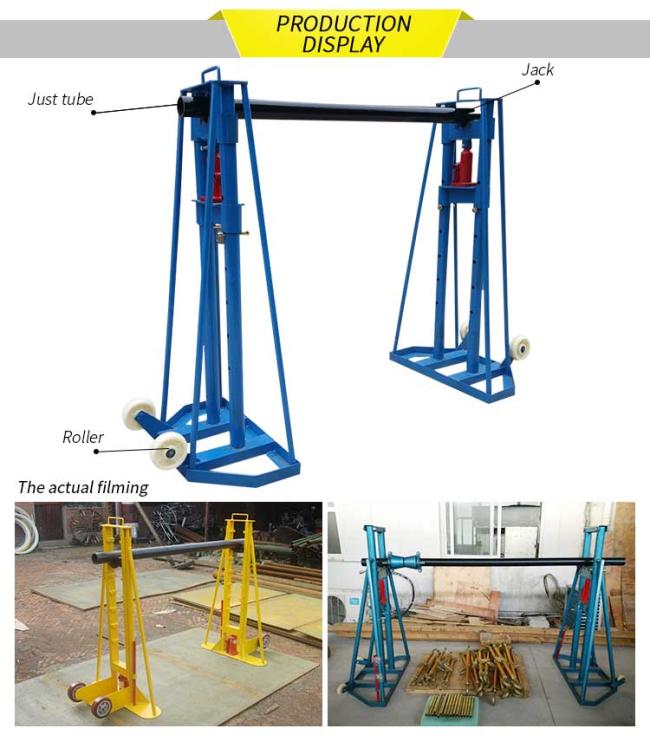

Product Display

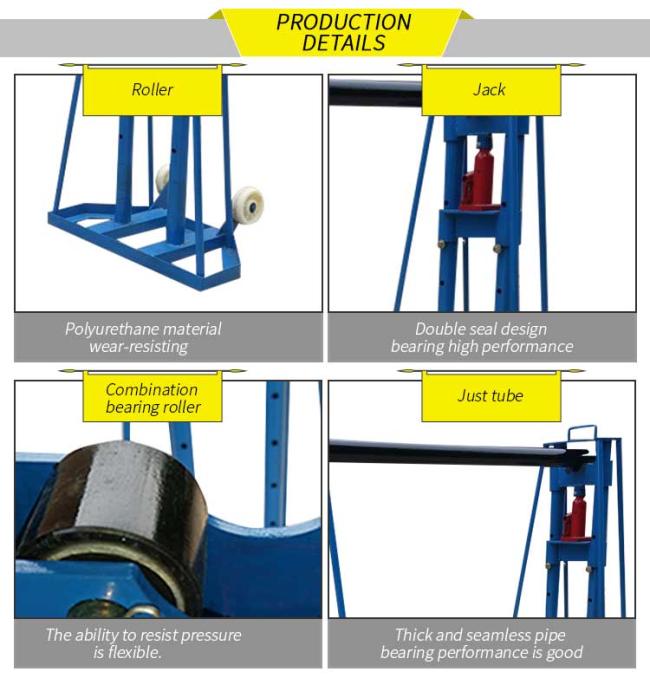

Product Details
Cable reel stand is almost indispensable for use in the cable yard. Versatile and easily adjustable within seconds to accommodate a vast range of drums. Excellent all round stability, fitted with wheels to be easily moved by one person. Supplied complete with spindle bar and locking collars.
Specification
Cable Reel Stand specifications as below:
|
Model |
Rated load |
Applicable wire disc |
Disc weight |
Weight |
|
SI-5 |
50KN |
≤Φ2400 |
≤5T |
20kg |
|
SI-10 |
100KN |
≤Φ2700 |
≤10T |
36kg |
|
SI-15 |
150KN |
≤Φ3600 |
≤15T |
36kg |
|
SI-20 |
200KN |
≤Φ4000 |
≤20T |
45kg |

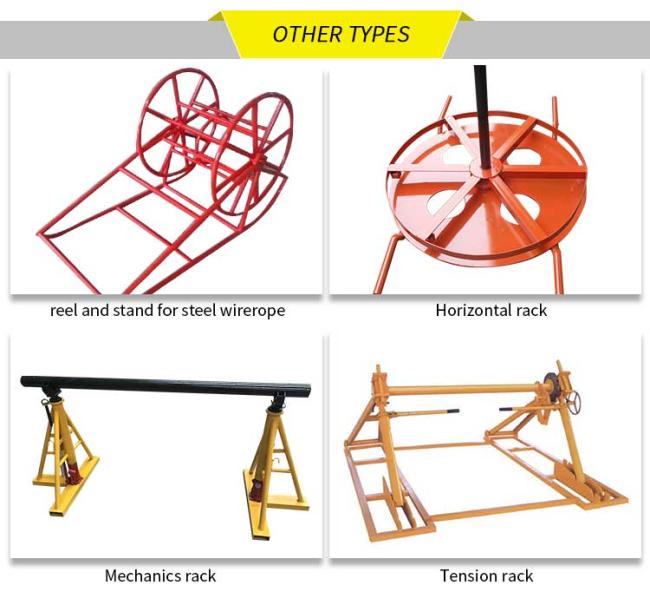

Related Product
Cable Reel Stand with different types

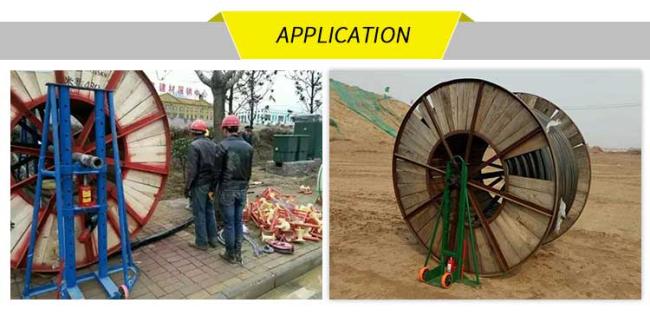

Application
Cable Reel Stand applied in the supporting of cable drum. With trapezoidal structure, it can be applied in different kinds of reel specification. Hydraulic lifting make it lift easily, trundles installed on the bottom make it easy to move, simple operation, secure and durable.
