Fuchuan 800 High Speed Copper Wire Double Twisting Stranding Bunching Machine
Price:
Negotiable
MOQ:
1set
Delivery Time:
45days
Brand:
FUCHUAN
Product Description
Basic Info.
Model NO.
FC-802C
Condition
New
Certification
FDA, RoHS, ISO, CE
Warranty
24 Months
Automatic Grade
Automatic
Mould Life
<300,000 Shots
Type
High-speed Stranding Machine
Bow
Carbon Fiber/Stainless Steel
Color
Customized
Etd
30days
Max Speed
1800rpm
Pay-off Speed
200m/Min
Power
15kw
Transport Package
Wooden Box
Specification
6000kg
Trademark
FCJD
Origin
Kunshan, China
HS Code
8479400000
Production Capacity
200 Sets Per Month
Product Description
high-performance bunching machine
Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects.
Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth
operation. Suitable for stranding conductors such as bare copper wire, tinned wire and aluminum alloy wire, which
are used in automotive wire, electronic wire and power cord.
Specification
Features
1.IoT access: Ethernet ports are reserved for loT access, which can display rotation speed, stranding specifications, wire speed, output, equipement maintenance, etc.
2. Carbon Fibre bow: Adopting high quality carbon fibre bow, single bow design, light weight, energy savingmore than 25%.
2. Carbon Fibre bow: Adopting high quality carbon fibre bow, single bow design, light weight, energy savingmore than 25%.
3. Electronic control pitch: can set the pitch value on the PLC panel.
4. Take-up tension control: AC frequency conversion motor drives take-up.
Technical Specifications
(Custom configurations available upon request.)
|
Model
|
FC-652D
|
FC-653D
|
FC-654D
|
FC-802C
|
FC-803C
|
|
Wire dia. (mm)
|
Φ0.12-0.45
|
Φ0.12-0.68
|
Φ0.12-0.68
|
Φ0.15-1.35
|
Φ0.15-1.35
|
|
Cross section (mm2 )
|
0.35-4.0
|
0.35-6.0
|
0.35-6.0
|
1.0-16.0
|
1.0-16.0
|
|
Pitch (mm)
|
10-100
|
10-100
|
6.5-75
|
20-160
|
20-160
|
|
Pitch adjusting method
|
PLC control
|
PLC control
|
Manual
|
PLC control
|
PLC control
|
|
Spool size(mm)
|
Φ500-630
|
Φ500-630
|
Φ500-630
|
Φ630-800
|
Φ630-800
|
|
Max speed (rpm)
|
2600
|
2600
|
2600
|
1800
|
1800
|
|
Total power
|
15KW
|
15KW
|
15KW
|
18.5KW
|
18.5KW
|
|
Stranding direction
|
S/Z
|
S/Z
|
S/Z
|
S/Z
|
S/Z
|
|
Overall Size(mm)
|
3650*2000*2200
|
4600*2100*2200
|
|||

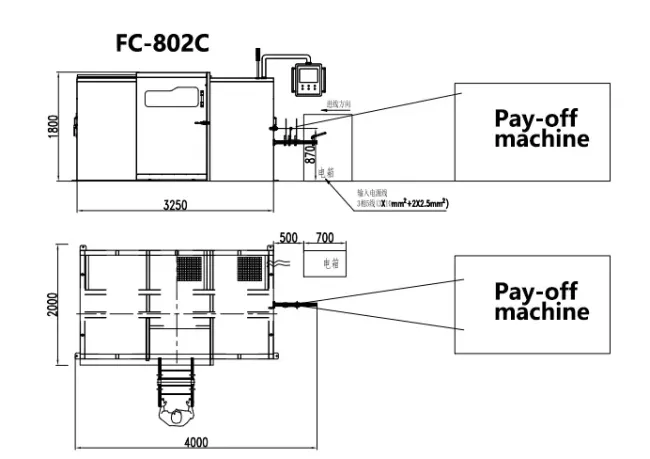

Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering
team can provide tailored designs to meet specific project requirements.
After Sales Service
Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

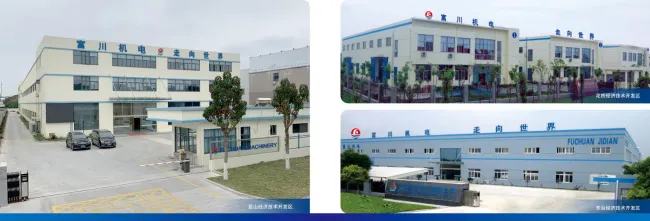

Company Profile
Kunshan Fuchuan Electrical & Mechanical Co., Ltd.
Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery
with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering
reliable machinery backed by R&D innovation and strict quality control.
Why Choose Us?
Other Products
OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions
Stranding machine
Back-twist bunching machine
Signle twist bunching machine
Signle twist bunching machine
Torsion-free cable-laying machine
Pay-off machine
Extruding machine
Rewinding machine
FAQ
Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 45–60 days.
A: Standard models ship in 15–30 days; customized units require 45–60 days.
Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.
Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.
A: Absolutely! We accept OEM and ODM.
Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
A: Contact us via email/phone for a quote, then confirm with a PO.
