China Edible Level 5 Ton Ice Tube Machine With Germany Compressor for sale

Edible Level 5 Ton Ice Tube Machine With Germany Compressor

Price Negotiable
Price: USD 9500~10000000
MOQ: 1 set
Delivery Time: 35 days after the deposit
Brand: CBFI
Product Description

Germany compressor easy control edible level 5 ton tube ice machine

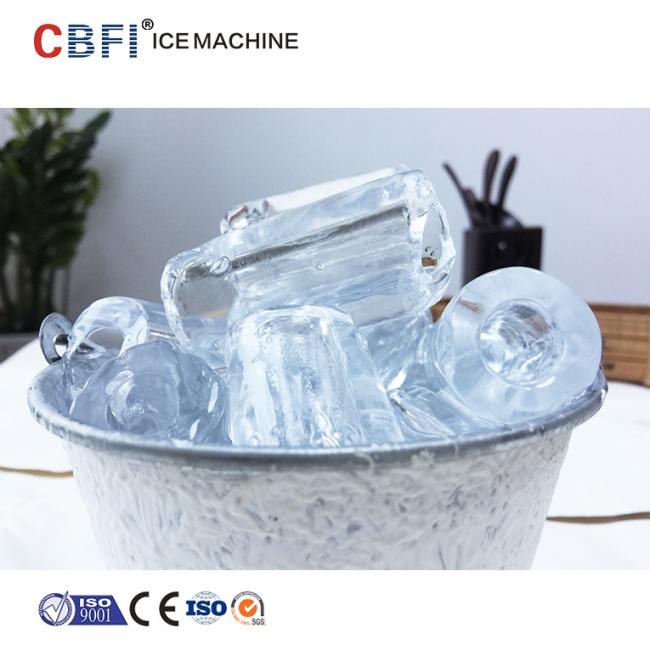

1. Crystal tube ice





2. CBFI tube ice machine pictures

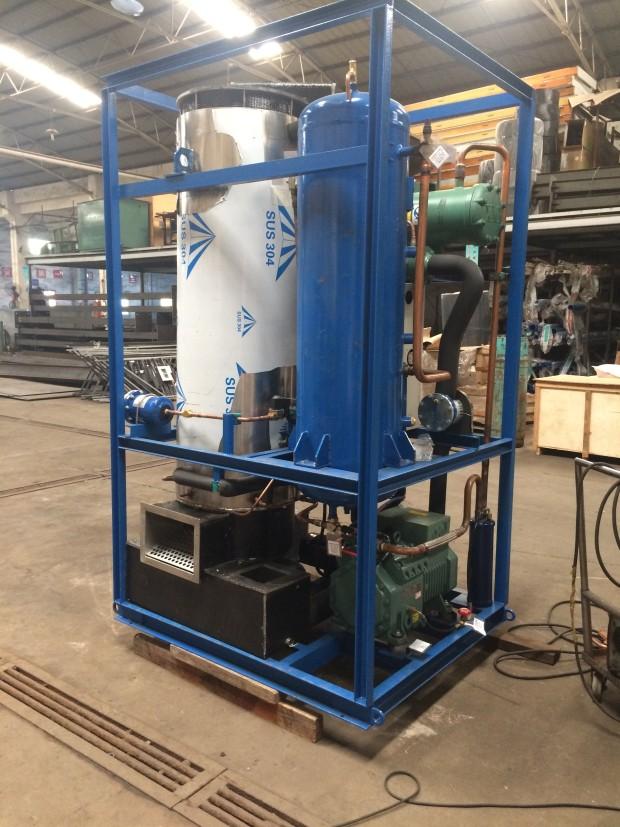

5 ton tube ice machine



5 ton tube ice machine in our factory



3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
 Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
 kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
 0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
 0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
 0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
 1.5
1600*1400*2250
1800

 TV100

    10.0
29.2
1.5
4
1.5
 1.5
1200*1200*3100

 2300*1550*1800
3500
TV150
15.0
49
2.2

5.5
1.5
 1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
 2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
 2.2
3000*2200*2500

 2200*1900*6200
7200


4. Application

tube-ice-machine-application

5. Tube Evaporator Features:
1.Adopting Stainless Steel 304 ensures totally clean tube ice.
2.The adoption of middle partition can avoid ice forming on the evaporator floor freezing and breaking down the ice cutter.
3.Using patent hydraulic expansion technique makes sure water freezing equally, which avoids ice dropping problem.

tube-ice-machine-304stainless-steel-evaporator





6. Customer cases

CBFI 30 ton tube ice machine in Indonesia



CBFI 30 ton tube ice machines in Malaysia
