Double Knife Synchro-fly Cutting Machine DFJ-1900S
Price:
Negotiable
MOQ:
ONE SET
Delivery Time:
45 WORK DAYS
Product Description
Dual Knife Synchro-fly Cutting Machine DFJ-1900S

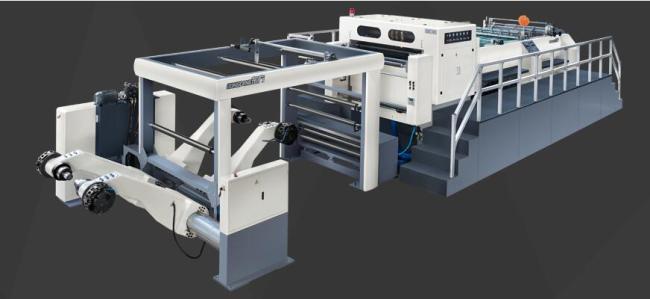

DFJ-1900S Double Knife Synchro-fly Cutting Machine
The machine adopts Double Knife Synchro-fly Cutting Method, so that the cut sheets have no deckle edge, no dust, and no inclination. And the machine is high precision, and can be connected to the printing machine directly.
Specification of Double Knife Synchro-fly Cutting Machine DFJ-1900S:
| Model | DFJ-1900S |
| Web Width Range | 400-1900MM |
| Max Unwinding Diameter | 1900MM(71") |
| Thickness Range of Paper | up to 1000gsm |
| Cutting Method | Dual Knife Synchro-fly cutting |
| Max Cutting Speed | 300cuts/min |
| Max linear Speed | 300M/Min |
| Cutting Length Range | 450-1600mm |
| Cutting Precision | ±0.2MM |
| Sheet Squareness | ±0.25MM |
| Slitting Format | 2 sheets |
| Max Piling Height | 1700MM |
| Request for Air Source | 0.8Mpa |
| Total Power | 45KW |
| Voltage | AC380V/220V, 50HZ |
| Gross Weight | 16T |
| Overall Dimension(LxWxH) | 13500X5300X2630MM |
