Portable Sawmills and Wood Processing Equipment Hydraulic
Price:
US $16,800 - 19,400 / Set
MOQ:
1 SET Hydraulic Portable Sawmill
Delivery Time:
within 30 days
Brand:
SH
Product Description
Product Description

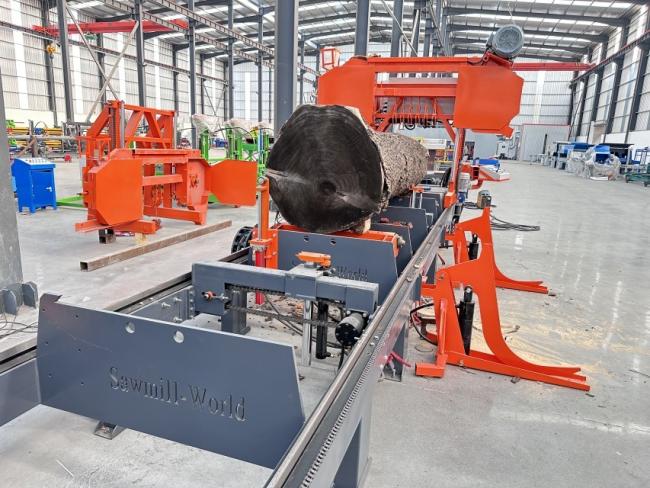

Hydraulic Portable Sawmill
Hydraulic loading arm for automatic loading log onto the rail bed

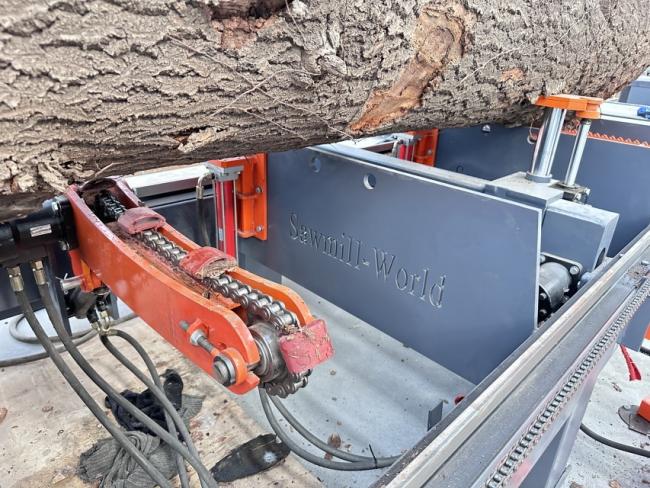

Hydraulic chain rotatiaon for automatically rotates the logs
Hydraulic log stop pole prevents wood from falling when loading or flipping
Automatic return hook pushes wood boards back when the saw head returns
The touch screen uses Taiwan Weinview technologyandthe PLC uses Taiwan FATEK technology,to guarantee quality
| Model | SW40E |
| Max Sawing Wood Diameter | 100mm(40") |
| Saw Wheel Diameter | 720mm |
| Max Sawing Wood Thickness | 300mm |
| Standard Sawing Wood Length | 22feet |
| Engine Power | 22KW Electric motor |
| Up/Down | Electric ,1.1kw |
| Forward/Backward | inverter ,1.1kw |
| Saw Blade Thickness | 60mm |
| Hydraulic Log Loading Arms | 1 |
| Hydraulic Rotation Clamping | 2 |
| legs | 8 |
| Setting sawn sizes | Touching screen+PLC |
| Hydraulic Chain Rotation | 1 |
| Hydraulic log stop pole | 4 |
| Hydraulic board moving roller | 1 |
| Hydraulic wood adjuster | 1 |
| Hydraulic pump station | 1set, 5.5kw |
| Machine Length | 9000mm |
| Weight | 2800kg |

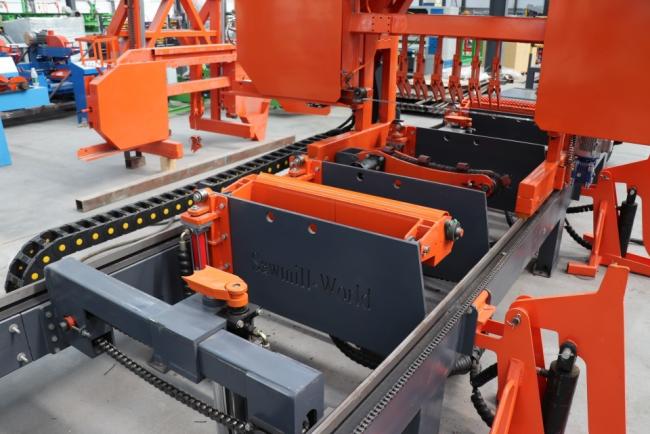

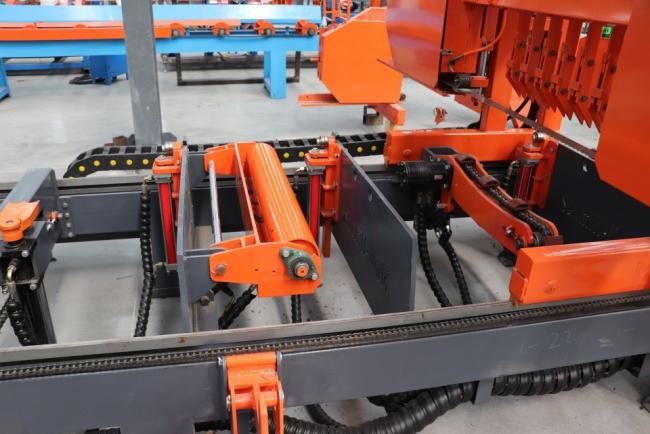

Detailed Images
Related Products
| Model | SW40P |
| Max Sawing Wood Diameter | 100mm(40") |
| Saw Wheel Diameter | 720mm |
| Max Sawing Wood Thickness | 300mm |
| Standard Sawing Wood Length | 6000mm |
| Engine Power | 35HP Petrol engine |
| Up/Down | Electric |
| Forward/Backward | inverter |
| Saw Blade Thickness | 60mm |
| Hydraulic Log Loading Arms | 1 |
| Hydraulic Rotation | 2 |
| legs | 8 |
| Setting sawn sizes | Touching screen+PLC |
| Hydraulic Chain Rotation | 1 |
| Hydraulic log stop pole | 4 |
| Hydraulic board moving roller | 1 |
| Hydraulic wood adjuster | 1 |
| Hydraulic pump station | 1 |
| Wheels for mobile usage | 1 |
| Machine Length | 8000mm |
| Weight | 2800kg |
