China MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm for sale

MJ3310 Vertical Band Sawmill with Automatic Log Carriage for log diameter 1000mm

Price Negotiable
Price: US $5,000 - 50,000 / Set
MOQ: 1 SET
Delivery Time: within 15 days
Brand: SH
Product Description

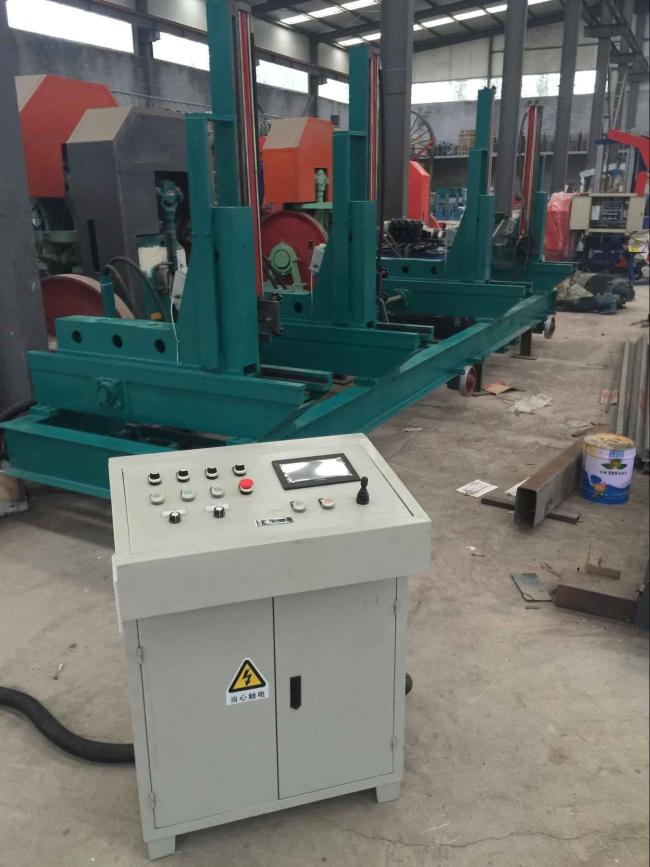

Vertical Band Sawmill With CNC Log Carriage

This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.

Technical data MJ3310-DD3000 MJ3310-DD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 6850x125x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Manual Manual
Carriage walking/advance Electric Electric
Setting sawn size Electric Electric
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs

Technical data MJ3310-ZD3000 MJ3310-ZD5000
Saw wheel diameter 1070mm 1070mm
Maximum sawing log diameter 1000mm 1000mm
Maximum sawing log length 4meters 6meters
Main motor 30KW 30KW
Saw blade L*W*T 7400x150x1.05mm 7400x150x1.05mm
Carriage clip stake quantity 3sets 4sets
Wood grasp mode Electric Electric
Carriage walking/advance Frequency converter Frequency converter
Setting sawn size PLC touching screen PLC touching screen
Carriage length 3meters 5meters
Rail length 10meters 18meters
Weight 4500kgs 6000kgs



Optional - Log turner

Optional - Log loading deck

Optional - Vertical band saw with Electrical or manual log carriage
