Conical shape galvanised steel posts , 9M Height galvanized fence pipe with Wood Packing
Hot Dip Galvanized Conical Steel Pole Metal Pole with Wood Packing
Specification
| Steel | Yield Strength(MPa) | standard | Standard Title | Metallic element | Content | |
| main ingredient Q355 | 355 for Thickness<=16 |
GB/T 1591-2008 |
High strength low alloy structural steels | C | ≤0.20 | |
| Mn | ≤1.70 | |||||
| Si | ≤0.50 | |||||
| Accessories Q235 | 235 |
GB/T 700-2006 |
Carbon structural steels | |||
| P | ≤0.035 | |||||
| S | ≤0.035 |
| Welding | Standard | Standard Title |
|
Pole shafts&multi-sided tubular |
AWS D1.1/D1.1M:2010 | Structural Welding Code-Steel |
| Welding wire | AWS D1.1/D1.1M:2010 | Structural Welding Code-Steel |
| Hot dip galvanizing | Standard | Steel thickness/mm | Mean coating thickness/μm | Metallic element | Content |
| Pole shafts,cross arms&bolted on accessories | ASTM A123/A123M-15 AS/NZS 4680 | >6 | 85 | Mn | 0.25%-0.40% |
| <3-6 | 70 | ||||
| 1.5-3 | 55 | Cu | <0.15% | ||
| <1.5 | 55 | ||||
| Bolts,nuts&washers |
GB/T 5267.3-2008 |
_____ | ≥ 54 | P | <0.025% |
| Foundation bolts | ASTM A153/A153M-09 | _____ | ≥ 54 | S | <0.03% |
Description
1. Our Poles are Non-Standard and normally design according to customer's request. And different specification poles with different price. On the other side, the price is according to each pole weight. The weighter the more expensive. So to save the cost, our factory has the professional technical team to design the practical poles and save the cost for our clients.
But to design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :
- Pole top design load
- Where is the position of the load , the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need.
Production Process
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM & UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough.
But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

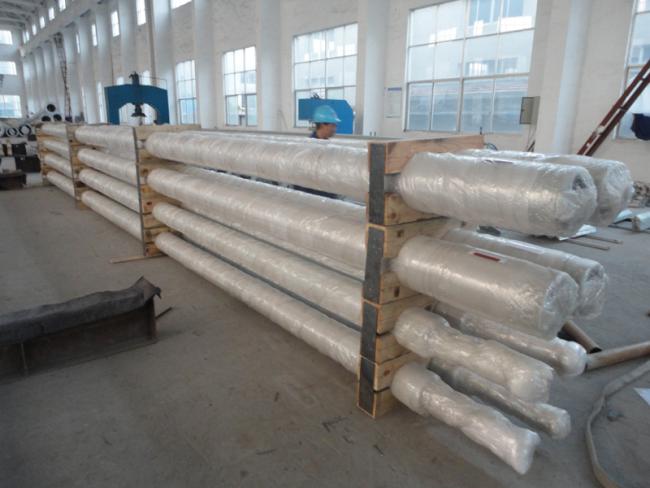

5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
