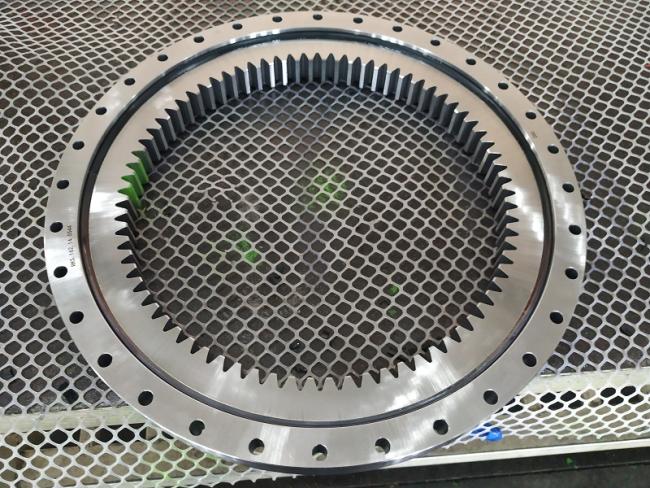

Slewing ball bearing teeth 585DBS164Y size 810*585*85mm

The bearing 585DBS164Y has size 810*585*85 mm lubricated are pre-greased in factory and can re-lubricated by grease holes. They are mainly use in construction and industrial chineries,such as drive shovels,crane vehicles,thus to simplify the machine’s structure and maintenance.

Structure:Four point contact ball slewing bearing
Bearing items: 585DBS164Y,585dbs164y
Bearing teeth: with internal teeth
Teeth shape:spur teeth
The bearing full size:810X585X85mm
The outer diameter:810mm
The inner diameter:585mm
The bearing width:85mm
Lubrication:Grease lubrication
No of teeth:75pcs
Press angle:20 degree
Modification coefficient:x=0.5
Material:4140 material ,42CrMo,50Mn
Teeth grade:AGMA 8 Grade
The delivery time:50 days
The bearing package:wooden case
The bearing shipping term:By sea by air available
