500KG Stainless Steel Plastic And Rubber Horizontal Ribbon Mixer Machine

Features:

1. Horizontal ribbon mixer is characterized by high mixing precision, and wide application to food, chemical

     industries, and building lines. The major sections of a mixer are barrel, ribbon agitators, feeding ports,

     discharging port and driven unit.

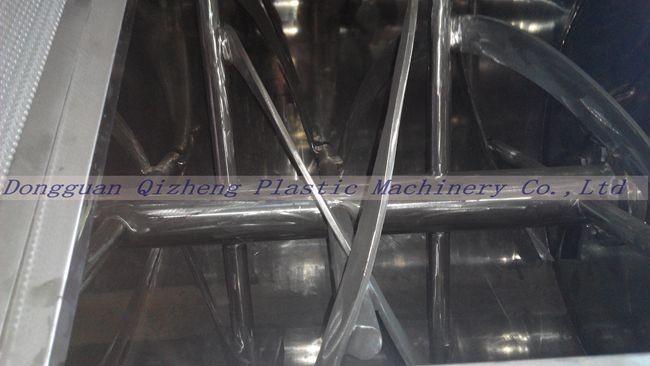

2. The Horizontal Ribbon Mixer consist of U-Shape tank, apiral and drive parts. The spiral is dual

    structure. Outer spiral make the material move from the sides to the center of the tank and the inner

    screw conveyor the material from the center to the sides to get the convective mixing.

3. The mixing tank body can be rolled over so that mixing more homogeneous and easy to clean.

4. Owing to the central axis with totally stainless steel, the mixer are durable and with good

    homogenization.

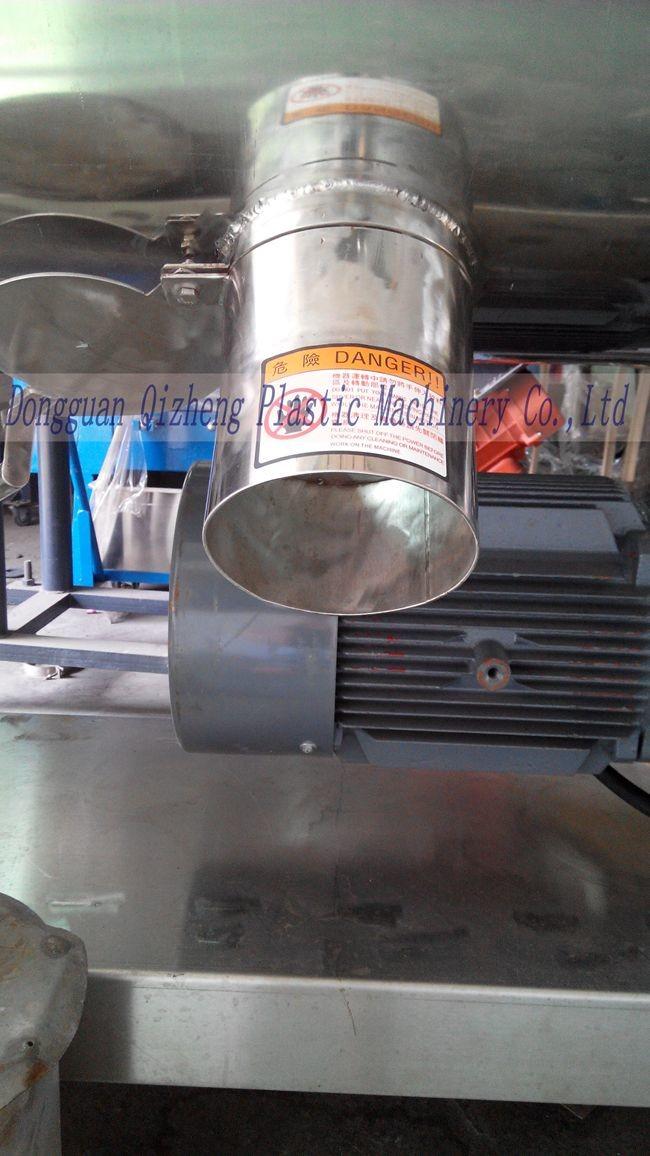

5. Motor and reducer are from famous factory. Large output and stable performance.

6. Mixing and drying are two in one. It can be used for mixing and homogenizing even though closing the

    heating/drying function.

Selection way:

1. Choose the batch working volume from 0.2cbm to 10cbm, select mixer accordingly.
2. Choose raw material for the part contact with raw material, non-contact with raw material. According to

    the material to be mixed, processing condition, health level, raw material can be chosen from carbon

    steel,sus 201, sus304, sus316L; And choose the surface treatment according to the raw material.
3. Motor power is chosen according to the material gravity, fluidity, and operation.
4. Chose discharging and driven mode: manual, air operated or electric.

Note: mixer selection is a very important step, your detailed material information, processing and factory arrangement is very helpful to get professional technical support from us.

Specifications Parameters:
